Thermal Mass Flow Meter

China Factory Direct Pricing

thermal mass flow meters CHINA FACTORY

✅ Looking for a Reliable, Cost-Effective Thermal Mass Flow Meter?

Silver Automation Instruments brings you high-performance thermal mass flow meters, designed and manufactured in China with over 20 years of experience. Whether you're measuring air, N2, biogas, LPG or natural gas, our flow meters deliver accurate, stable performance — at factory-direct pricing.

Why Choose Our Thermal Gas Flow Meters?

  • 20+ years of manufacturing expertise
  • Made in China, trusted worldwide
  • High precision: ±1% reading accuracy
  • Excellent repeatability: ±0.5% of full range
  • Wide turndown ratio up to 100:1
  • Measures clean or mixed gases — even with dust or moisture

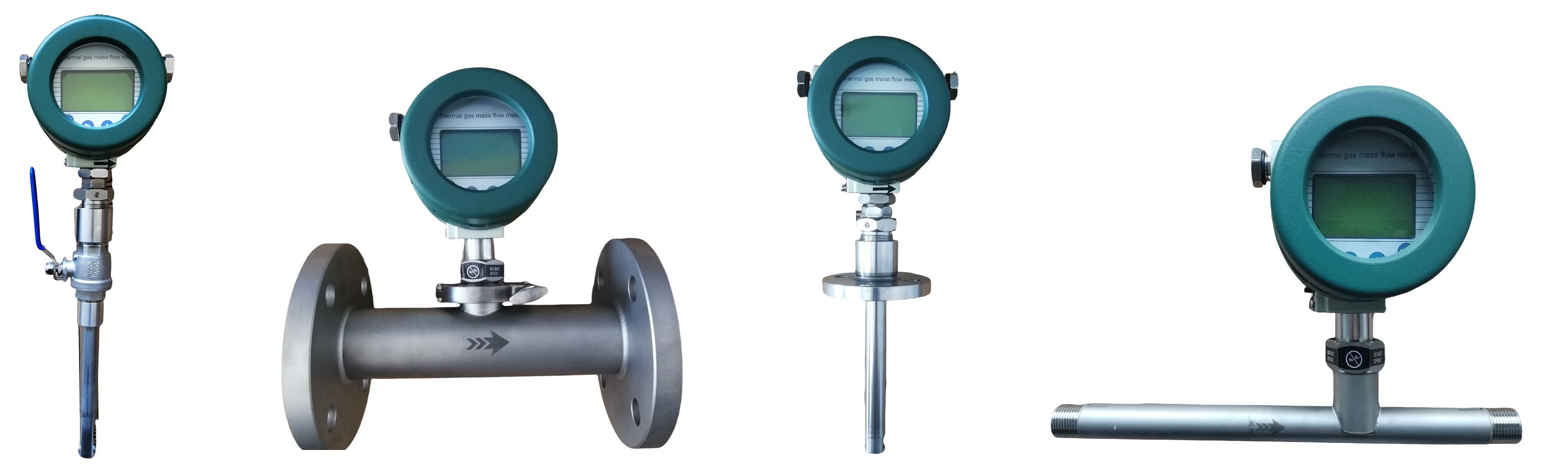

  • Plug-in or in-line type, remote or integral options
  • Durable construction: 316 SST, Hastelloy, or Titanium

Technical Specifications

Parameter Details
Accuracy ±1% reading; ±0.5% full range
Repeatability ±0.5% of full range
Turn down ratio Up to 100:1
Flow Range 0.05 ~ 80 Nm/s (air, 20℃, 101.33kPa)
Size Ø6 ~ Ø6000 (thermal dispersion type)
Pressure Rating Vacuum to 3.0MPa
Gas Temperature Range -20℃ to 300℃
Compatible Media Pure gases, mixed gases, dusty/corrosive gases
Sensor Diameter Ø3mm (standard), Ø4mm
Materials 316SST, Hastelloy, Titanium
Output Signals 4-20mA, RS485, HART,relay alarms
Display LED, flow rate + totalizer
Mounting In-line or insertion
Power Supply 24VDC/400mA or 220VAC/2W
Explosion Proof ATEX Approved mass flow meter
Flow Unit  Nm3/h, NLPM, kg/h, kg/min,t/h, SCFM,mmscfd....

Typical Applications

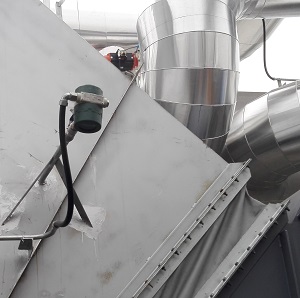

Air & Compressed Air

Air flow meter
  • No pressure loss in the system
  • Stable in dusty air conditions
  • Ideal for energy monitoring
  • Rectangular duct or large pipeline size

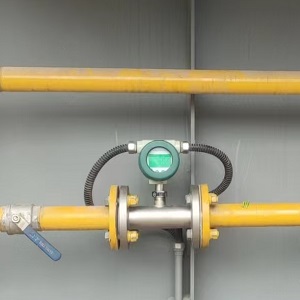

Natural Gas (NG)

Natural gas flow meter
  • Accurate for varying flow rates
  • Direct mass flow measurement
  • No need for pressure/temp comp
  • Great for combustion control

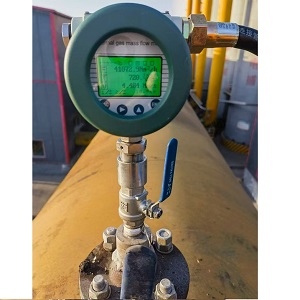

Biogas

Biogas flow meter
  • Handles moisture and dirt well
  • No clogging, low maintenance
  • Good for low-velocity gases
  • Measures mixed gas composition

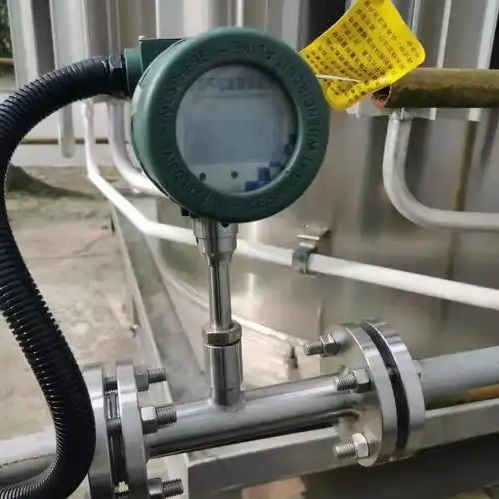

CO₂

CO2 flow meter
  • Precise for small-scale flow
  • Stable under changing pressure
  • Suitable for beverage industry
  • No recalibration required often

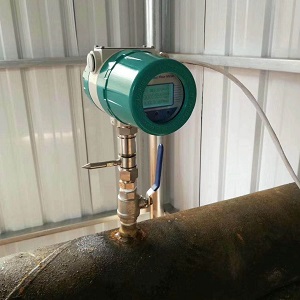

LPG / CNG

LPG flow meter
  • Fast response to flow changes
  • ATEX Explosion-proof certified body
  • Compact for skid installations
  • Low energy consumption sensor

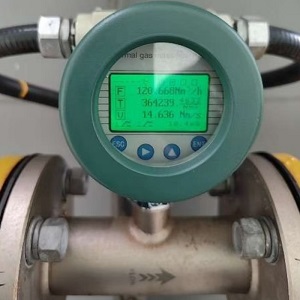

Nitrogen (N₂)

Nitrogen flow meter
  • High accuracy for inert gas
  • No drift in long-term use
  • Simple inline or insertion type
  • Used in tank blanketing systems

Not Sure Which Flow Meter Is Right For You?

Tell us about your specific application, and our engineers will help you select the perfect thermal mass flow meter for your needs. With experience across industries and gas types, we'll ensure you get the right solution.

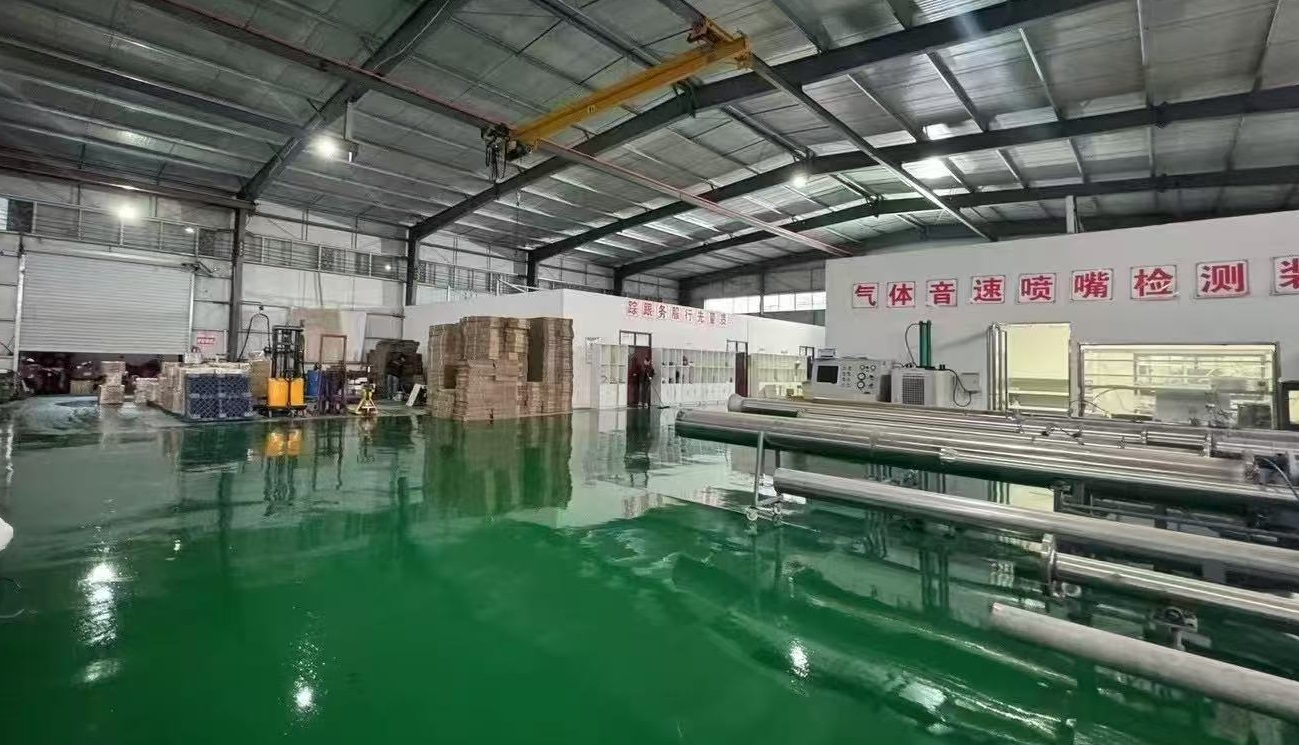

Thermal Mass Flow Meter Factory

Thermal Mass Flow Meter Factory

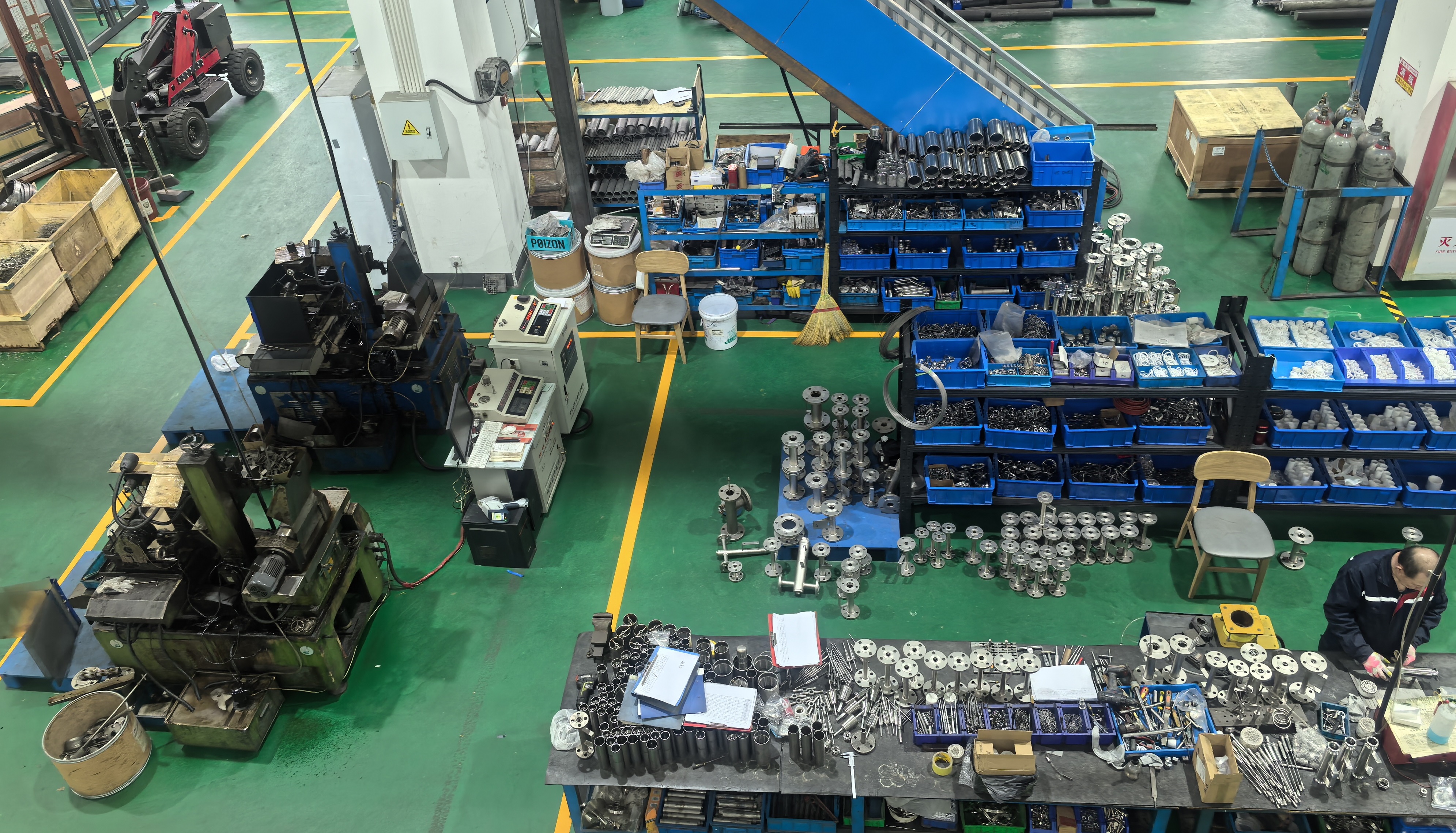

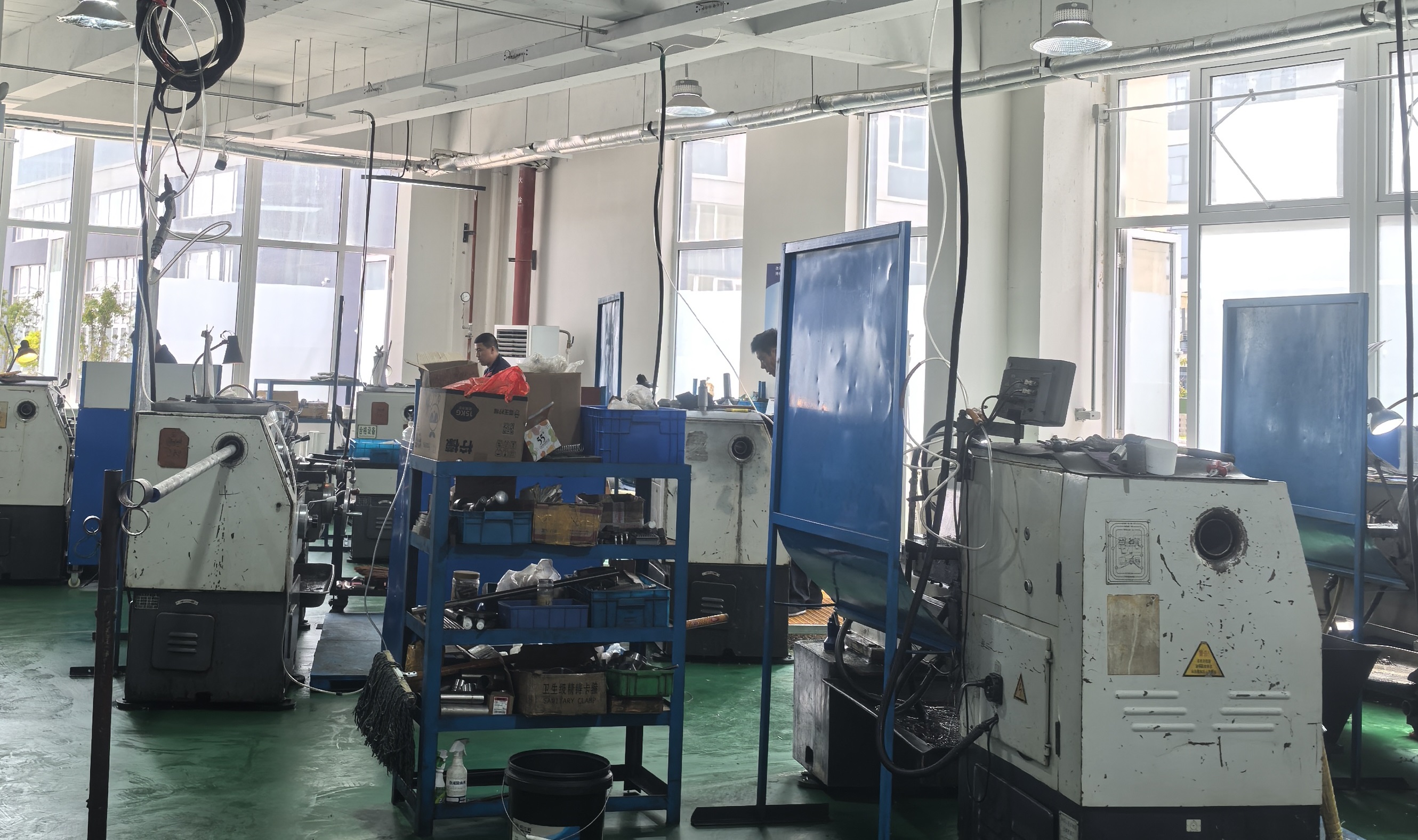

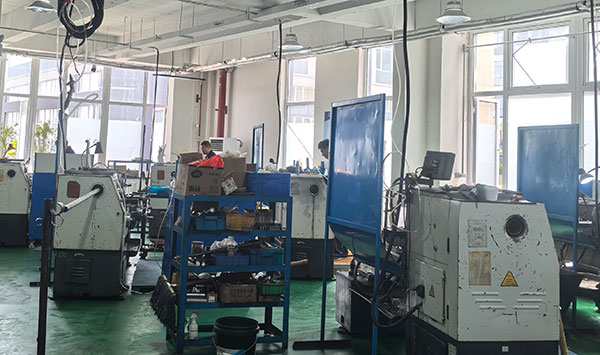

Thermal Mass Flow Meter Manufacturing
Thermal Mass Flow Meter Production

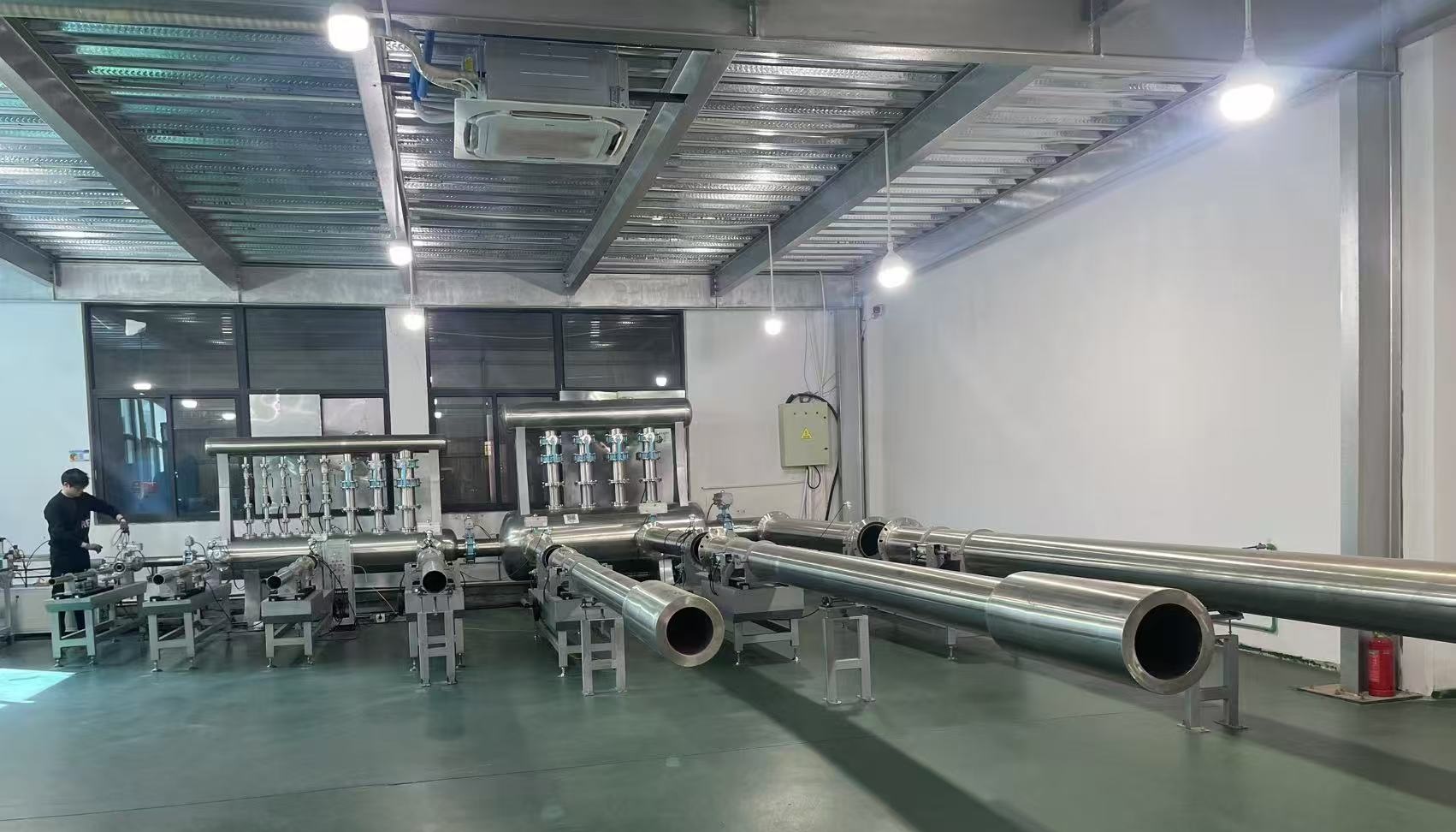

Thermal Mass Flow Meter Testing
