Choose Correct Type Fuel Flow Meter

Question:
Hi, we would love SILVER AUTOMATION INSTRUMENTS can choose a proper type liquid turbine flow meter for the fuel, see below description:

FUEL FLOW METER. 4-20 MA/PULSE OUTPUT. POWER 24VDC +/- 15%. FLOW RANGE: 0.5-10 m3/h.REMOTE VIEWING. COMMUNICATION: OPTIONAL RS485. HOUSING MATERIAL: SS304 OR SS316. 3Cr13 OR CD4MCu SS IMPELLER.EXPLOSION PROOF: EXDIIBT6 O EXIALCT4. LEVEL OF PROTECTION: IP65. DIAMETER 1", CONNECTION: FLANGE (ISO
STANDARD OPTIONAL: ANSI, DIN, J15). FLOW TEMPERATURE 20°C- 150°C. AMBIENT TEMPERATURE: -30°C TO 60°C

MEDIDOR DE FLUJO DE COMBUSTIBLE MARCA SILVER. MODELO SLW-C. SALIDA DE SEÑAL 4-20 MA/PULSE. ALIMENTACION 24VDC +/- 15%. RANGO DE FLUJO: EXTENDIDO. VISUALIZACION REMOTA. COMUNICATION: OPCIONAL RS485. MATERIAL HOUSING: SS304 O SS316. MATERIAL DE IMPELLER 3Cr13 O CD4MCu SS. PRUEBA DEEXPLOSION: EXDIIBT6 O EXIALCT4. NIVEL DE PROTECCION: IP65.DIAMETRO 1". CONEXION: FLANGE (STANDARD ISO, OPCIONAL:
ANSI,DIN,J15) TEMPERATURA DE FLUJO 20°C-150°C.TEMPERATURA AMBIENTE: -30°C A 60°C

Answer:
Here thanks for your specifications, we choose our proper type liquid turbine flow meter for your application:
Liquid Turbine Flow meter for Fuel flow measurement
SLW-25-C1-05-E-S-E-N-T3-FL
Reference product catalog: http://www.silverinstruments.com/product/flow-measurement/liquid-turbine-flow-meter.html
And if you want to know the cost of above type fuel flow meter, please emails our sales to obtain the price list.

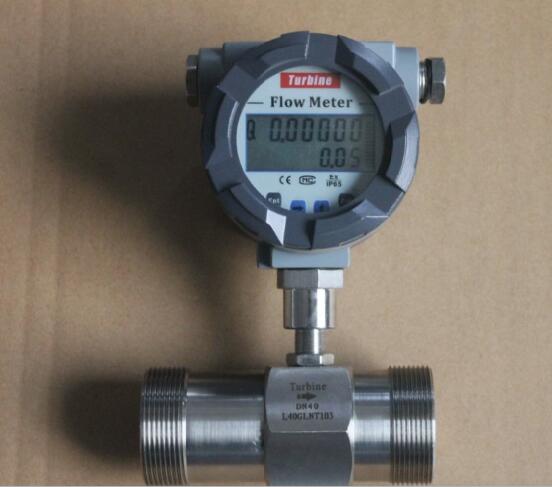

liquid turbine flow meter from Silver
liquid turbine flow meter
