Thermal Mass Flow Meter for Cold Blast Air Measurement

Thermal dispersion mass flow meterThermal dispersion mass flow meter is an ideal choice for a variety of gas flow measurement, such as combustion gas, flue gas, compressed air ,coal gas, liquefied gas .etc. Silver Automation Instruments provide robust thermal mass flow meter with cheap price and good delivery time. Below we list an application of cold blast air flow measurement by thermal mass flow meters, let's see the details:

Air Flow Meter Inquiry

We need a flow meter for cold blast air. Cold blast air is delivered to blast furnace by turbo blower plant. We need a very reliable and accurate flow meter to cross check other two existing flow meters installed at same pipe line. These flow meters are old and orifice type flow meter, we don't want to replace them but we need to install a new flow meter for accurate flow measurements.

Kindly find below and quote most suitable flow meter. We need flow meter with pressure and temperature compensation

Flow Meter Datasheet

A

Air Flow meterProcess Conditions

A-1

Medium

Cold Blast Air

A-2

Flow rate (M3/minutes)

Minimum

Operating

Maximum



500  M3/m

1000 M3/m

2000 M3/m

A-3

Line Pressure (Bar)

Minimum

Operating

Maximum



1.5 Bar

1,2 Bar

2.6 Bar

A-4

Temperature  (C0)

Minimum

Typical

Maximum



60 C0

65 C0

200 C0

A-5

Density (Kg/m3)




B

Installation Details

B-1

Location

Outdoor

B-2

Pipe Diameter (mm)

Internal

Outer




1410 mm

1420 mm


B-3

Pipe Material

MS

SS

Other





ST-20

B-4

Pipe Thickness (mm)

5 mm

B-5

Insulation thickness (mm)

NIL

B-5

Flow rate type

Volumetric

B-6

Accuracy

+/- 1 %

B-7

Volume Correction

With Pressure & Temperature Correction

B-8

Mounting Position

Horizontal

B-9

Flow Direction

Unidirectional

B-10

Straight Pipe Run

Down Stream

Up Stream




20D

20D


C

Electrical Specifications

C-1

Power Supply

220 VAC/ 36 VDC

C-2

Display type

Remote Display

LCD with backlight and keypad for configurations

C-3

Local Display

Not required

C-4

Totalizing

Required

C-5

Analog output

4 to 20 mA


Reply to the Flow meter Enquiry

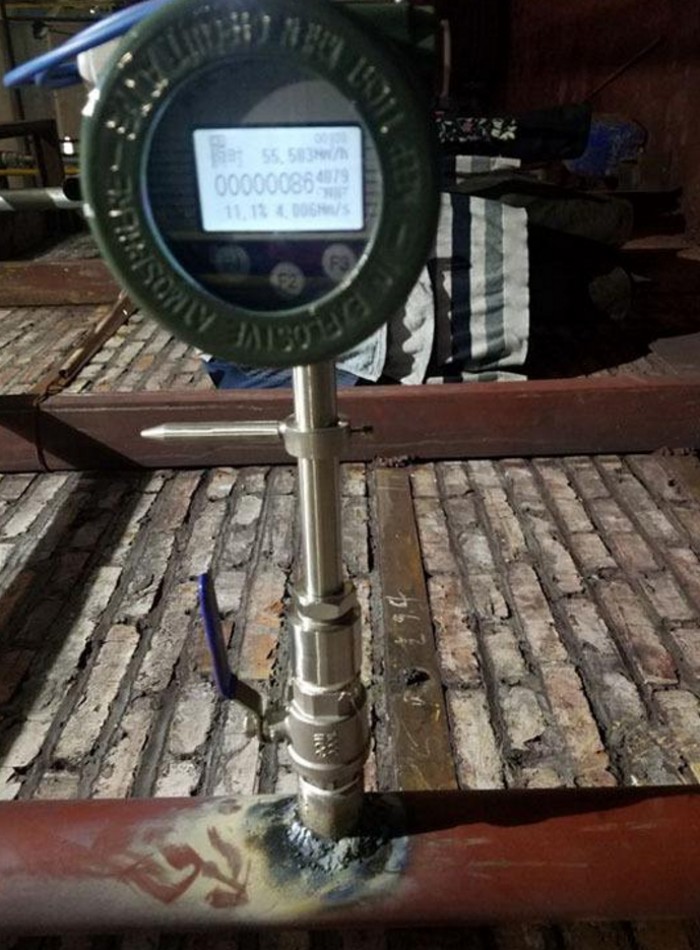

Hi, thanks for your inquiry, after analyzing your Cold Blast Air flow meter technical specifications, we choose thermal dispersion mass flow meter; this flow meter can have 1.0% accuracy as you required, and the best part is that it can directly measure gas mass flow without external temperature and pressure compensation. We notice your pipe line is really large, thermal mass flow meter can have insertion type installation which will save you a lot installation work. Our technician calculates your parameters and thinks DN1000 insertion type mass flow meter is suitable pipe size for your application. Beside thermal dispersion mass flow meter has digital display for your observing the value in the field conveniently also easy for your future parameter configuration.

See below model selection

Thermal Mass Flow meter

Model:

SRK-100/1400/FPI/TW/6/A0/T3/P1/D/1/E

SRK-100 Series Thermal Mass Flow meter

1400-Gas flow meter Size 1000mm

FPI-Remote type & plug-in type TW-Thread & weld base

6- Sensor Material 316 stainless steel

A0-No Explosive Proof

T3- Medium Temperature: 150~200℃

P1- Medium Operation Pressure: 0-1.0Mpa

D-Power Supply: 220VAC

1- Gas flow sensor Output: 4-20mA

E-Gas flow meter with Display
