SILVER AUTOMATION INSTRUMENTS LTD.

General Introduction about Gas Turbine Flow Meters

1.Application

The gas turbine flowmeter integrates the gas turbine flow sensor and the gas flow totalizer in one body. The main technical performances of Silver Automation Instruments have reached the international level. The gas turbine flowmeter is used in petroleum, chemical, electric power, metallurgical industry, boiler, gas metering, gas pressure regulating station and gas meter for custody transfer

2.Working principle

When the air flow enters the flowmeter, it first passes through a specially structured straightener and accelerates. Under the action of the fluid, the turbine blade is at an angle to the fluid flow direction. At this time, the turbine generates a rotational moment, and the turbine starts to rotate after overcoming the resistance torque and the friction torque. When the moments reach the equilibrium elbow, the rotational speed is stable, and the rotational angular velocity of the turbine is linear with the flow rate. The magnet on the rotating transmitting disk periodically changes the reluctance of the eccentric, thereby inducing a flow volume flow with the fluid at both ends of the sensor. The pulse signal, which is amplified, filtered, shaped and then is sent to the converter for processing, the totalizer directly showing the volume flow and volume of the fluid.

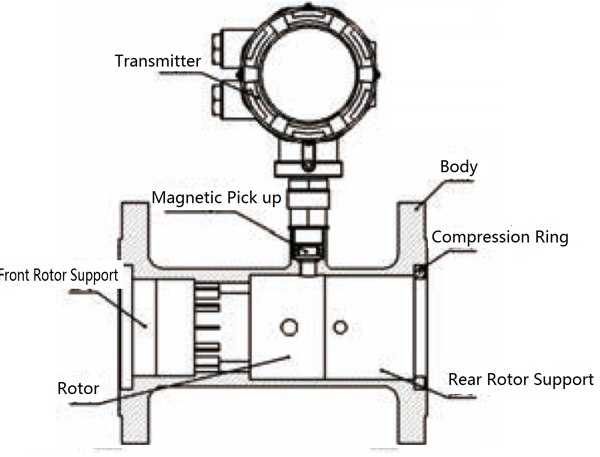

3. Gas Turbine Flow Meter Construction

Gas Turbine Flow Meter Construction

4.Flow meter Types

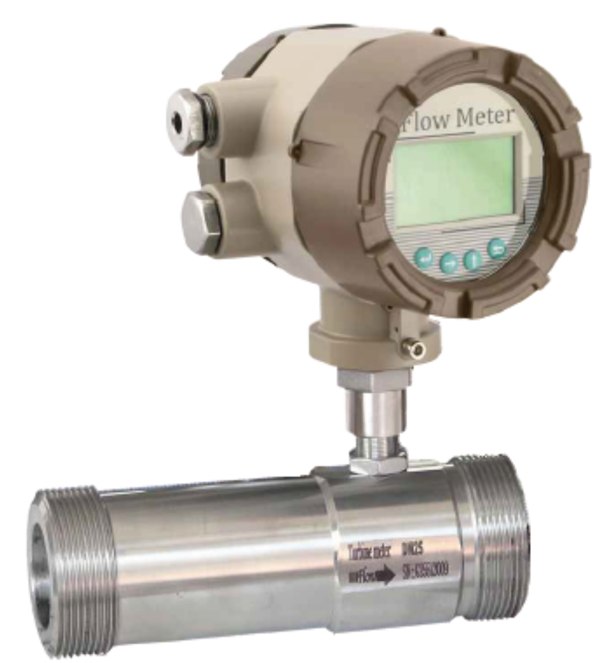

Thread Connection Gas Turbine Flow meter
Thread Connection Gas Turbine Flow meter

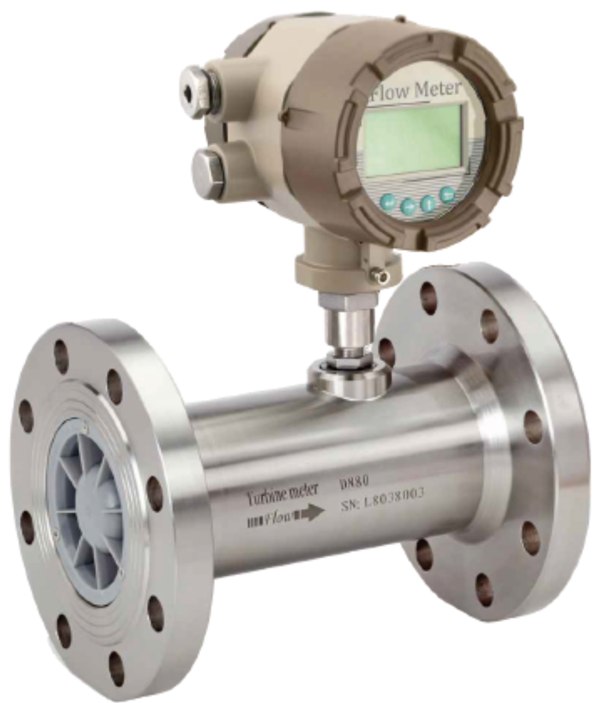

Flange Connection Gas turbine Flow meter
Flange Connection Gas turbine Flow meter

5. Technical Specifications

5.1 Max Pressure loss at Normal Flow Range

Size (mm)

Normal Flow Range (m3/h)

Max Pressure Loss (Kpa)

20

S

2-20

1.5

25

S

4-40

1.5

40

S

6-65

1.5

50

S1

7-70

1.2

S2

10-100

1.4

80

S1

13-250

1.0

S2

20-400

2.0

100

S1

20-400

1.0

S2

32-650

1.5

150

S1

50-1000

1.0

S2

80-1600

2.0

200

S1

80-1600

0.8

S2

130-2500

1.5

250

S1

130-2500

0.8

S2

200-4000

2.0

300

S

200-4000

1.0

350

S

400-8000

1.5

400

S

650-13000

2.0

Accuracy

1.5%(1.0%is available upon request)


Note: Max Pressure loss is the pressure loss of the air flow meter when working at the max flow point, medium is air at normal temperature.

5.2General Specifications

Medium

Clean gas at low or middle flow rate

Standard

Measurement of gas flow in closed pipes-Turbine flowmeter (GB/T1 8940-2003)

Size& Process Connection

Flange

Stainless steel body

DN20-DN300

Carbon steel body

DN350,DN400

Thread

Stainless steel body

DN20,DN25,DN40,DN50

Flange Standard

Standard

GB/T9113-2000

Option

ANSI, JIS ,DIN

Thread

Standard

BSPP(male)

Option

BSPP(F),NPT.,etc


5.3 Pressure Rating of Gas Turbine Sensor

Connection

Material

Size

Normal Pressure Rating

Option

Flange

Stainless steel

DN20-DN100

1.6Mpa

≤6.3Mpa

DN150-DN200

≤4.0Mpa

DN250-DN300

≤2.5Mpa

Carbon steel

DN250-DN400

-

Thread

Stainless steel

DN20-DN50

≤4.0Mpa


5.4 Gas turbine meter Material

Type

Body

Rotor

Thread

304 Stainless steel

(DN20-DN50)

Aluminium alloy

Flange

304 Stainless steel

(DN20-DN300)

Carbon Steel

(DN350,DN400)

Note:

Straightener Material :DN20-DN150 ,ABS, DN200 Cast aluminum alloy

Gas meter Transmitter Housing: Cast Aluminum Alloy


5.5 Electrical Specifications

Power Supply

DC24V

3.6Vlithium battery

Consumption

< 2W

< 700μA

Protection level

IP65

Explosion Proof

Exd IICT6 Gb

Electrical Port

M20*1.5 (F)


5.6. Operation Environment of Gas Turbine Flow Transmitter

Calibration Condition

Calibration Equipment

1.Master Meter calibrationfacility

2.Sonic nozzle gas flow calibrationfacility

3.Bell prover gas calibration facility

Environment

Temperature: 20℃

Relative Humidity: 75%

Operation

Medium temperature: -20 ~80℃

Atmospheric pressure: 86Kpa-106Kpa

Environmenttemperature:-20 ~60℃

Relative Humidity5%-90%
