SX 5000 Paperless Recorder Overview

SX5000 blue-screen paperless recorder has max 16-channel universal input function. Chartless Recorder can input the standard current, standard voltage, frequency, millivolt, thermocouple, thermal resistance and other signals. It is low cost paperless recorder but with powerful functions. Chartless Recorder also has some other functions, including isolated power distribution output of sensors, relay alarm output, transmitter output, flow accumulation, temperature and pressure compensation, transfer storage of historical data, printing, Ethernet and remote communication.


Functions & Features of SX 5000 Paperless Recorder

System

• Using the latest large-scale integrated circuit.

• Using high-speed & high-performance 32-bit ARM microprocessor, Paperless data recorder china can detect,record,display and alarm 16 channels signals simultaneously.

• 5.6 inch 320x 234 dot-matrix TFT high brightness and blue screen LCD, CCFL backlight, clear picture, brilliant color, and wide viewing angles. This type chartless recorder price is low.

• Fully isolated universal input, which can input a variety of signals. Chartless Recorder can be configured by software without jumper.

• New switching power supply, which can function properly within the range of 85VAC ~ 265 VAC.

• Integrated hardware real -time clock, which can run accurately in case of power down.

• Provide isolated 24VDC power distribution for transmitter.

• Paperless recorder manufacturer designs the chartless recorder with large capacity storage of FLASH memory chips to store historical data, which will never lose data in case of power-down.

• SX5000 blue-screen paperless data recorder  max has 12-way relay alarm output.(SX5016 max has 8 relay outputs)


Signals

• You can input a variety of standard signals: standard current, standard voltage, frequency, millivolt, thermocouple, thermal resistance.

• Signal full- scale accuracy: ± 0.2%.

• Optoelectronic devices are used between channels and they are completely isolated.

• Paperless chart recorder providing standard 4-20mA for transmitter output.


Software

• Use password to protect configuration data.

• Easy  menu  configuration.  It  can  configure  freely  and  display  the  engineering  tag  number  and engineering units, paperless chart recorder price is low.

• Engineering quantities display wide range of values. It can show five digits: -9999~ 19999, and it also supports the display of vacuum scientific notation.

• Indicate the low low limit alarm, low limit alarm, high limit alarm, high high limit alarm of all channel simultaneously. Chartless Recorder can record up to recent 15 alarms.

• Each channel of SX5000 paperless data recorder from China all supports flow accumulation function, and provides hourly report, 8-hour shift report,12-hour shift report, daily and monthly reports and other reports.

• Trend display mode can select horizontal trend or vertical trend.

• It can realize 12 groups temperature and pressure compensation. It can support orifice flow meter, vortex flow meters to realize compensation on steam, water, common gas.etc.

• 5 groups of trend combination are provided, and each group can be free to choose channel, free and the color of trends.

• Paperless graphic recorder has a powerful T6 input method which is easy to operate. Paperless data recorder supports numbers, characters, special symbols, subscripts and superscripts input, etc.


Communication

• Standard serial communication interface: RS-485 or RS-232C.

• Paperless chart recorder supports the standard Modbus-RTU communication protocol, providing a variety of data types, such as the percentage, engineering quantities, accumulation and so on.In addition to supporting our company's data management software, it also supports some popular professional configuration software, such as the iFIX, MCGS, etc.

• Use USB2.0 interface for transfer storage and backup of history records. Paperless graphic recorder can support maximum 8G USB flash drives.

• It supports the FAT32 file system. Windows can automatically identify the backup data files without format conversion.

• Paperless data recorder can  connect  with  an  external  micro-printer,  so  you  can  manually  print  data  and  trends,  and automatically print real-time on a regular basis to meet the needs of the user to print on the filed.

• Ethernet is available upon request from customers.


Display Screen of SX5000 Paperless Recorder

verwiew
 Bar
Trend


- Overwiew -

In addition to displaying the test values, digital display can also display the tag number of channels, industrial units, alarm status, and accumulation information.


- Bar -

It is convenient and visualized to use bar graph to display the test value. Meantime, it also displays the tag number of channels, industrial units and alarm state information.


- Trend -

Horizontal trend to display values, combine freely the trends and trend colours.


History

Flow


- History -

It can re-appear the historical data stored in memory. Horizontal and vertical display types can be selected.


- Alarm Summary -

It can display the recent alarm time, and the time to remove the alarms.


- Flow -

It can display flow, temperature, pressure

On one display in the flow metering system, it can also display frequency, DP and density ,



Model Selection SX5000 Paperless Data Recorder

1-12 Channels Input Model Selection

Model

Function

Code

Specification Code

Description

SX5001



Signal Input 1 channels

SX5002



Signal Input 2 channels

SX5003



Signal Input 3 channels

SX5004



Signal Input 4 channels

SX5005



Signal Input 5 channels

SX5006



Signal Input 6 channels

SX5007



Signal Input 7 channels

SX5008



Signal Input 8 channels

SX5009



Signal Input 9 channels

SX5010



Signal Input 10 channels

SX5011



Signal Input 11 channels

SX5012



Signal Input 12 channels

Function code

R


Record Function

F


Temperature & Pressure compensation




Additional Specification

/T□

1-4

4-20mA output 1-4 channels *1

/A□

1-12

Normal open contact output relays 1-12 channels

/C□

2

RS232

3

RS485

4

Micro printer interface *2

/U

USB interface

/L

Accumulation/ report

*1 SX5009-SX5016 no 4-20mA output

*2 Dedicated micro printer


16 Channels Input Model Selection

Model

Function

Code

Specification Code

Description

SX5016



Signal Input 16 channels

Function code

R


Record Function

F


Temperature & Pressure compensation



Additional Specification

/A8

Normal open contact output relays 1-12 channels


/C□

2

RS232

3

RS485

4

Micro printer interface *2

/U

USB interface

/L

Accumulation/ report


Custom Function For SX5000 Paperless Recorder

Specification

Description

/FB□

1-12

Frequency input 8-40 channels, with 12 VDC power supply to transmitters *3

/FC□

1-12

Frequency input 8-40 channels, with 24 VDC power supply to transmitters *3

/PT

anti-corrosion paint

/P1

24V DC power supply

/E

Ethernet function


*3 Contact SILVER to choose the frequency inputs channels.



SX 5000 Paperless Recorder Accessories (sold separately)

Product

Model

Specification

USB Flash disk

860206

8 GB

Communication conversion module

862101

Active RS232/RS485 conversion module

Power filter

863101

220VAC/1:1/50W

Software

864801

MDMR multi-machine data management software

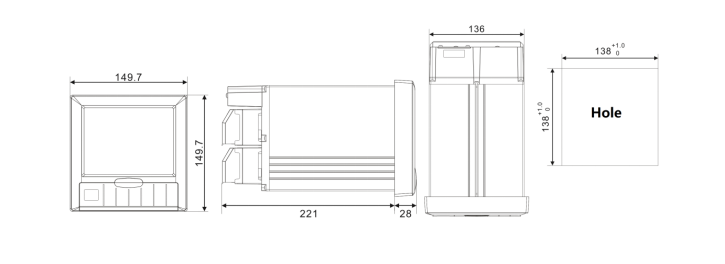

SX 5000 Paperless Recorder Installation Dimensions (Unit: mm)

SX 5000 Paperless Recorder Installation Dimensions
