Industrial Air Flow Meter
Precise flow measurement solutions for industrial air applications
Overview
Industrial air flow meters play a vital role in various applications, enabling precise measurement and control of air flow. In this article, we will explore three types of industrial air flow meters: thermal mass flow meters, vortex flow meters, and gas turbine flow meters.
We will delve into their principles of operation, advantages, and disadvantages, highlighting their suitability for industrial air flow measurement. Each type offers unique benefits for specific industrial applications.
Thermal Mass Flow Meter for Industrial Air Flow Measurement
A thermal mass flow meter operates on the principle of heat transfer. It measures the amount of heat required to maintain a constant temperature difference between two sensors—one heated and one unheated. As airflow passes over the heated sensor, it cools the sensor, and the power required to maintain the temperature difference is proportional to the mass flow rate of the air.
Advantages to use thermal mass flow meter for air measurement
- Direct Mass Flow – Provides accurate and direct mass flow measurement, measurement air flow unit is Nm3/h
- No Compensation Required – Does not need temperature and pressure compensation for air flow measurement
- Versatile – Suitable for various gases and gas mixtures, especially good for air flow measurement
- Low Pressure Drop – Minimal pressure drop during measurement
- Wide Turndown Ratio – Offers flexibility for versatile applications
- Insertion Probe Options – Can be made into insertion probe to suit large air pipe lines
- High Temperature – Can be made into high temperature air flow meter, max temperature can be 300°C for hot air flow
- Works with Contamination – Can be used for dirty air flow measurement
Vortex Flow Meter for Industrial Air Flow Measurement

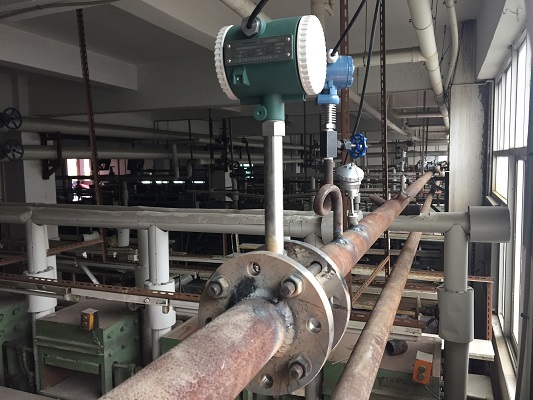

A vortex flow meter utilizes the Von Kármán effect, where a bluff body (like a triangular prism) placed in the path of airflow generates vortices as the air passes by. Sensors detect the frequency of vortices shed, which is directly proportional to the air velocity and, subsequently, the flow rate.
Advantages to use vortex flow meter for air measurement
- Energy Efficient – Low pressure drop, making it energy-efficient
- Robust Design – Suitable for industrial environments
- Low Maintenance – Minimal maintenance requirements
- Integrated Sensors – Option with temperature and pressure integral sensor for comprehensive measurement
Disadvantages
- Installation Sensitivity – Sensitivity to installation conditions and pipe disturbances
- Limited Turndown – Turndown ratio may be limited in some applications
- Calibration Issues – Accuracy can be affected by changes in fluid density and temperature
Gas Turbine Flow Meter for Industrial Air Flow Measurement
A gas turbine flow meter operates based on the principle of a turbine rotor's rotation. Airflow causes the turbine blades to spin, and the rotational speed is directly proportional to the air velocity and, consequently, the flow rate.
Below are some advantages of turbine flow meters for industrial air applications:
Advantages
- High Accuracy – Excellent accuracy and repeatability
- Wide Range – Wide range of flow rates can be measured
- Long Lifespan – Long operational life with proper maintenance
Disadvantages
- Wear and Tear – Prone to wear and tear, affecting long-term accuracy
- Installation Requirements – Requires a straight pipe section for optimal performance
- Pressure Drop – Higher pressure drop compared to other flow meter types
Conclusion
In conclusion, each type of industrial air flow meter—thermal mass flow meter, vortex flow meter, and gas turbine flow meter—offers unique advantages and disadvantages. The selection of the appropriate flow meter depends on the specific requirements of the industrial application, considering factors such as accuracy, pressure drop, environmental conditions, and cost.
Proper understanding and utilization of these flow meters are essential for efficient air flow measurement and optimal industrial processes. Welcome to contact SILVER Automation Instruments to send your industrial air flow measurement demand.
