How to Accurately Measure Small Flow Rate: A Practical Guide
How to Accurately Measure Small Flow Rate: A Practical Guide
Essential techniques and tools for precision measurement of micro and low flow rates
Overview
Accurate measurement of small and low flow rates for gas, liquid, or steam is essential in precision industries like pharmaceuticals, chemical processing, and semiconductor manufacturing. Even tiny errors can impact results and operations at very small volumes like milliliters or microliters per minute.
To ensure accurate and consistent performance, you need the right micro flow meter, smart measurement techniques, and a well-set-up system. This comprehensive guide covers everything from selecting the appropriate flow sensor to implementing digital data logging for enhanced precision.
A "small" flow rate refers to the movement of a fluid (liquid or gas) at a low volume over time, often measured in microliters or milliliters per minute. Knowing your target flow range is the first step toward choosing the right micro flow meter solution.
The "low" flow rate range varies depending on the industry and application. Understanding these ranges helps you select the most appropriate measurement technology for your specific needs.
Typical Flow Rate Ranges by Application
Application
Flow Rate Range
Medical infusion pumps
0.1–10 mL/hr
Microfluidics
1–100 μL/min
Laboratory analysis (e.g. HPLC)
10–500 μL/min
Precision gas flow (e.g. gas sensors)
1–100 sccm
Our Ultra-Low Flow Capabilities
Gas flow rates: Down to 2 sccm
Oil flow rates: From 0.5 mL/min
Liquid flow rates: As low as 40 g/h
Pro Tip: Combining these tools with a low flow meter gives you greater control and consistency for the most demanding applications.

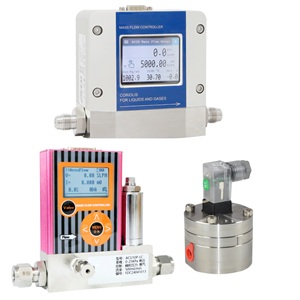

Small flow meters, also known as low flow meters or micro flow meters, are designed to measure very small volumes of liquid or gas. To choose the right one for your application, it's important to understand the unique features, strengths, and limitations of each type.
Comparison of Low Flow Meter Types
Flow Meter Type
Best For
Accuracy
Suitable For
Notes

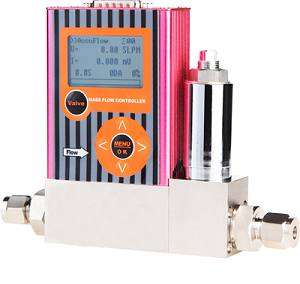

Thermal Mass
Gases
High
Gases only
Ideal for clean dry gases

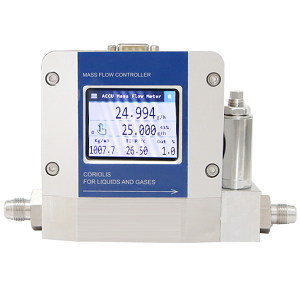

Coriolis Meter
Liquids & gases
Very High
All fluids
Very precise but costly

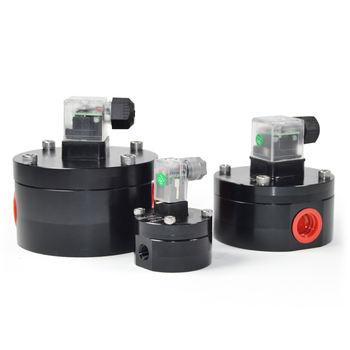

Positive Displacement
Liquids
High
Clean/viscous
Accurate at low speeds
Electromagnetic
Conductive liquids
High
Water slurry
Requires conductive media
Key Selection Questions
Liquid or Gas? – Micro flow meters are fluid-specific; specify the type and properties
Flow Rate Range? – Accurate range specification is crucial for proper sensor selection
Operating Conditions? – Temperature and pressure affect meter selection and cost
Budget & Complexity? – Balance cost-effectiveness with required accuracy
Accuracy Requirements? – More sensitive applications require precision instruments
Need a Quick Recommendation?
Tell us your fluid type, flow range, and process environment—we'll help you find the perfect flow meter.
Calibrate Your Flow Measuring Instruments Regularly
Flow meters can lose accuracy over time due to environmental changes, wear and tear, or buildup inside the flow path. Regular calibration is essential to ensure accurate and reliable flow measurements, especially when dealing with small or low flow rates.
Calibration Best Practices
Use Trusted Standards – Calibrate using certified reference standards
Follow Schedule – Adhere to manufacturer's calibration intervals
Monitor Performance – Recalibrate if you notice inconsistent results
Tips to Minimize Errors in Small Flow Measurement
Small flow rates are especially sensitive to disturbances. To avoid measurement errors, consider these essential practices:
Avoid Pulsation – Use dampeners or flow restrictors to stabilize flow
Eliminate Leaks – Check all fittings, seals, and tubing regularly
Control Conditions – Use regulators to stabilize temperature and pressure
Proper Installation – Follow manufacturer guidelines for orientation and pipe runs
Consider Digital Data Logging
For applications where precision and data tracking matter, a digital data logging flow meter is a smart choice to boost performance and reliability.
Data Logging Benefits
Continuous Monitoring – Track flow rates in real time without manual checks
Accurate Records – Automatically save data for analysis and compliance
Early Problem Detection – Identify issues before they cause downtime
Simplified Reporting – Export data easily for reports and audits
Easy Calibration Checks – Quickly spot trends to maintain accuracy
