4 channel paperless recorder

Unveiling the 4-Channel Paperless Recorder

The 4-channel paperless recorder is a versatile instrument designed to monitor and record various process parameters simultaneously. Unlike its traditional paper-based counterparts, this digital recorder employs advanced technology to capture, store, and display data electronically. Equipped with multiple input channels, it allows industries to track a diverse range of variables in real-time, making it an indispensable tool in modern data-driven environments.

Features and Capabilities

☑  Multi-Channel Recording: The defining feature of the 4-channel paperless recorder is its ability to capture data from up to four different sources simultaneously. This is particularly beneficial in complex industrial processes where monitoring multiple variables is essential.

☑  High-Resolution Displays: These recorders are equipped with high-resolution touchscreens, providing a user-friendly interface for data visualization. Operators can easily configure the display to show graphs, trends, tables, and other formats to analyze data effectively.

☑  Data Storage and Retrieval: Electronic storage eliminates the need for paper charts and offers extensive data storage capacity. Recorded data can be archived, retrieved, and analyzed at any time, enhancing historical analysis and troubleshooting capabilities.

☑  Remote Monitoring: Many 4-channel paperless recorders offer remote monitoring capabilities, enabling users to access real-time data from a distance. This feature is particularly valuable for industries where on-site monitoring might not always be feasible.

☑  Alarms and Notifications: The recorder can be programmed to trigger alarms and notifications based on preset thresholds, ensuring that deviations from optimal conditions are promptly addressed.

☑  Data Security: Electronic recorders offer enhanced data security through password protection and user access controls. This safeguards sensitive information and ensures compliance with industry regulations.

Benefits and Applications

☑  Enhanced Efficiency: The ability to monitor multiple parameters in real-time allows industries to identify trends and anomalies promptly. This leads to more informed decision-making and optimized process control.

☑  Reduced Downtime: Swift identification of issues through real-time monitoring and historical analysis minimizes downtime and contributes to overall operational uptime.

☑  Cost Savings: Eliminating paper chart recorders reduces paper consumption and maintenance costs associated with manual chart replacements.

☑  Compliance and Reporting: Electronic data storage facilitates compliance with regulatory standards by providing accurate and easily accessible records for audits and reporting.

☑  Process Optimization: Accurate data analysis helps identify inefficiencies and opportunities for process optimization, ultimately leading to improved product quality and reduced waste.

☑  Versatility: The 4-channel paperless recorder finds applications in various industries, including manufacturing, pharmaceuticals, food and beverage, energy, and more, where simultaneous monitoring of multiple variables is essential.

The 4-channel paperless recorder represents a leap forward in data recording and monitoring technology. Its ability to capture and analyze multiple data streams simultaneously, along with its user-friendly interface and remote monitoring capabilities, positions it as a vital asset in the era of Industry 4.0. By facilitating real-time insights, optimizing processes, and ensuring compliance, the 4-channel paperless recorder empowers industries to make data-driven decisions that drive efficiency, productivity, and overall operational excellence.

Here we list common type 4 channels paperless recorders.

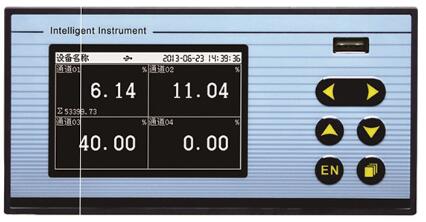

SX 2000 Series,3.5 inch,black screen

• Size: 3.5 inch, LCD display (320×200points)
• Dimensions: 160 (W) × 80 (H) × 100 (D) mm
• Display Color: Black/white
• Max 4 universal channels
• Max 4 relay alarm outputs
• RS485 or RS 232 interface
• USB interface
• Ethernet function available

SX5000 Series,5.6 inch, blue screen

• Size: 5.6 inch, LCD display (320×234 points)
• Dimensions: 144 (W) × 144 (H) × 220 (D) mm
• Display Color: Blue/white
• 4 universal channels, extended to 16 channels
• Each channel has max 4 alarms
• RS485 or RS 232 interface
• USB interface
• Ethernet function available
• 1-4 channels 4~20mA outputs
• High accuracy: ± 0.2%.
• 1~16 channels

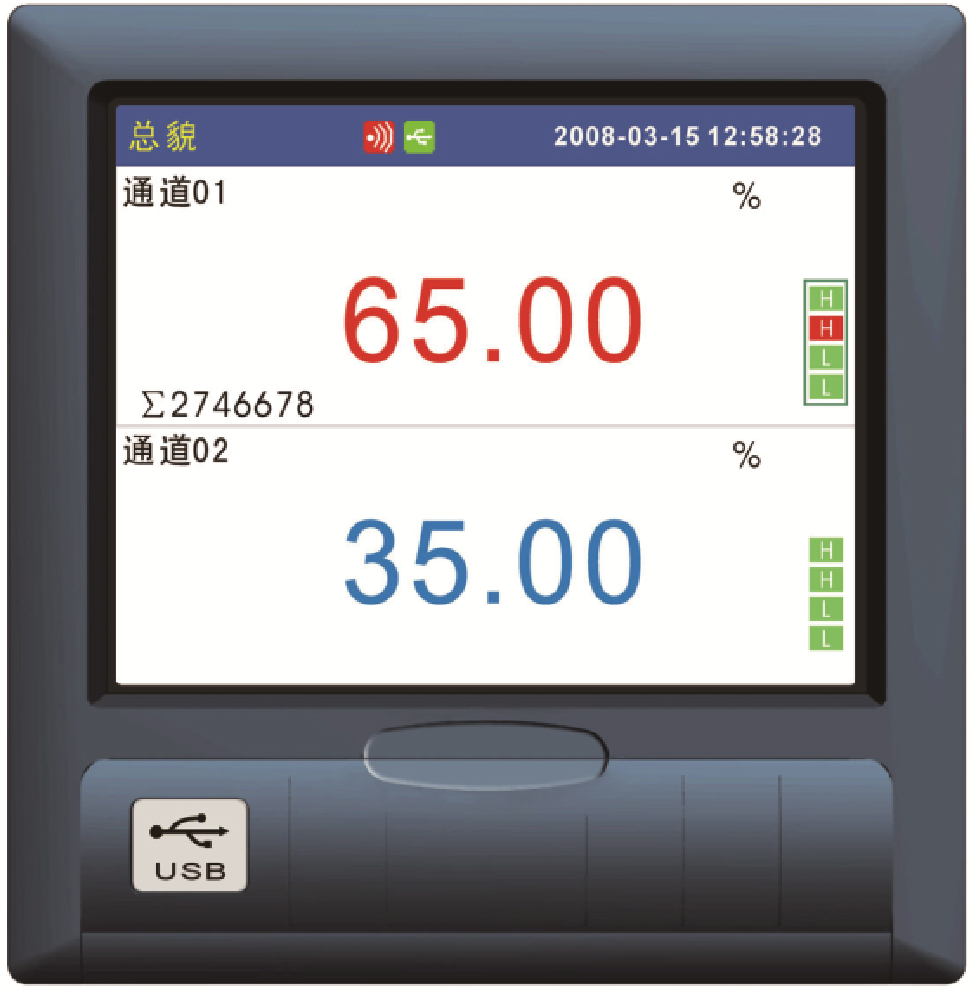

SX6000 Series,5.6 inch, color screen

• Size: 5.6 inch, LCD display (320×234 points)
• Dimensions: 144 (W) × 144 (H) × 220 (D) mm
• Display Color: Color
• 4 universal channels, extended to 16 channels, each channel is well isolated
• Each channel has max 4 alarms
• RS485 or RS 232 interface
• USB interface
• Ethernet function available
• 1-4 channels 4~20mA outputs
• Free data management software view in PC
• 1~16 channels

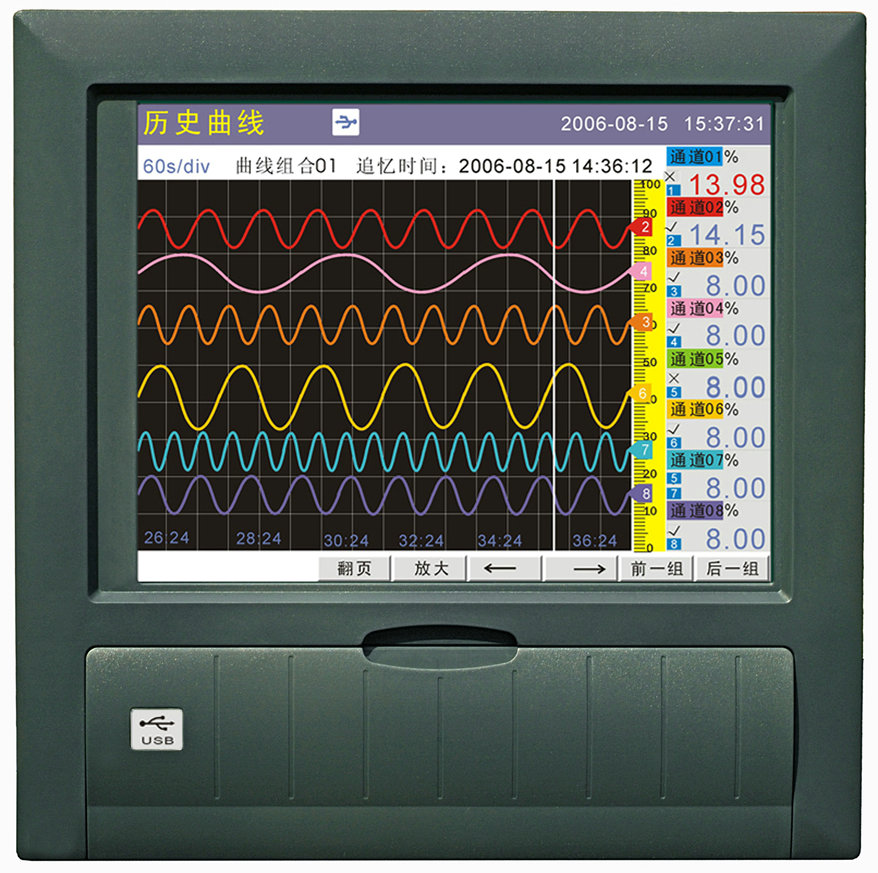

SX8000 Series,10.4 inch, color screen

• Size: 10.4 inch, LCD display (640×480 points)
• Dimensions: 288 (W) × 288 (H) × 169 (D) mm
• Display Color: Color
• 4 universal channels, extended to 40 channels, each channel is well isolated
• Each channel has max 4 alarms
• RS485 or RS 232 interface, Modbus RTU
• USB interface
• Ethernet function available
• 4 or 8 channels 4~20mA outputs
• Free data management software view in PC
• 1~40 channels

ST800 Series,10.4 inch, color screen

• Size: 10.4 inch, LCD display (800×600 points)
• Dimensions: 288 (W) × 288 (H) × 254 (D) mm
• Display Color: Color
• 4 universal channels, extended to 48 channels, each channel is well isolated
• Each channel has max 4 alarms
• RS485 or RS 232 interface, Modbus RTU
• USB interface
• SD card available
• Mathematic function
• Ethernet function available
• 4 or 8 channels 4~20mA outputs, Maximum load: 750Ω
• Free data management software view in PC
• 1~48 channels

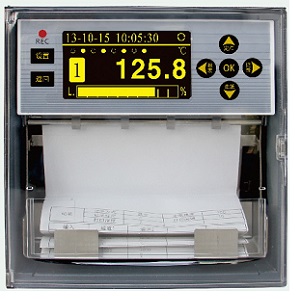

SX3000 Series chart recorder/Paper recorder

• Vibration-resistant thermal printer
• Rich display, such as chart, timing, alarm
• 4 channels Chart recorder, max 8 channels inputs
• A maximum of 8 relay alarms
• USB interface 4-20mA output
• No data will be missing in a power failure
• 1~8 channels paper recorder
