Power Generation


Gas turbine Flow meter
Gas turbine Flow meter
Gas turbine flow meter has excellent performance under both low and high pressure, various ways of signal output and low sensitivity to the fluid turbulence. Thus it is widely applied to the measurement of gas flow, such as natural gas, coal gas, LPG ,light hydrocarbon gas and so on.
a.High accuracy, standard accuracy:±1.5%R,option±1.0%R
b.New design sensor, low flow start, low pressure loss, good shock resistance and anti-fluctuation, long life time.
c.Premium rectifier, not hard demand on straight pipes in down and up stream.
d.Good Turn down ratio, 30:1-10:1
e.The instrument K factor can be linear corrected by max 8 points to improve the flow meter calculation accuracy.
f.The flow meter display can be rotated by 180 degree and easy for installation.

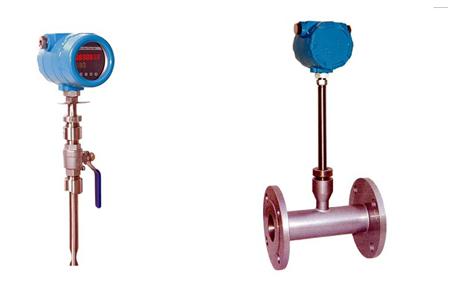

Thermal Mass Flow meter
Thermal Mass Flow meter
Thermal mass flow meter can directly measure fluid mass flow without requiring temperature and pressure compensation.
a.Direct trade settlement,
b.No movable components,
c.Small pressure loss,
d.Wide range ratio,
e.high accuracy,
f.high reliability, simple installation and convenient operation.

Vortex Flow meter
Vortex Flow meter
a.Wide application in chemical and petrochemical industry ,such as :
Gas: Air, carbon dioxide, oxygen, nitrogen, gas, natural gas and other chemical gases, etc.,
Liquid: water, high temperature water, oil, chemical liquid,
Steam: saturated steam, superheated steam;
b.It is good choice for steam measurement with external temperature and pressure compensation.
Different installation methods, such as wafer connection, flange connection, insertion type

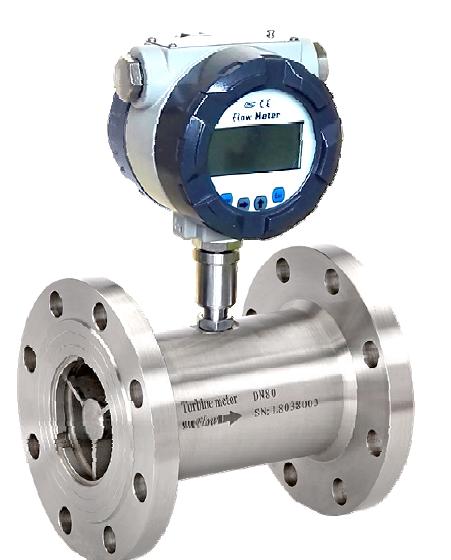

Liquid Turbine Flow meter

Liquid Turbine Flow meter

Liquid turbine flow meter is often used by customers for power generation industry for below advantages.
a.High accuracy but low cost flow meter .
b.Perfect choice for clean and low viscosity fluids, such as clean water, diesel
c.Different outputs and communications for different control purpose in power generation industry.

Paperless Recorder
Paperless Recorder
Paperless Recorders and data acquisition systems are widely used in chemical and petrochemical industry, it can record temperature, flow , pressure ,voltage, frequency in the process control.
a.Max with 48 channels, 1 to 48 channels options.
b.Can have 4-20mA or alarm output
c.RS485 function, E-Ethernet
d.It can record temperature, flow, pressure, voltage, frequency in the process control.

Pressure Gauge

a.Copper ,stainless steel or plastic material options for different chemical and petrochemical demands
b.Pressure gauge with electrical contact for various process control demands.
c.Different kinds process connections tailored for customers
d.Robust diaphragm seals with different materials.

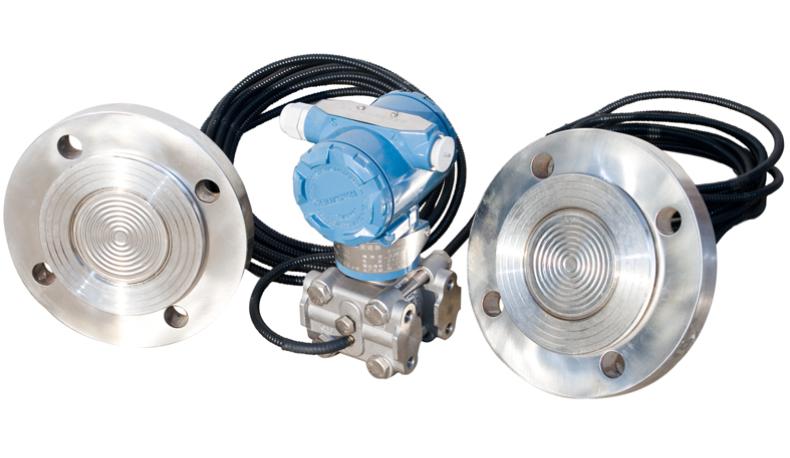

Pressure Transmitters, DP transmitters and diaphragm seal transmitters
Pressure Transmitters

a.Pressure ,differential pressure, absolute pressure ,negative pressure measurement
b.Different kind of diaphragm seals and process connections for chemical and petrochemical industry.
c.4-20mA output , digital display and Hart Protocol option

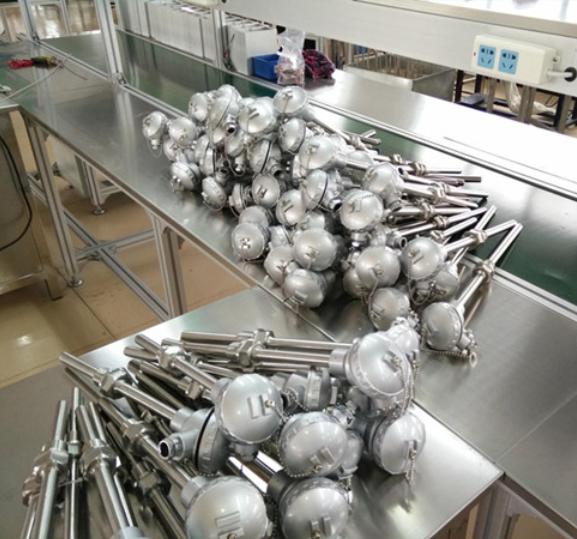

RTD & Thermocouple, temperature transmitter

temperature transmitter

a.RTD & Thermocouple with different temperature ranges
b.Process connections tailored for customers demands.
c.Option with 4-20mA output and Hart Protocol.
d.Custom tailored temperature sensing solutions to meet the unique requirements of the chemical and petrochemical service equipment OEM.  We provide our sensor assemblies promptly and cost effectively to our valued customers.
