Instruments, although the use of computer control systems has squeezed out some of the recorder market, are still widely used in many small and medium-sized devices, and it can be predicted that they will not be completely replaced by computers for a considerable period of time. At present, the widely used mechanical paper recorders have a series of problems, such as large daily maintenance workload, high operating costs, poor reliability, inflexible application, and inability to process and utilize information.

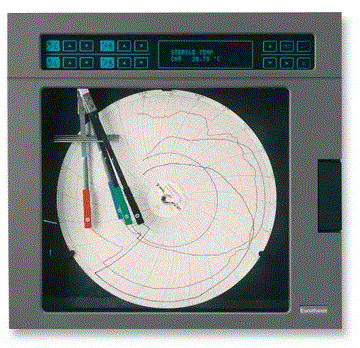

Paper recorder has large maintenance work
Therefore, many paperless recorder manufacturers have been committed to using new technologies to improve the performance of recorders, such as microcomputer technology, thermal head technology, inkjet technology, etc. Since the 1990s, with the development of ultra large scale integrated circuit technology and liquid crystal graphics display technology, major automation instrument manufacturers abroad have begun to develop a new generation of recorders - paperless and note free recorders. Its appearance has aroused great interest from domestic users and instrument manufacturers, and also indicates the arrival of the paperless recording era. The paperless recorder with 8 channels was thus developed.Around 1992, many foreign companies launched Data acquisition recorder, among which the more representative ones were the Datavis A paperless recorder from Hartmann Laon (H&B) in Germany and the paperless recorder from Panny&Giles Teletrend in the UK. Teletrend's paperless recorder 2 has a standard size of 144 × 144mm and comes with a 3.5-inch disk drive that is fully compatible with PCs. It is easy to transfer or save data from the table to the disk, and can store working data from one day to 640 days (depending on the recording interval). It has four channel bar charts, digital display, and medium range trend curve display functions. The working mode of the paperless chart recorder can be selected through software configuration. Its biggest feature is the use of a color oscilloscope tube as the display, which has color display function.
H&B's Datavis A paperless recorder (³) adopts a small 72 × 144mm casing and a monochrome LCD graphic screen with a resolution of 92 × 200 as the display. It allows four channels of standard signal input and also has three major functions: bar chart display, digital display, and historical trend display. Complete configuration and normal operation under German, English or French prompts, with standard communication interfaces.

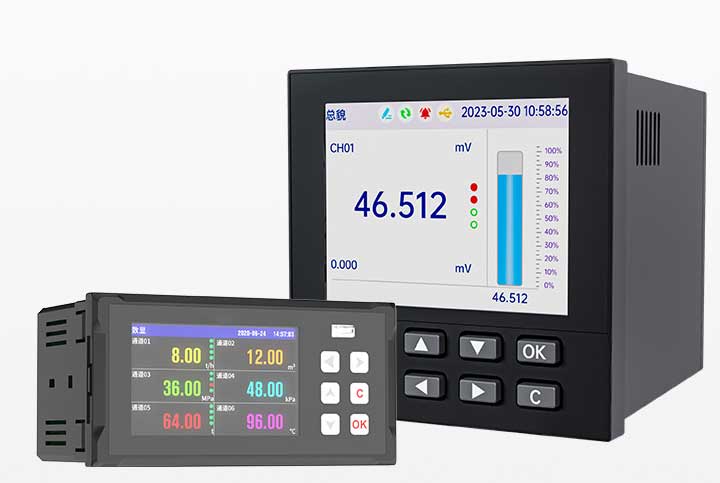

China paperless recorder is developing fast
The development of paperless chart recorders in China was carried out at about the same time as that in foreign countries. The National Engineering Research Center of Industrial Automation of Zhejiang University took the lead in investing a large amount of manpower and material resources in the development of paperless recorders in the early 1990s, and completed the development work in June 1994. It entered the field trial phase, began mass production in 1995, and put it on the domestic market. 8 channels data recorder has been invented since then.

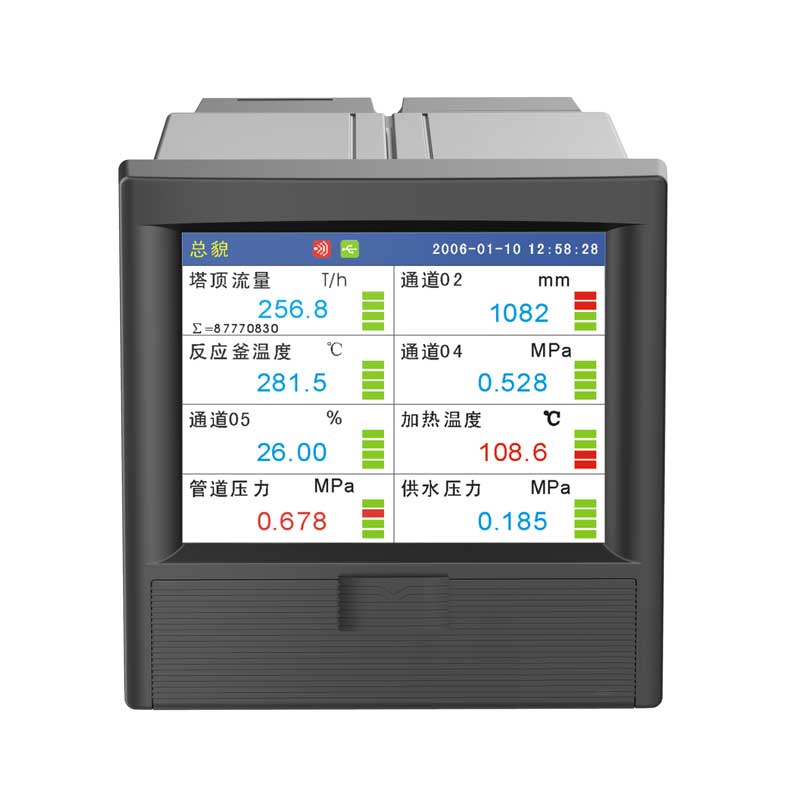

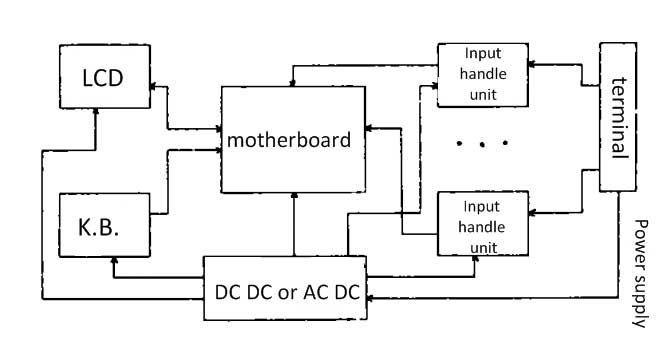

The 8 channels paperless recorder consists of five main parts
a. Motherboard: The motherboard has a CPU, 32KROM, 512KRAM, etc.
b. LCD graphic display screen: It adopts a monochrome graphic screen with backlight, which can work in dark places.
c. Keyboard: A membrane keyboard with some keys that can complete configuration and normal operation functions.
d. Power supply unit: allows 24VDC or 220VAC 50Hz power supply, with a power of less than 5W.
e. Input processing unit: maximum 8 channels input signals are processed through phase .After processing by the corresponding input processing unit, it becomes a unified internal standard signal. All input processing units adopt isolated inputs and have zero shift and range adjustment functions.

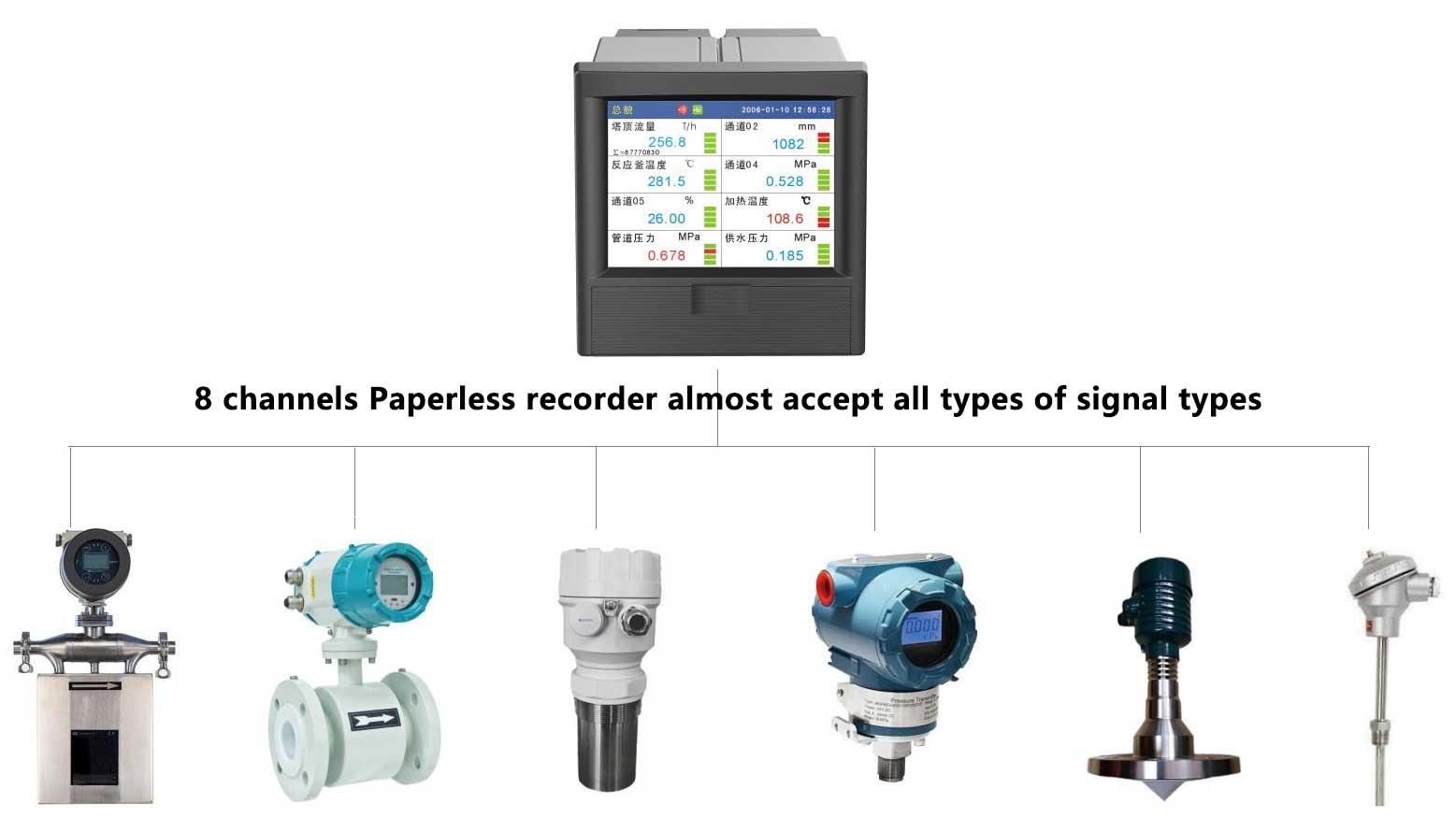

a. Input. Input signal: 8 channels panel paperless recorder, allowing all types of signals to be directly input. Input signals include: 0-10mA, 0-5V, 4-20mA, 0-20mA, 1-5VDC, thermocouples (E, K, S, B, etc.), thermistors (Pt100, Cu50), and frequency signals. Input channel, freely combined by users, and allowing different types of signal input for each point.
8 channels Paperless recorder almost accept all types of signal types

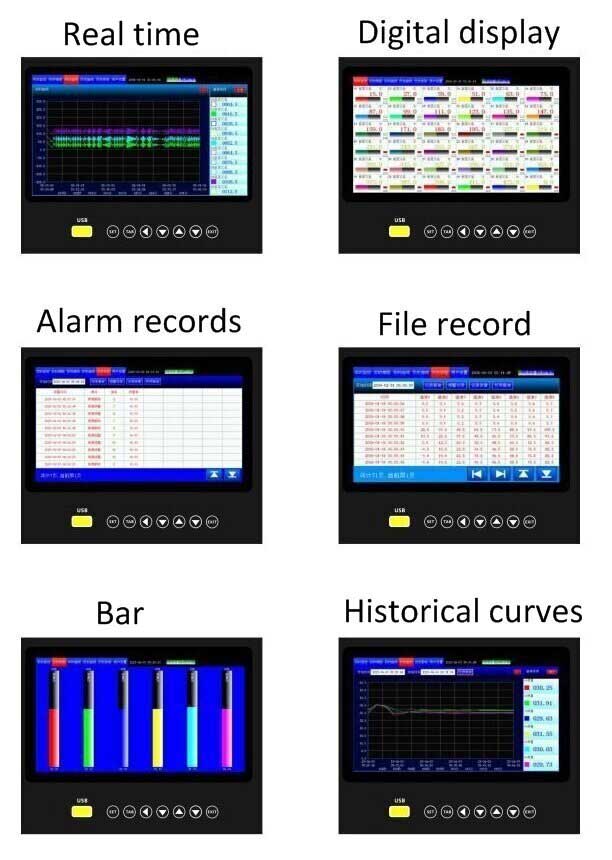

b. Dual display. The same channel can display both as a percentage and as a quantity, making it very convenient to monitor parameters.
c. Real time trend display. On the same page, two curves can be displayed simultaneously. Different recording intervals can be selected through configuration, and the time scale can be adjusted to zoom in or out at any time.
d. Historical trend display. According to different recording intervals, it is possible to recall trend curves ranging from a few days to several months, and the shortest recall can be within 40 seconds, from beginning to end.
e. Bar chart. 8-channel bar chart indication, convenient for remote observation, and also has upper and lower limit alarm setting signs, which can timely understand the alarm situation of each channel.
f. Display curves in full dynamic mode. Under limited resolution, automatically zoom in or out based on the actual fluctuation of each channel to ensure the highest display accuracy.
g. Digital display function. Two horizontal bar charts, tag numbers, and 20 × 20mm four digit measurement values (engineering quantity) of two channels can be displayed on the same screen, and it has automatic loop display and manual display functions.
h. Alarm function. All 8 channels Process recorder have upper and lower limit alarm functions, and the upper and lower limit alarm settings can be set arbitrarily through configuration. Any channel alarm will be indicated in English on the real-time trend display screen, and the alarm conversion contact will switch, making it easy to connect with the alarm system.
i. Configuration. The configuration function provides three fully localized configuration screens, which can be configured without training. The configuration functions include:
j. Record. Each channel can record 61440 data points, totaling 491520 data points across 8 channels; The duration of data storage is determined by the recording interval, ranging from a minimum of 17 hours to a maximum of 170 days. The longer the recording interval, the longer the storage time.
k. Power failure protection. All recorded data and configuration information will not be lost due to power failure, with a protection time of up to six months.
l.Real time clock. The table provides a century old calendar clock that can still time normally even after power failure.

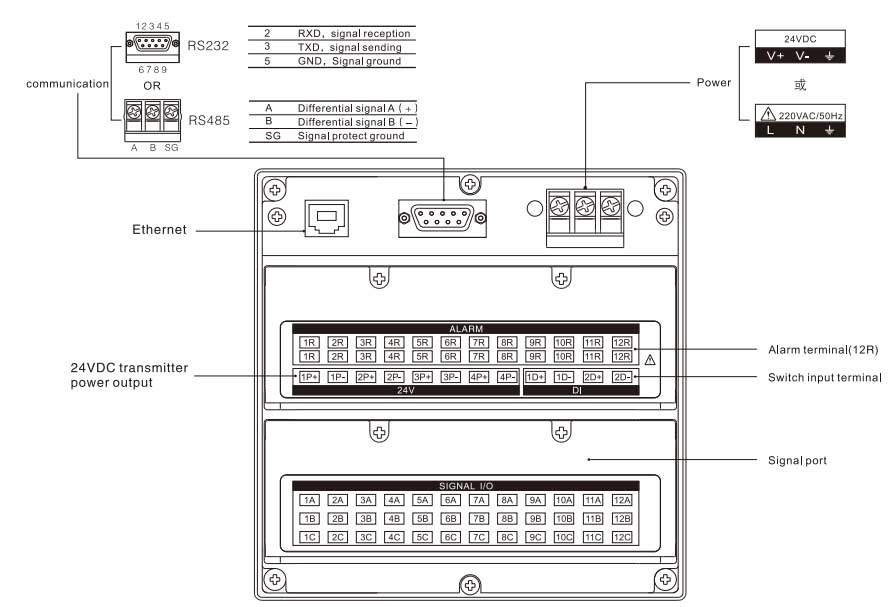

m. Communication. Provide two communication ports RS-232C or RS-485, which can easily exchange information with ordinary computers. According to user requirements, PC processing software can be provided, including functional modules such as table printing, curve printing, data analysis, curve display, and data saving. Currently silverinstruments.com offer E-thernet 8 channels paperless recorder.
RS485 or RS232 Communication
n. Encryption. Provide a 6-digit password, only by passing the password can configuration information be modified and the password be reset.
o. Real time display accuracy of engineering quantity ± 0.1% curve display accuracy ± 0.4% recall accuracy ± 0.4% bar graph ± 0.5%
p. 8 channels chartless recorder with backlight. Equipped with backlighting function, allowing for use in completely dark or dimly lit environments.
q. Power supply. DC 24V ± 10%, 200mA; AC 220V ± 10%, 5VA, 50Hz.
r. Size: 144 × 144 × 249mm or larger size

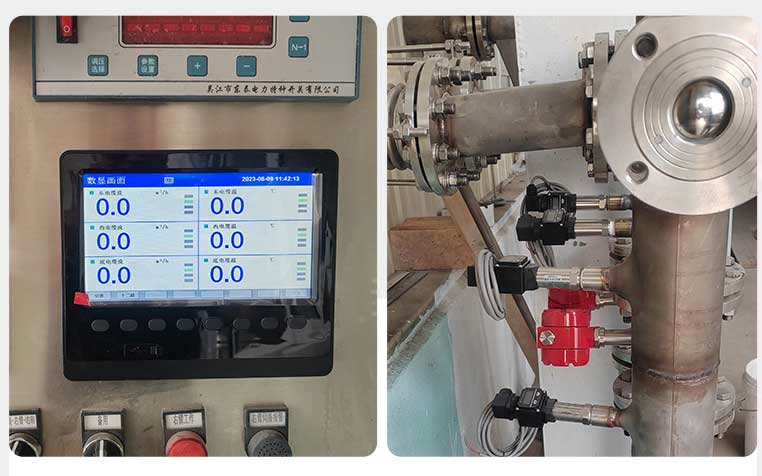

Wide applications of paperless recorders
The paperless recorder with 8 channels inputs, as a new generation recorder combining microprocessor technology, ultra large capacity storage, and graphic LCD display technology, has very obvious characteristics:
High reliability
Traditional paper recorders always rely on servo drives and transmission mechanisms, making them the instruments with the highest failure rate and the largest maintenance workload among all secondary instruments; The paperless and note free recorder makes the recorder a fully electronic instrument, without any mechanical transmission components inside, and its reliability will be greatly improved.
No need for daily maintenance on 8 channels industrial paperless chart recorder
Ordinary recorders cannot do without paper and pen, which are consumables that need to be replaced frequently, increasing the daily maintenance workload. Paperless recorders with 8 channels inputs completely eliminate paper and pen, making it impossible to replace them, greatly reducing the workload of instrument workers.
Daily operating costs are zero
The daily operating costs of ordinary recorders include two major parts: one is the replacement of paper and pen, which account for a considerable part of the cost, such as the latest inkjet recorder launched in the market, which requires the replacement of two inkjet heads and one box of recording paper per year, totaling about 2000 yuan; The second is the replacement and maintenance of mechanical movable components. And paperless and note taking devices do not require money to replace paper and pens, and the lifespan of electronic components is much longer than that of mechanical movable parts. Within the normal service life, there is no need to spend money to replace their electronic components.
Functional Diversity
This is obvious. As mentioned earlier, the 8 channels paperless chart recorder is a product that combines CPU, ultra large capacity storage, and liquid graphics display technology. It has functions that are unparalleled by ordinary recorders:
a. High resolution bar shaped display function
b. Digital display function with large font size
c. Convenient and highly precise curve recall function
d. Compression and amplification function for displaying curves
e. Extremely friendly configuration interface
f. Create conditions for data reprocessing, processing, and utilization, such as conducting system analysis, modeling, etc
High Performance but with low price cost
Due to its strong functionality and no need for daily operating costs, its comprehensive usage price is much lower than that of ordinary recorders.
Due to its numerous advantages, chartless recorders have attracted great attention from users, and it can be predicted that they will be widely accepted by users in the near future.
