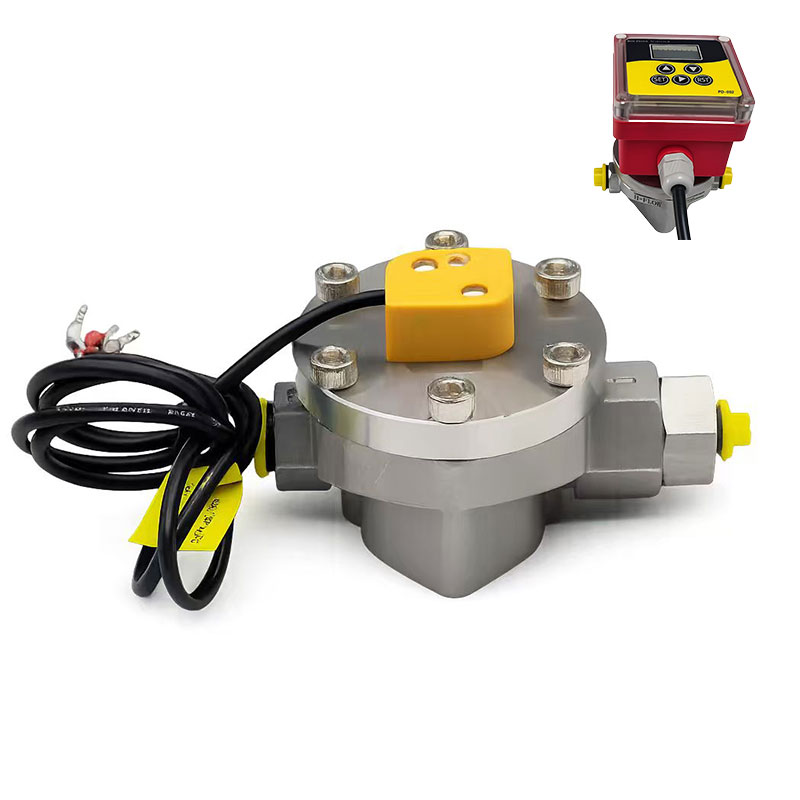

Name: LC-M-ESP Series Small Oval Gear Flow Meter
Brand: SILVER AUTOMATION INSTRUMENTS
Availability: InStock

LC-M-ESP Series Small Oval Gear Flow Meter

Small Flow meter for high viscosity liquid

Suitable for high viscosity and low flow rate liquid, min flow it can detect is 0.004 l/m, it can measure polymer, resin, glue, wax, syrup ,grease flow rate.

Small Coriolis flow meter/mass flow controller

Coriolis principle small flow meter/flow controller, Best accuracy mass flow meter for gas, liquid and steam. It can detect 40 g/h flow or even lower.

LC-M-ESP Series Small Flow Oval Gear Flow Meter

The LC-M-ESP series is a positive-displacement (oval gear) flow meter designed for precise continuous or intermittent measurement of liquid flow rate and totalized volume in pipelines. It is especially well suited to high-viscosity, high-pressure applications such as heavy fuel oil, polyvinyl alcohol (PVA), and resin, and is capable of accurately measuring very low (micro) flow rates.

Key Features

Higher medium viscosity means less internal gear leakage — and better measurement accuracy.
Standard accuracy ±0.3% of reading (SF0.3%) with a turndown ratio up to 100:1.
Compact and lightweight; low vibration and noise during operation.
No upstream or downstream straight-pipe-run required.
Suitable for pulsating flow, micro-dosing, and short-duration batching applications.

Model Selection:

Code	K Factor	Flow Range (ml/min)	Process Connection	Shell	Gear	Pressure
LC-M-ESP20	0.11 mL/p	6.6~400	G1/4"	Cast 304 SS	PPS	200 / 400 bar
LC-M-ESP50	0.25 mL/p	15~900	G1/4"	Cast 304 SS	PPS	200 / 400 bar
LC-M-ESP100	0.5 mL/p	30~1800	G1/4"	Cast 304 SS	PPS	200 / 400 bar
LC-M-ESP500	2.5 mL/p	150~9000	G1/4"	Cast 304 SS	PPS	200 / 400 bar
LC-M-ESP1700	8.5 mL/p	500~30000	G1/2"	Cast 304 SS	PPS	50 / 400 bar
LC-M-ESP4600	23.0 mL/p	1300~83000	G1"	Cast 304 SS	PPS	50 / 400 bar

Category	Code	Description
Pressure	P8	Custom pressure rating (X bar) – please specify required value
Temperature	T1	-40 ~ 80°C
Display	x	No display (pulse output)
	D	Integrated (built-in) display, with 4-20 mA and Modbus output
	FT	With remote flow totalizer / display, 1 m cable – selectable 4-20 mA or Modbus

Selection Example

LC-M-ESP500-P8-T1-D

• LC-M-ESP500: flow range 150~9000 ml/min, K factor 2.5 mL/p, G1/4" connection, cast 304 stainless steel shell, PPS gear, pulse output

• P8: custom pressure rating – to be specified (e.g. 200 bar / 400 bar)

• T1: operating temperature -40 ~ 80°C

• D: integrated (built-in) display, with 4-20 mA and Modbus outputLC-M-ESP_Small DP Flow Meter
