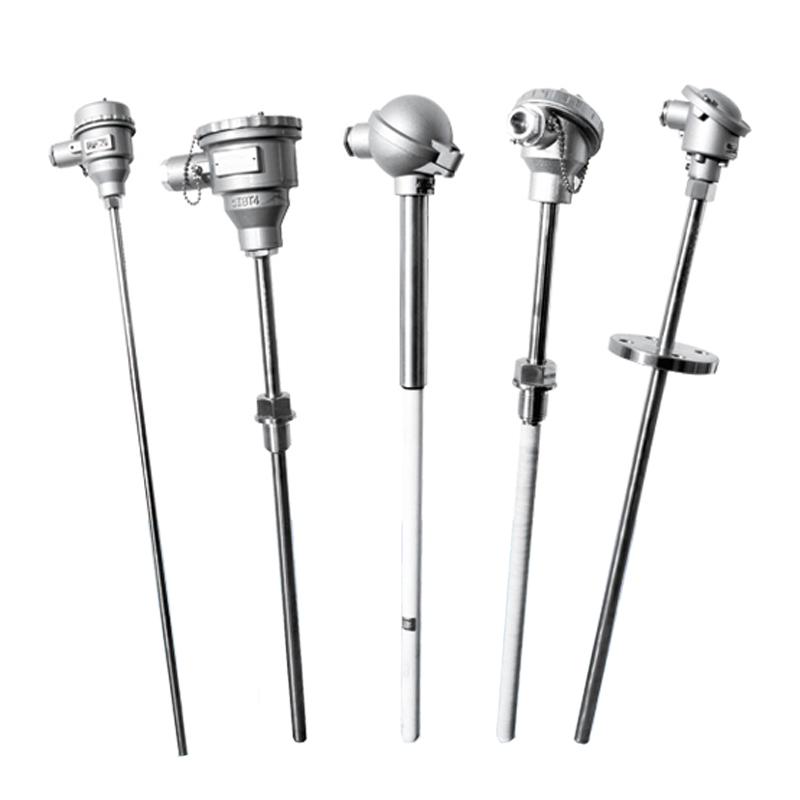

Temperature element for Cyclone
Type K Ungrounded, Single Element
Sheath Material: Inconel 600 thermocouple
Sheath Diameter: 8.0mm
Nipple Material: SS316
Union Material: SS316
Connection: 1/2" NPT
with Cast Aluminum Head, IP67
Length: 700mm
Thermowell for seal pot
Connection: 2" x 150 lbs, RF
Straight Close End Tube Well
Material: SS310
Length: 570mm
Outside Diameter: 32mm
Wall Thickness: 4.55mm
with 100mm Stellited end
