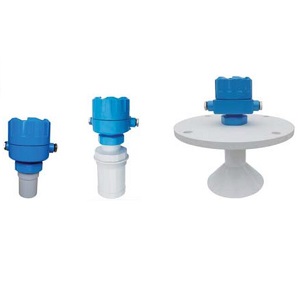

HLUB Series 3-wire ultrasonic level meter  transmitter

HLUB Series 3-wire ultrasonic level meter transmitter

Range:HLUB4:0.20~4m HLUB6:0.25~6m HLUB8:0.30~8m
HLUB10:0.40~10m HLUB15:0.60-~15m HLUB20:1.20~20m
HLUB30:1.40~30m HLUB40:1.60-~40m
Accuracy:0.2% Full Span(In air)
Mode of Indication:4 Digit LCD
Output Current:4-20mA(or with Hart)
Output Load:0-500Ω
Relays:2 relays(high and low);5A 250VAC/30VDC
Parameter Set Up:3 indicator buttons
Temperature RanBe:-40℃~80℃
Temperature Compensation:The whole range
Pressure RanBe:±0.1MPa(press definitely)is automatic
Power Supply:DC20-32v ≥60mA OR AC85~265V ≥50mA
Cable Fix:PG13.5
Beam AnBle:8°(3db)
Measure Cycle:1 second
Crust Material:AL
Sensor Material:PVC or PTFE
Protect Brade:IP67
Mode Installation:Worl(G2),Flange
