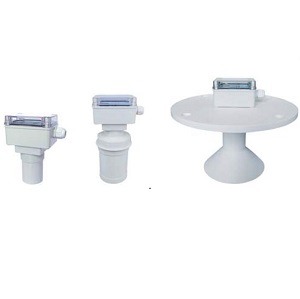

HLUP Series 3-wire ultrasonic level Transmitter

Related Products

High pressure Coriolis flow meter

Max work on 700 bar high pressure. The high pressure type flow sensor is needed in such as chemical injection or hydrogen fueling station.
Ultrasonic Open Channel Flow Meter

Ultrasonic Open Channel Flow Meter 4-20mA & MODBUS-RTU standard For Weir and flume flow measurement.

Range:HLUP4:0.20~4m HLNG6:0.25~6m HLUP8:0.30~8m
HLUP10:0.40~10m HLUP15:0.60-~15m HLUP20:1.20~20m
HLNG30:1.40~30m HLUP40:1.60-~40m
Accuracy:0.2% Full Span(In air)
Mode of ultrasonic level transmitter Indication:4 Digit LCD
Output Current:4-20mA(or with Hart)
Output Load:0-500Ω
Relays:2 relays(high and low);5A 250VAC/30VDC
Parameter Set Up:3 indicator buttons
Temperature RanBe:-40℃~80℃
Temperature Compensation:The whole range
Pressure Range:±0.1MPa(press definitely)is automatic
Power Supply:DC20-32v ≥60mA OR AC85~265V ≥50mA
Cable Fix:PG13.5
Beam AnBle:8°（3db）
Measure Cycle:1 second
Crust Material:ABS
Level Sensor Material:PVC or PTFE
Protect Level :IP67
Mode Installation:Worl(G2),Flange
