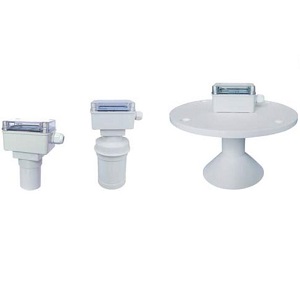

HLNP Series 3-wire ultrasonic level Transmitter

HLNP Series 3-wire ultrasonic level Transmitter

Range:HLNP4:0.20~4m HLNP6:0.25~6m HLNP8:0.30~8m
HLNP10:0.40~10m HLNP15:0.60-~15m HLNP20:1.20~20m
HLNP30:1.40~30m HLNP40:1.60-~40m
Accuracy:0.2% Full Span(In air)
Mode of Indication:4 Digit LCD
Output Current:4-20mA
Output Load:0-500Ω
Parameter Set Up:3 indicator buttons
Temperature RanBe:-40℃~80℃
Temperature Compensation:The whole range
Pressure Range:±0.1MPa(press definitely)is automatic
Power Supply:DC20-32v ≥60mA
Cable Fix:PB13.5
Beam Angle:8°(3db)
Measure Cycle:1 second
Crust Material:ABS
Sensor Material:PVC or PTFE
Protect Brade:IP67
Mode Installation:Worl(G2),Flange
