This article will focus on the various
types of d electronic flow meter and their
benefits.Also we will talk about Electronic flow meter price.
Electronic Thermal mass flow meters consist of a set of gas flow sensor that help in gauging the overall flow rate of air or gases which go through any sort of ducts or enclosed pipeline. The flow rate of the gases and air are measured by the heat dispersed from the heated surface to the fluids in the conduit. Digital thermal mass flow meter revolutionized the ease of gauging the measurements of the flow rate of liquids or gases.
This electronic gas mass flow meter does not require repeated rectification for any shift in viscosity level, the density of gases or pressure changes in the ducts. The uniqueness of digital thermal mass flow meter lies in its accuracy to measure even the smallest changes and capture the fluctuations in temperature, pressure or density. This gas flow transmitter can flaunt of having an accuracy rate of 1% Full Scale. They also have a commendable turndown ratio of 50:1.Electronic thermal mass flow meter can measure natural gas, biogas, compressed air, N2,O2.,etc.Gas flow transmitter with digital display to show gas total flow and flow rate, it can also current or pulse output, MODBUS or HART Protocol.

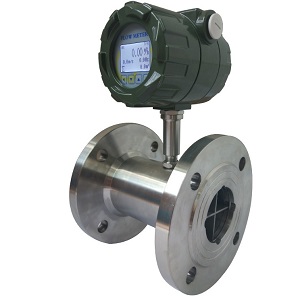

A electronic turbine flow meter is a very robust and economical flow sensor used for gauging the flow of liquid or gas in various scenarios, be it in Effluent Treatment Plants (ETP), Sewerage Treatment Plants (STP), or in case of Reverse Osmosis (RO).
Electronic turbine flow meters are relatively easy to operate and are used to measure flow rate at a volumetric scale. When the fluid hits the turbine, the turbine starts rotating thereby generating an angular velocity. This angular velocity increases with an increase in liquid velocity whose output is measured and noted down it can measure minor fluctuations in flow rate by generating high-frequency pulse motion. Electronic turbine flow transmitter with digital display, 4-20mA output or frequency output, it is powered by 24V DC.
As the name of the equipment suggests, electronic magnetic flow meter works on the concepts of Faraday's Law to gauge the volumetric flow in wastewater treatment plants. Magmeter can measure the fluid flow rate in situations where there are low-pressure drops.
An electronic magnetic flow meter is fitted with an electromagnetic coil which in the presence of electricity produces a magnetic field that helps in measuring the flow. The electromagnetic flow meter sensor experiences no pressure loss and has no movable parts. It can easily detect contaminants present in the fluid but it needs electrical conductivity to do so. Most importantly it does not require elaborate maintenance and remains uninfluenced by temperature or density of fluids. Electronic magnetic flow transmitter with 4-20mA output, pulse output, digital indicator and various protocols, such as PROFIBUDS-DP, HART, MODBUS.,etc.
This Eletronic mass flow meter can measure different types of flows pertaining to volume, temperature, density, and mass. It is expensive and works within a restricted range of temperatures. It comes very handy in oil and gas plants, waste and chemical plants as well as food and pulp plants, this type electronic mass flow meter especially good at measuring high viscosity fluids flow rate.
As the name suggests, the electronic coriolis flow meter works on the concepts of the Coriolis Effect. The flow rate is measured through Coriolis force which is produced perpendicular to the fluid motion and its rotation axis. When the device is set to motion it sets the frequency of the fluid to its resonating frequency. It is very easy to implement and can measure the flow directly.
Digital vortex flow meters are very popular due to its adaptability to measure liquid, steam, and other gases. They are popularly used in facilities where steam is heavily used. Eletronic vortex shedding flow meters are used in power production plants, energy plants, and heavy industries. It works as per the concepts of the vortex shedding principle where the fluid is made to move through an object which in turn produces a series of vortexes.
Digital vortex flow meters are equipped with cut-off points and have a viscosity range between 7 centipoises and 31 centipoises. It can sustain in high-temperature ranges and hence it is ideal for measuring steam flow rate. If the Reynolds numbers cross over 30,000, the inaccuracy rate of a vortex flow meter can be pegged at around 0.5% to 1%.
Electronic flow meter price varies
according to different factors, such as flow meter type, flow meter sensor
size, flow meter functions, flow meter process connection. Please contact firstname.lastname@example.org and send
your electronic flow meter request to them, they will choose the proper type electronic
flow meter at reasonable or low price cost.
