Oil Filled Diaphragm Seal Pressure Gauge with Capillary

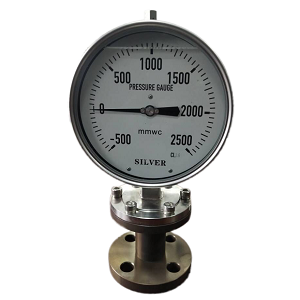

Low Pressure Diaphragm Seal Pressure Gauge (-500~2500 mmWC)

Dialsize: 150mm. oil filled type, not dry type pressure gauge. (With liquid filled case for applications with high dynamicpressure pulsations or vibration)Case and ring Material: 304 StainlessSteel.We...

Glycerine Filled Pressure Gauge

What is a Glycerine Filled PressureGauge?Glycerine filled pressure gauges arerobustly constructed which gives them a very unique design and more reliabilitybecause it gives an extra opportunity of lif...

Oil Filled Diaphragm Seal Pressure Gauge with Capillary is designed for corrosive, viscous or high-temperature media. The system isolates the measuring element from aggressive fluids via diaphragm seal and 5m capillary, while the oil-filled gauge dampens vibration for stable pressure measurement readings.

Product Parameters：

Stainless steel Pressure Gauge and oil filled (not dry type)
Diaphragm seal with capillary (capillary length 5m)
Capillary material: stainless steel 304
Pressure Gauge Dial Size: 150 mm (6 inch)
Process connection: 1” ANSI, B16.5 ,150LB RF flange
Diaphragm material: Stainless steel 316L, option with Titanium or tantalum, it can take measurement of aggressive liquid such as NaClO sodium hypochlorite,wet chlorine,hydrochloric acid (HCL).,etc.
Flange material: SS316+PTFE lined
Measuring range: 0-6kg/cm2 or option other pressure range.

What is Diaphragm pressure gauge?

Diaphragm pressure gauge is composed of a diaphragm isolator and a pressure gauge. The process connection of the diaphragm pressure gauge includes thread, flange connection and sanitary tri- clamp type. Chemical seal pressure gauge is suitable for measuring the pressure of the fluids with strong corrosion, high temperature, high viscosity, easy to crystallize, easy to solidify, and solid floating matter. It is necessary to prevent the measuring medium from directly entering the general-purpose pressure instrument and prevent the accumulation of sediment and easy cleaning.
