SILVER AUTOMATION INSTRUMENTS LTD.

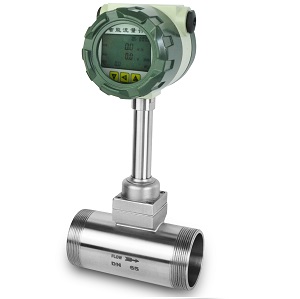

STLU-7-B0 Series Thread connection Vortex flow meter

STLU-7-B0 Series Thread connection Vortex flow meter

STLU-7-B0 Series Thread connection Vortex flow meter is a volumetric flowmeter that measures the volumetric flow rate of a gas, steam or liquid, the principle of Karman vortex. It is mainly used for flow measurement of industrial pipeline medium fluids, such as gas, liquid, steam.

Typical application

Steam flow meter                                    Air flow meter
Biogas flow meter                                   Methane gas flow meter
Gas flow meter                                        In-line air flow meter
Compressed air flow meter                    CO2 gas flow meters
Oxygen(O2) Flow Meter                          Helium gas flow  meter
LPG Gas Flow meter                                 nitrogen flow meter/N2 Flow Meter
Digital hot water flow meter                    Digital Water Flow Meter
KEROSENE flow meter                              Methane gas flow meter

Features

In-line thread process connection vortex flow meter, sensor size up to DN65mm
Powerful and easy configuration vortex flow transmitter
Easy installation
All stainless steel vortex flow meter
Small pressure loss
Large measuring range and high accuracy
Accurate flow measurement is not affected by the fluids density, pressure, temperature, also viscosity
No moving mechanical parts inside the vortex flow sensor, so high reliability and low maintenance
Low price cost flow meter
Can be made into high temperature flow meter

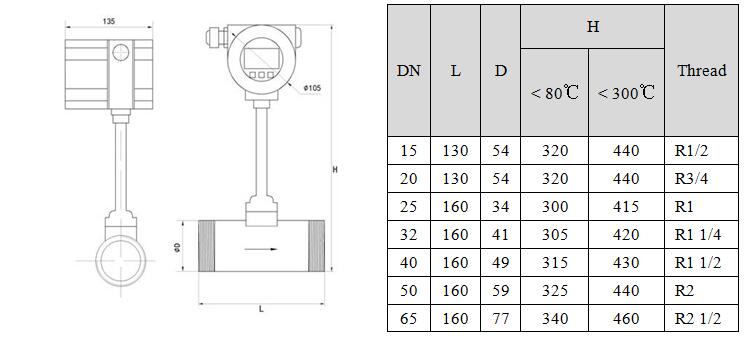

Thread process connection Vortex flow meter dimensions
