Milk flow meter

Milk flow meter

Milk is rich in nutrients such as protein, fat, vitamins and minerals, and milk protein contains amino acids necessary for the human body; Milk is both a drink and a vital ingredient in many non-food products such as cosmetics. Right from the collection of the milk from the dairy, right through to the formulation and processing of the final product, measurement of milk is vital. Precise measurement is necessary for sales volume calculation, inventory control and precise process control to ensure product quality and repeatability.

But milk products come in a lot different forms with not the same densities, viscosities and flow characteristics that can make accurate measurement not easy. However, with the help of mag meters, we can take milk accurately; we can find a perfect and low cost milk flow meter for a milking system.

SHD Series Magnetic flow meters have the ability to take accurate flow measurement for many kinds’ milk products, a suitable dairy flow meter.

•    Whole milk and raw milk, cold milk, fresh cow’s milk
•    Standardised milk of 0.3% - 3.8% fat
•    Ewe's and goat's milk •
•    Soy milk
•    Extended Shelf Life (ESL) milk
•    Condensed milk and coffee cream
•    Cream
•    Yoghurt and kefir
•    Buttermilk and soured milk
•    Whey
•     coconut milk

The same metering devices may be used to measure accurately the quality of milk collected by the road tanker in accordance with weights and measurement regulations; during processing to accurately measure and control flow rates and additive dosing levels (for example fruit); and control the filling process at the end of the production chain. Electromagnetic flow meters do not have any moving parts and are suitable for use at high temperatures or under vacuum conditions.

Why use magnetic flow meter for milk volumetric flow measurement?

Milk is extracted with weak acid and alkali, the combination of PFA or Teflon lining and 316L electrode material can meet the needs of the milk. Milk flow transmitter is using EEPROM memory, the measurement and calculation data storage protection is safe and reliable inside the flow meter.

Mag meter adopts a new type of sanitary lining material and lining technology, which meets the hygienic requirements of the food industry. At the same time, dairy flow meter has a stainless steel casing and a stainless steel in line tri-clamp or tri-clover union process connection, which facilitates the rapid disassembly and cleaning of the electromagnetic flowmeter sensor. Sanitary flow meter is not easy to be contaminated, and can effectively prevent the accumulation of measuring fluid residues in the measuring tube without the moving parts inside the flow measuring tube. It can be widely used in the production and manufacturing process of mineral water, soy sauce, jam, beer, juice, rice wine, milk and other foods, as well as in the fields of hygiene and chemical engineering.

Digital milk flow meter has digital display, 24VDC or 220V AC power supply, with digital outputs,4-20mA or pulse output, possible remote or integral indicator. It option with HART, PROFIBUS-DP protocol, also available with RS485, MODBUS communication.

Milk Flow meter price

Magnetic flow meter can be used to measure milk volume flow at low price cost , for example , all stainless steel electromagnetic flow meter for milk , one inch size , tri-clover connection , the price is around 500$.

Liquid turbine flow meter for milk

However liquid turbine flow meter can also be used to measure milk, it has stainless steel wet parts material, tri-clamp connection and good accuracy.

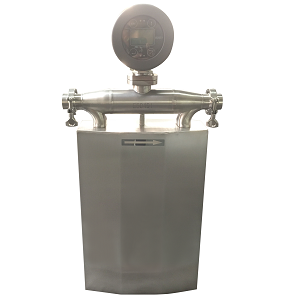

Best flow meter used in dairy industry-Coriolis flow meter
