The 3/8" fuel flow meter is a precision fuel flow measurement instrument specifically designed to measure the flow of small diameter fuel. The "3/8" in its name refers to the size of the connection port of the flow meter, which is equivalent to a pipe diameter of approximately 9.525 millimeters (mm). That is to say, there is a very high possibility that the size of the pipeline connecting this flowmeter is also 3/8" . This compact flowmeter plays an irreplaceable role in situations where precise monitoring of low flow fuel applications is required.

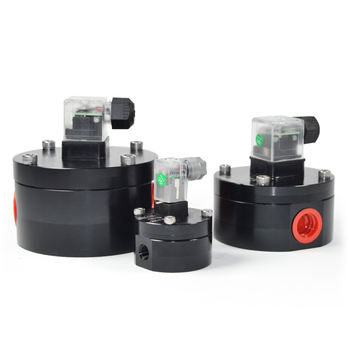

3/8”flow meter refers to the connection port of the flow sensor is 3/4”inch
From a technical perspective, 3/8" fuel flow meters typically use high-precision measurement principles, such as turbine flow meter, gear flow meter, or Coriolis mass flow meters, to accurately capture and record the instantaneous and cumulative flow of fuel. Their measurement range is generally between 0.1-30 liters per minute (depending on the model), making them particularly suitable for monitoring small flow fuel systems. The main materials of these flow meters are often stainless steel, aluminum alloy, or high-strength engineering plastics, ensuring durability and chemical compatibility with fuel.

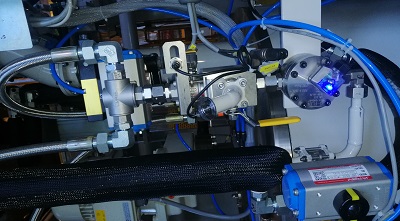

3/8 inch flow meter for monitoring small fuel systems
Where are 3/8" fuel Flow meter used?
3/8" uel flow meters are widely used in various industrial fields due to their small diameter and high precision characteristics
1. Aviation field : Used for small aircraft, drones, and helicopter fuel systems, monitoring engine fuel consumption rates to ensure flight safety and economy. In aviation applications, the reliability and accuracy of flow meters are crucial, and any measurement error can lead to serious fuel calculation errors.
2. Automotive testing: Used in engine development and performance testing to accurately measure the flow characteristics of fuel injection systems. Automakers and research and development institutions use this data to optimize engine design, improve fuel efficiency, and meet increasingly stringent emission standards.
3. Industrial combustion equipment: Fuel supply monitoring for small boilers, generator sets, and industrial heating systems. These applications require a continuous and stable fuel supply, and flow meters help operators maintain optimal combustion efficiency.

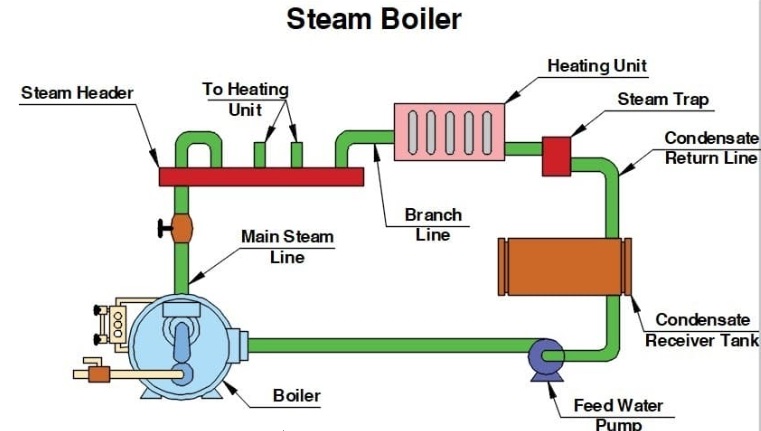

Small boilers may need 3/8” fuel flow meter
4. Laboratory research: Provide accurate flow data in scientific research projects such as fuel additive effectiveness testing and new engine development. Research grade flow meters often require higher accuracy and more complex data output functions.

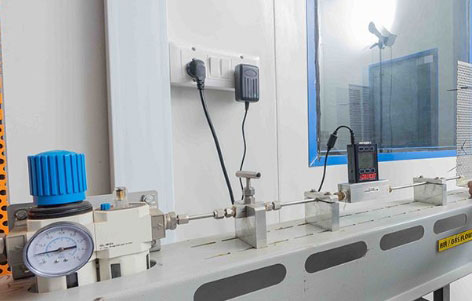

3/8 inch flow meter for laboratory research
5. Ship Auxiliary Power System: Used for fuel monitoring of auxiliary engines in small or large vessels, helping to optimize fuel usage and navigation plans.

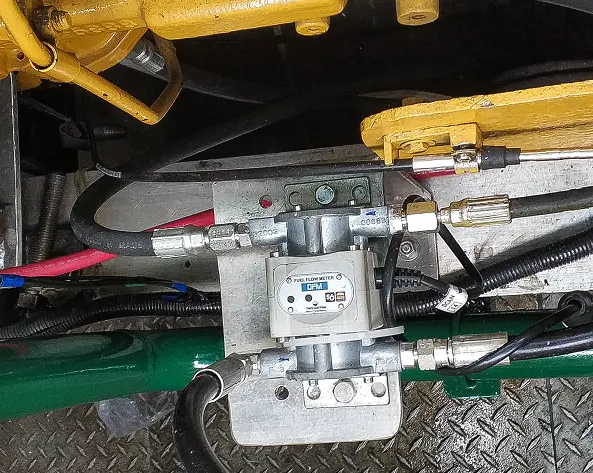

3/8” inch small flow meter for vessel fuel measurement
What are the technical difficulties in measuring low flow fuel?
Measuring small diameter fuel flow faces multiple technical challenges:
The sensitivity issue caused by extremely low traffic is the primary difficulty. At a diameter of 3/8inch, the fuel flow rate may be very slow, such as only 10ml/min or 50 ccm , and traditional flow measurement techniques may not be able to accurately detect such weak flow signals, for example turbine flow meters or metal tube rotameters. This requires flow meters to have extremely high sensitivity, able to distinguish small flow changes while maintaining measurement stability.
The impact of changes in fuel characteristics cannot be ignored. Different types of fuels (such as gasoline, diesel, aviation kerosene, etc.) have different viscosity, density, and lubrication characteristics, which change with temperature and directly affect the measurement accuracy of flow meters. A high-quality 3/8 "fuel flow meter needs to be able to compensate for these physical property changes or maintain consistent measurement performance across various fuel types.
The installation condition restrictions have increased the difficulty of the application. Small diameter systems typically have limited space and require compact flow meter structures without excessive pressure loss due to installation. In addition, environmental factors such as pipeline vibration and temperature fluctuations have a more significant impact on small flow measurement, and special design is needed to eliminate these effects.

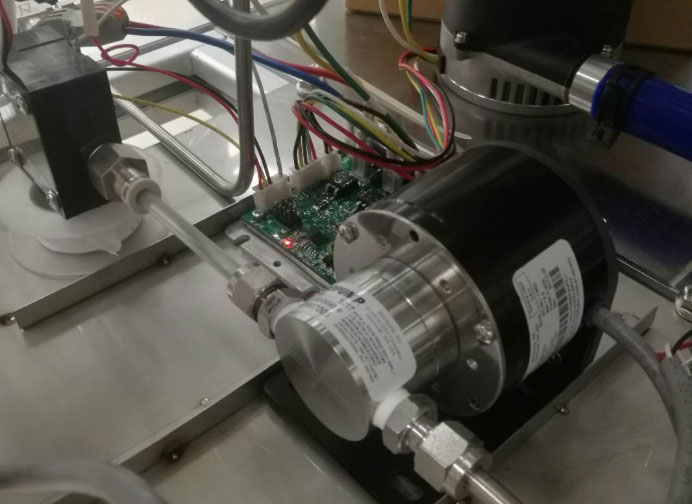

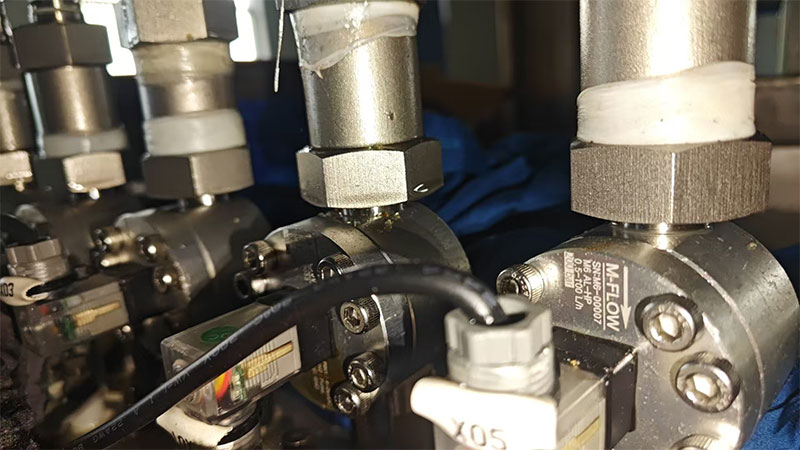

Small diameter systems have limit space
Long term stability maintenance is another challenge for small flow measurement. Fuel may contain small particles or impurities that may affect the mechanical components or sensors of the flow meter over time. An excellent 3/8 "fuel flow meter needs to have self-cleaning capability or anti pollution design to ensure long-term reliability.
3/8” Fuel Flow Meter Solution from silverinstruments.com
Silver Instruments has developed a series of micro positive displacement flow meters to provide professional solutions for the challenges of small flow fuel measurement mentioned above. This series of flow meters is particularly suitable for 3/8 "fuel pipeline applications and has multiple excellent features:
The core advantage of this flowmeter is its high-precision measurement capability. Adopting the principle of precision oval gear flow measurement (positive displacement flow meter), it can maintain a reading accuracy of ± 1% even at extremely low flow rates such as 0.5 ccm (ml/min), meeting the strictest fuel flow monitoring requirements. Its measurement range is as low as 0.1 liters per minute, fully covering the flow range of a typical 3/8 "fuel system. Below we list our LC-M series small positive displacement flow meter flow range it can handle:
Flow meter Code
Flow Range
LC-M2
0.5-150 ml/min
LC-M5.2
1-400 ml/min
LC-M5.1
1~800ml/min
LC-M6
0.5~100 L/H
LC-M9
6~600 L/H
LC-M12
0.3~30 L/min
LC-M25
0.5~100L/min
The small flow meter structural design fully considers the application characteristics of small pipe diameters 3/8 inches. The compact size facilitates installation in space constrained environments, and the optimized flow channel design minimizes pressure loss, avoiding affecting the normal operating pressure of the original fuel system. The product offers multiple interface options that can be easily integrated into existing 3/8 "piping systems, for example screw, flange, compressing fitting.

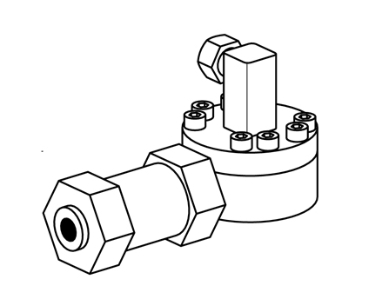

Small and compact design of 3/8” fuel flow meter
The selection of flow sensor materials reflects professional considerations. The components in contact with fuel are made of stainless steel or aluminum and special composite materials to ensure long-term corrosion resistance and dimensional stability. LC-M series small flow meter has undergone strict sealing testing to eliminate the risk of fuel leakage and meets industrial safety standards.
Rich and practical functional configuration. In addition to basic flow measurement, it can also provide various functional options such as batch control, MODBUS RS485, pulse output, and analog signal output to meet the needs of different application scenarios. The user-friendly interface design simplifies parameter settings and data reading operations.

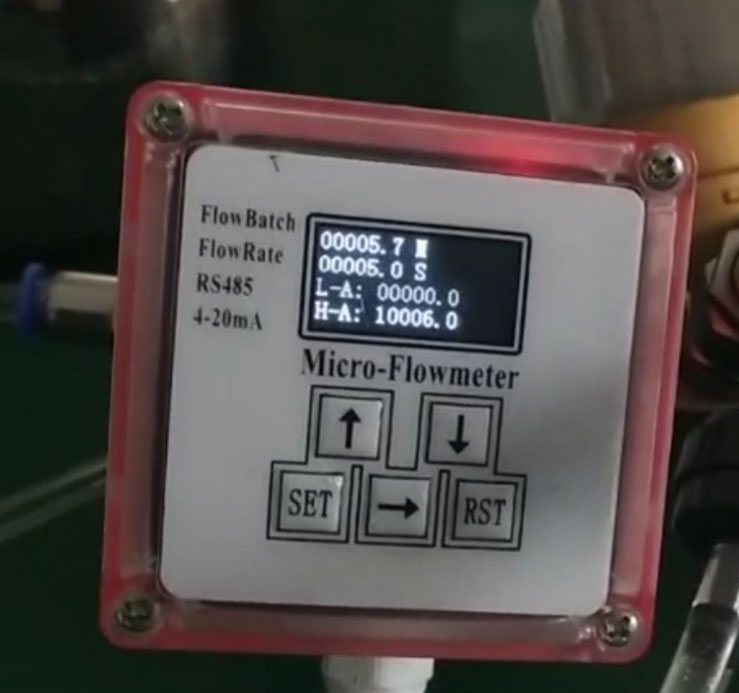

Option with user-friendly interface design for 3/4” fuel flow meter
How to choose a suitable 3/8” fuel flow meter?
When selecting a 3/8 "fuel flowmeter, the following key factors should be considered:
1. Flow range matching: Ensure that the minimum and maximum flow rates of the selected model cover the actual application requirements, and the ideal working flow rate should be within the range of 20% -80% of the range, and turn down ratio for small fuel flow meter is 10:1, that is if your max flow is 100 ml/min , then the min flow it can ensure accuracy is 10 ml/min.
2. Fuel type compatibility: Confirm that the3/8” fuel flowmeter is suitable for the specific fuel type being measured, considering viscosity range and chemical compatibility.

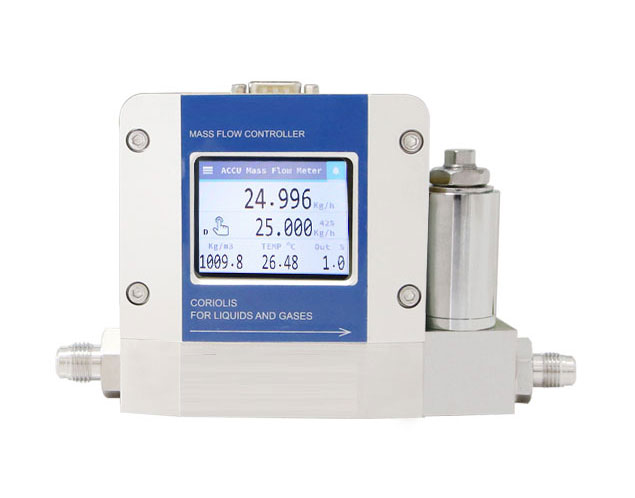

3. Accuracy Level Requirements: Choose an appropriate accuracy level based on the importance of the application. Laboratory applications typically require higher accuracy than industrial monitoring, silverinstruments.com have several options for 3/8” fuel flow meter, from Coriolis flow meter to positive displacement flow meter with different budgets.
4. Output signal type: We supply digital fuel flow meter, please select analog (4-20mA/0-10V) or pulse PNP or NPN output or digital communication (MODBUS RS485, etc.) interfaces according to the requirements of the data acquisition system.
3/8” fuel flow meter MODBUS RTU setting
5. Environmental adaptability: Consider the temperature, humidity, vibration and other conditions of the working environment, and choose products with corresponding protection levels.
Proper installation is equally important for ensuring measurement accuracy. Please use appropriate support to fix the pipeline to reduce the impact of vibration. Regular maintenance includes checking the status of the filter, verifying zero drift, and calibrating accuracy, which can significantly extend the service life of the flowmeter and maintain measurement reliability.
With the continuous improvement of fuel efficiency requirements and the increasingly strict emission regulations, small flow fuel measurement technology will continue to develop. As a professional tool in this field, the importance of 3/8 "fuel flow meters will be further enhanced, providing key data support for energy-saving optimization and precise control in various industries.
