What is Horizontal variable area flow meter?

Horizontal variable area flow meter is a flow measuring instrument commonly used in industrial automation process control. Horizontal rotameter can be used to measure the flow of liquid, gas and steam, and is suitable for low flow rate and small flow measurement in the chemical, pharmaceutical, food and beverage industries, especially in some complex and harsh working conditions. Vertical mounting variable area flow meter is normal construction; Silver Automation Instruments sell low price horizontal variable area flow meter.
Horizontal variable area flow meter is suitable for high temperature, high pressure and strong corrosive media; it can be used in hazardous area;

Fluids can be measured by Horizontal variable area flow meter

Horizontal variable area flow meter can measure below fluids:
Water, diesel, gasoline, kerosene, solvent, air, sulfuric acid, nitric acid, hydrochloric acid (HCL), hydrofluoric acid, sodium hydroxide, hydrogen peroxide, ethanol, alcohol, benzene, rosin oil, toluene, trimethylbenzene, ethylbenzene, ethanol , Isopropanol, ethyl ether, propyl ether, methyl acetate, ethyl acetate, butyl acetate, propionic acid, H2S gas, nitrogen, air, oxygen, NH3, hot oil.,etc

Features of Horizontal variable area flow meter

Robust all-metal structure, all stainless steel flow meter
Can be only indicator, analog indication without any power supply
Horizontal variable area flow meter can also be with digital transmitters and LCD display;
Horizontal rotameter has small structure design; face to face size is 250mm;
Option with HART Protocol, Modbus transmitters;
Can be made into high temperature rotameter flow meter;

Technical specifications of Horizontal variable area flow meter

  • Horizontal variable area flow meter sensor size: 1/2 inch, 3/4” dial, 1”, 2 inch, 2.5 inch, 3 inch, 4”(DN100), 6 inch dial rotameter, 8 inch rotameter
  • Metal tube Flow Meter turndown ratio: 10:1
  • Metal tube rotameter accuracy: 1.5%
  • Horizontal flow meter has low pressure loss (less than 70 Kpa)
  • Can be used to measure high viscosity liquid flow rate, max viscosity it can handle is 300 mPa.s;
  • Local analog flow meter or digital flow transmitters options;
  • 24V DC , 220V AC, battery operated flow meter options
  • Horizontal rotameter can be with relay outputs for alarm purpose or with reed switch;
  • Process connection: ANSI, 150LB, 300LB,600LB,900LB; JIS 10K, 30K;PN16, PN25,PN40,PN64; tri clamp ferrule for sanitary and hygienic metal tube rotameter, 1/2”NPT thread or BSP thread;
  • Flow sensor wet parts material: stainless steel 304, 316, 316L, PTFE (Teflon)

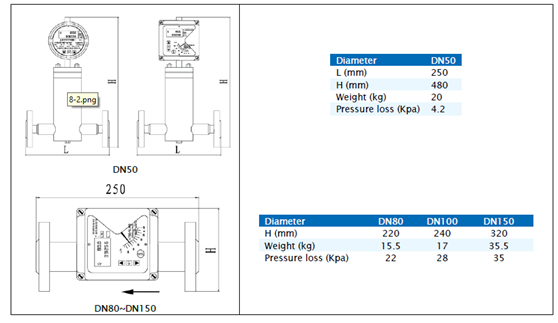

Horizontal variable area flow meter size:



Horizontal variable area flow meter price

Horizontal rotameter flow meter price is more expensive than vertical mounting flow sensor; the price varies according to the flow meter dial size , material and flow meter function, the price from Silver Automation flow meter factory is not high, starts from $500.
