Crude Oil Flow Meter

What is crude oil flow meter?

A crude oil flow meter is a device used to measure the flow rate of crude oil in pipelines or other transportation systems. The flow meter works by measuring the volume or mass of crude oil that passes through it over a specific period of time.

The choice of flow meter depends on various factors such as the flow rate of the crude oil, the properties of the oil, and the specific application requirements. Accurate measurement of crude oil flow is essential for efficient and safe transportation and processing of crude oil.

What is crude oil and why need to measure crude oil flow?

Crude oil, also known as petroleum, we say it is petrochemical flow measurement, is a naturally occurring, unrefined, and complex mixture of hydrocarbons, which are organic compounds, composed of hydrogen and carbon atoms. It is found beneath the Earth's surface, typically in reservoirs or rock formations.

Crude oil is a fossil fuel, meaning it is formed from the remains of ancient marine organisms that were buried under sediment and subjected to heat and pressure over millions of years. The composition of crude oil can vary widely depending on its source, but it typically contains various types of hydrocarbons, as well as small amounts of sulfur, nitrogen, and oxygen compounds.

Crude oil is a vital resource for many industries, as it can be refined into a variety of products, including gasoline, diesel fuel, jet fuel, heating oil, and lubricating oils. It is also used as a raw material in the production of many other products, such as plastics, chemicals, and synthetic materials, and it is important to measure crude oil flow rate and crude oil total flow. Some customers needs crude oil flow meter to be connected to the crude oil inlet line, in order to monitor the offloading quantity.

See our complete guide to fuel oil flow meters for solutions covering diesel, petrol, kerosene, and other fuel oils.

Coriolis flow meter to measure crude oil

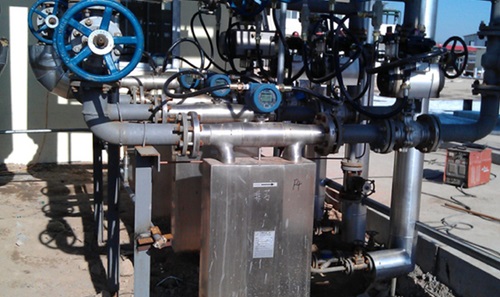

Coriolis flow meter for crude oil


Coriolis flow meters can be used to measure the flow rate of crude oil. Coriolis flow meters are highly accurate and can be used to measure the mass flow rate of fluids, including crude oil.

Coriolis flow meters work by detecting the motion-induced forces that occur when a fluid flows through a vibrating tube. The tube is set into a motion that generates a Coriolis force, which causes the tube to twist slightly. As the fluid flows through the vibrating tube, it also experiences the Coriolis force, causing it to twist in the opposite direction. The amount of twisting is proportional to the mass flow rate of the fluid.

One advantage of Coriolis flow meters is that they can measure both the mass flow rate and density of the crude oil being measured. This makes them useful for measuring the flow rate of crude oil, which can vary in density depending on the type and quality of the oil. Coriolis flow meters are also highly accurate, with typical accuracy levels of 0.1% or better.

The viscosity of crude oil can range from less than 1 cP for very light oils to more than 10,000 cP for heavy oils. As an example, the viscosity of Brent crude oil, which is a benchmark for global oil prices, ranges from around 1.5 cSt to 10 cSt, depending on the specific grade and location of the oil. In contrast, the viscosity of heavy crude oil from sources such as the Canadian oil sands can be more than 10,000 cP. Coriolis mass meter can measure crude oil flow with various kinds of viscosity change, especially good at viscous fluid flow measurement.

In summary, Coriolis flow meters can be used to accurately measure the flow rate and density of crude oil, making them a popular choice for many applications in the oil and gas industry.

Advantage to use coriolis flow meter to measure crude oil

• There are several advantages to using Coriolis flow meters to measure crude oil flow, including:
• High accuracy: Coriolis flow meters are highly accurate, with typical accuracy levels of 0.2% or better. This makes them well-suited for applications where precise oil measurement of flow rate and density is important.
• Direct measurement of crude oil mass flow rate: Coriolis flow meters directly measure the mass flow rate of the fluid, rather than relying on calculations based on volumetric flow rate and density. This makes them less sensitive to changes in temperature, pressure, and viscosity.
• No moving parts in contact with the fluid: Coriolis flow meters have no moving parts that come into contact with the crude oil being measured, which means they are less prone to wear and tear, and require less maintenance than other types of flow meters.
• Suitable for a wide range of fluid properties: Coriolis flow meters can measure the flow rate of crude oil with a wide range of properties, including high and low viscosity fluids, fluids with suspended solids, and fluids with changing densities, low flow rate or high flow rate crude oil.
• Multiparameter measurement: Coriolis flow meters can measure multiple parameters simultaneously, including crude oil mass flow rate, density, oil temperature, and crude oil viscosity. This reduces the need for additional instrumentation and can lead to more efficient and cost-effective operations.

Overall, the high accuracy, direct measurement of mass flow rate, and ability to measure multiple parameters make Coriolis flow meters a popular choice for measuring crude oil flow in a variety of applications in the oil and gas industry.

How to choose coriolis flow meter for crude oil ?

When choosing a Coriolis flow meter for measuring crude oil, there are several factors to consider ensuring accurate and reliable performance. Here are some key considerations:

• Pipe size and material: Coriolis flow meters are available in a range of pipe sizes so it's important to choose a meter that is suitable for the pipe size. Make sure the meter can be easily installed into your existing pipeline and is compatible with the fluid being measured. We have many flow sensor sizes, such as 1” crude oil flow meter, 2inch crude oil flow meter, 3” crude oil meter, 4inch , DN100 crude oil flow meter, 6 inch crude oil mass meter, 8”  or DN200 crude oil meter, 10” ,NB250 crude oil flow meter Coriolis type;
• Flow rate range: It's important to choose a Coriolis flow meter that is designed to measure the flow rate range of your specific application. The flow rate range of the meter should be suitable for the expected minimum and maximum flow rates of the crude oil being measured, also need to ensure not too much pressure loss when choosing oil flow meter size according to the flow range .We list normal Coriolis flow meter size withi flow range:

1” Coriolis flow meter can measure 0 ~167 g/min crude oil mass flow;
2” Coriolis flow transmitter can detect 0~18.37 lbs/s
3” mass flow meter can measure oil flow upto 0~100 MT/h
4” Coriolis mass meter can measure fuel mass flow 5512 lb/min
6” oil mass flow meter or DN150 oil flow meter can measure flow 2500 kg/min
8” Coriolis flow meter can measure 0~500 T/h oil mass flow ;
10 inch Coriolis flow meter can 0-1000 MT/h liquid flow.

Below we list oil flow sensor size corresponding oil flow range.

• Fluid properties: The properties of crude oil can vary widely, including viscosity, density, and temperature. Therefore, it's important to choose a Coriolis flow meter that is capable of measuring these properties accurately. Look for a meter that is designed to handle the specific viscosity range and density of the crude oil you will be measuring.
• Accuracy requirements: Consider the required level of accuracy for your application. Most Coriolis flow meters are highly accurate, it is a kind of high accuracy flow measurement device, but some are designed for more demanding applications that require higher levels of accuracy. Make sure the meter you choose meets the required accuracy specifications.
• Environmental factors: Consider any environmental factors that may affect the performance of the Coriolis flow meter. For example, if the mass flow sensor will be installed in an area with high levels of vibration or extreme temperatures, choose a meter that is designed to operate under those conditions.
• Coriolis flow meter Cost: Finally, consider the cost of the meter and any associated installation and maintenance costs. Choose a Coriolis meter that offers the required level of accuracy and reliability at a reasonable cost, Silver Automation Instruments offer low price cost Coriolis flow meter for crude oil, the price starts from $3000
• Function of Coriolis flow meter, Coriolis flow meter is a digital mass flow meter, it has electronic display, also with 4-20mA ,pulse outputs, MODBUS RS485 ,HART protocol, it can even with two outputs at the same time, for example one output for flow , another output for crude oil density. You need to consider that functions when you choose oil mass flow meter.

By considering these factors, you can choose a Coriolis flow meter that is well-suited for measuring crude oil flow in your specific application.

Crude oil flow meter for custody transfer

Custody transfer of crude oil refers to the transfer of ownership of crude oil from one party to another. It's important to ensure accurate measurement of the quantity and quality of crude oil being transferred to avoid disputes and financial losses. Therefore, custody transfer of crude oil typically requires accurate and reliable flow measurement systems.

There are several methods for measuring crude oil flow for custody transfer, including Coriolis flow meters, positive displacement meters, turbine meters, and ultrasonic meters. The choice of meter will depend on several factors, including the specific requirements of the custody transfer application, the flow rate range, and the properties of the crude oil being measured.

Here we list different types oil flow meters Comparison

From above table we can see ,Coriolis flow meters are a popular choice for custody transfer of crude oil due to their high accuracy and direct measurement of mass flow rate. They are also capable of measuring other parameters such as density and temperature, which can be used to calculate other properties of the crude oil such as volume and energy content.

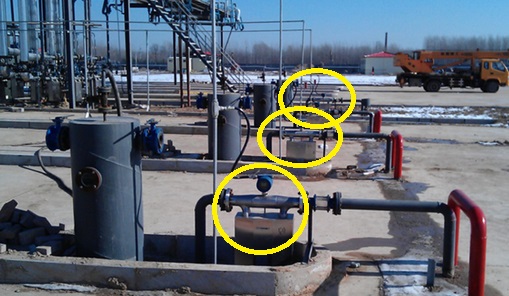

Coriolis flow meter for custody transfer

In addition to choosing an appropriate flow measurement system, custody transfer of crude oil also typically involves the use of sampling systems, tank gauging systems, and other measurement and monitoring devices to ensure accurate measurement of the quantity and quality of the crude oil being transferred, it is flow measurement for fiscal purposes.

Overall, custody transfer of crude oil requires accurate and reliable flow measurement systems and careful monitoring of the quality and quantity of the crude oil being transferred to ensure a fair and equitable transfer of ownership.

Positive displacement (PD) flow meters for crude oil measurement

Positive displacement (PD) flow meters are widely used for crude oil flow measurement in pipelines, storage tanks, and custody transfer applications. These meters operate by capturing fixed volumes of crude oil in rotating or reciprocating chambers, producing a signal directly proportional to the actual volumetric flow rate. PD meters are especially suitable for high-viscosity crude oil and maintain accuracy even at low or fluctuating flow rates.

Advantages of PD flow meters:

High accuracy, typically ±0.5% of flow rate
Reliable performance at low and varying flow conditions
Effective for viscous and heavy crude oil
Direct volumetric measurement without density compensation
Simple mechanical principle, easy to maintain,option with transmitters ,such as having 4-20mA ,pulse or Modbus output.

Disadvantages of PD flow meters:

Moving parts require routine maintenance
Sensitive to solid particles in crude oil
Higher pressure drop compared to other flow meters
Not optimal for very large pipelines,max size is 12 inches oil flow meter.

In a word, PD flow meters remain a trusted solution for precise crude oil measurement worldwide for its low cost and mechancial flow meter option.

Related positive displacement flow meter

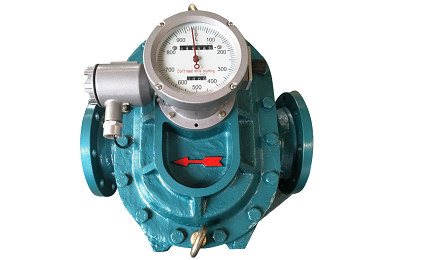

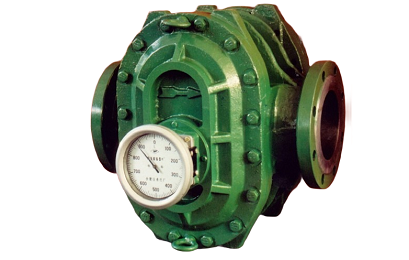

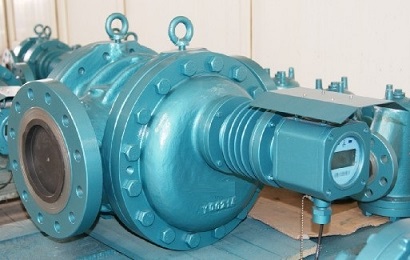

Mechancial oil Flow Meter	Oval Gear Flow meter	Bi rotor flowmeter
