A Velocity Flow Meter is an instrument that calculates the volume of a fluid (liquid or gas,such as
natural gas flow meter, air flow meter ,N2 flow meter) passing through a pipe by first measuring the fluid's average velocity. Its core operational principle is based on the fundamental flow equation:
Q=v⋅A
Where:
· Q is the volumetric flow rate
· v is the average flow velocity across the pipe's cross-section
· A is the cross-sectional area of the pipe
By accurately measuring the velocity (v) and knowing the pipe's area (A), the volumetric flow rate (Q) can be precisely determined. This technology has evolved rapidly, leading to several distinct types of meters. Below are the most common and representative velocity flow meters used in industry today.

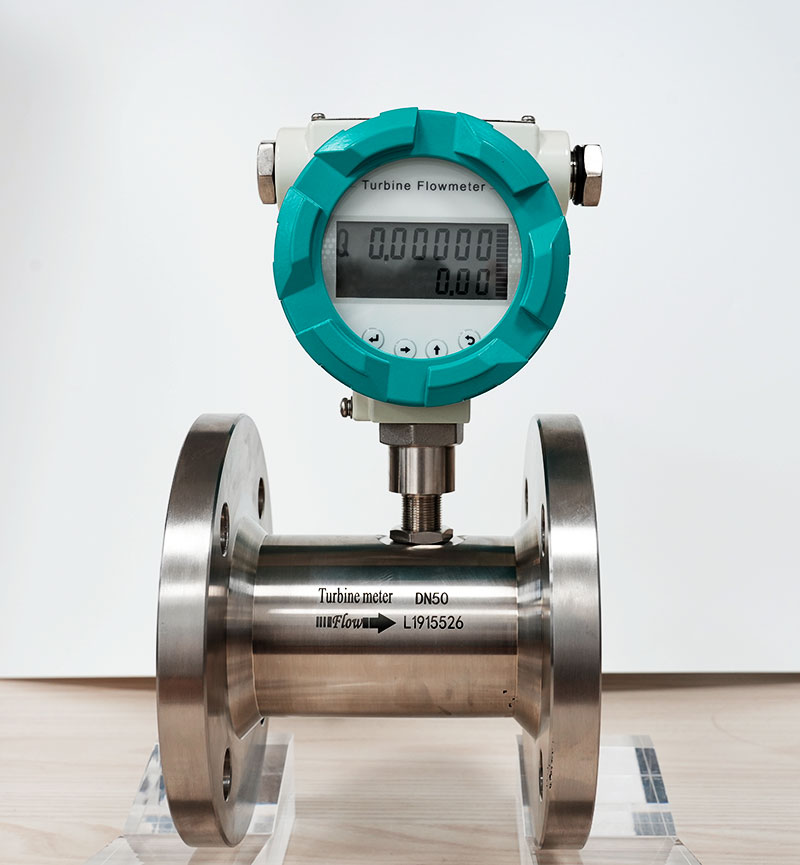

The turbine flowmeter is one of the most established and widely used velocity meters. Its central component is a turbine rotor that is placed in the fluid path.
Principle of Operation: As the fluid flows through the pipe, it strikes the turbine blades, causing the rotor to spin. The rotational speed of this rotor is directly proportional to the fluid's velocity. By measuring the rotor's revolutions per minute (RPM), the meter calculates the fluid velocity and, consequently, the volumetric flow rate.
Technical Advantages & Applications:
· High Measurement Accuracy: Provides highly precise and repeatable results.
· Wide Turndown Ratio: Maintains accuracy over a broad range of flow rates.
· Excellent Linearity: The relationship between flow and output is consistently linear.
· Digital-Friendly Output: Generates a pulse output that is easily processed by digital electronics.
It is widely used for measuring various low-viscosity liquids (like water and fuels) and gases.
More information about fuel flow measurement by liquid turbine flow meter. Turbine digital diesel fuel flow meter.
Typical Velocity Range:
· Liquid turbine flow meter: Approximately 0.5 to 10 m/s (1.5 to 33 ft/s)
More Technical information about gas turbine flow meter from silverinstruments.com. SGW Gas turbine flow meter.
· Gas turbine flow meter Approximately 5 to 100 m/s (15 to 330 ft/s)
More technical information about SLW series liquid turbine flow meter from silverinstruments.com . Liquid turbine flow meter

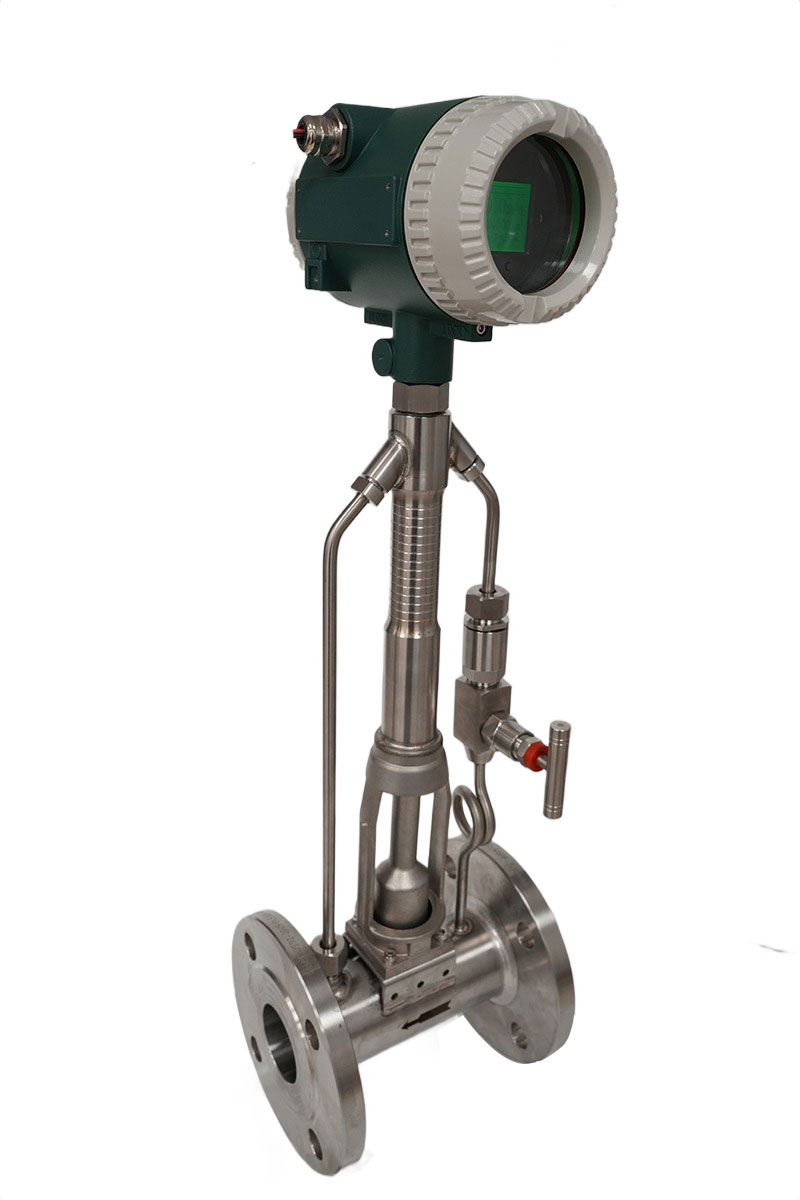

A vortex flowmeter operates on the "von Kármán vortex street" effect, a principle of fluid dynamics. It achieves this by placing a non-streamlined obstruction, known as a bluff body or shedder bar, in the flow path.
Principle of Operation: When fluid moves past the bluff body, it separates and creates a repeating pattern of alternating vortices downstream. Within a certain range of flow rates, the frequency at which these vortices are shed is directly proportional to the fluid's velocity. A sensor detects this vortex shedding frequency to calculate the flow rate.
Technical Advantages & Applications:
· Wide Measurement Range: Suitable for a broad spectrum of flow rates.
· High Measurement Accuracy: Delivers stable and precise measurements.
· Versatile Fluid Compatibility: Can measure liquids, gases, and steam.
· Low Permanent Pressure Loss: Minimal impact on system energy consumption.
Technical Frontier: Ongoing research focuses on optimizing the geometry of the bluff body to generate a more stable and regular vortex street, further enhancing the meter's accuracy and reliability.
Typical Velocity Range:
· Liquids: Approximately 0.3 to 10 m/s (1 to 33 ft/s)
· Gases/Steam: Approximately 3 to 80 m/s (10 to 260 ft/s)

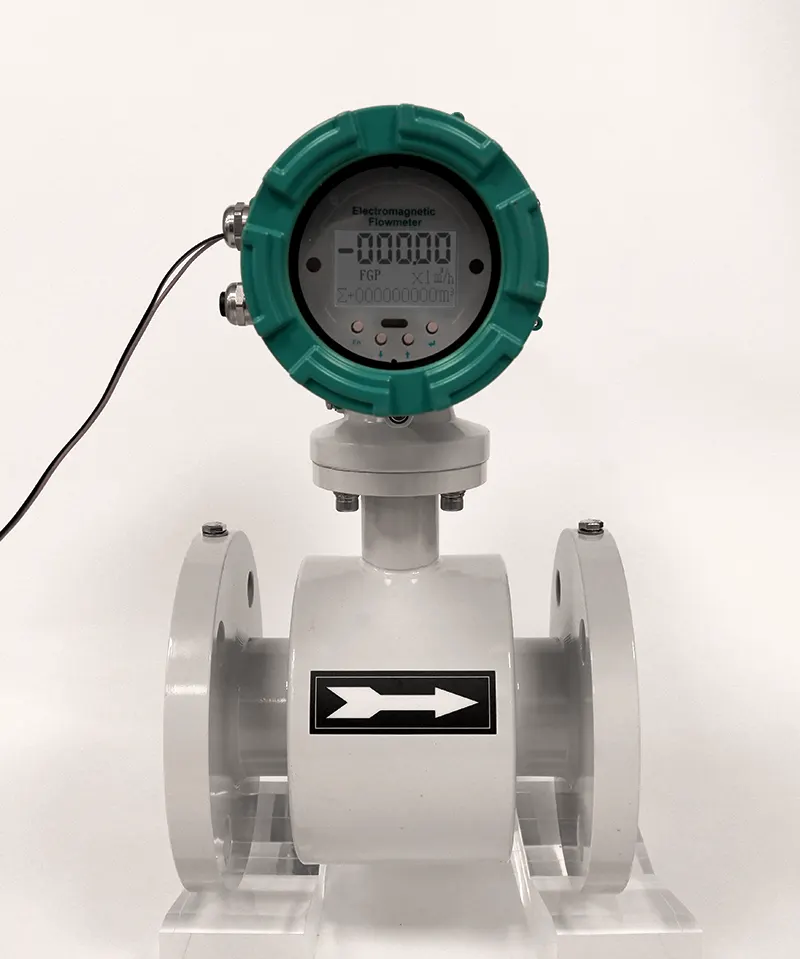

Based on Faraday's Law of Electromagnetic Induction, the electromagnetic flowmeter is the ideal choice for measuring the flow of conductive liquids.
Principle of Operation: As a conductive liquid flows through a magnetic field generated by the meter, it acts as a conductor. This induces a voltage that is perpendicular to both the direction of flow and the magnetic field. The magnitude of this voltage is directly proportional to the average velocity of the liquid.
Technical Advantages & Applications:
· Extremely Fast Response: With negligible hysteresis, it is perfect for capturing instantaneous flow variations.
· No Obstruction to Flow: The pipe is clear, meaning there are no moving parts and zero additional pressure loss,it is full bore flow meter. more technical information about full bore flow meter: Full bore electromagnetic flow meter
· High Accuracy: In a stable, fully developed flow profile, the meter accurately represents the average velocity.
Limitations & Countermeasures:
· Fluid Requirements: The measured fluid must have a minimum electrical conductivity, making it unsuitable for gases and most hydrocarbon-based products.
· Electromagnetic Interference (EMI): Can be susceptible to external electrical noise. Proper grounding and electromagnetic shielding are required for reliable operation.
Typical Velocity Range:
· Liquids: Can measure a very wide range, typically from 0.1 to 10 m/s (0.3 to 33 ft/s), excelling at low-flow applications where other meters may fail.
What to know more information about low flow measurement solutions ？ click here : small flow meter

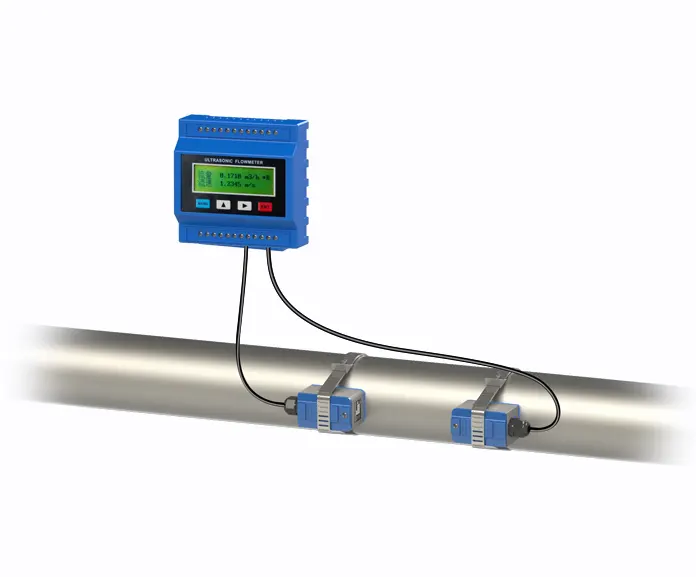

Ultrasonic flow measurement is a rapidly advancing non-invasive technology. It calculates flow by analyzing how ultrasonic sound waves behave as they pass through a moving fluid.
Principle of Operation: There are two primary methods:
1. Transit-Time Method: This method measures the time difference between an ultrasonic pulse sent upstream and one sent downstream. The pulse travels faster with the flow and slower against it. This time difference is directly proportional to the fluid velocity. more information about Transit -time method: Transit time flow meter
2. Doppler Method: This method relies on the Doppler effect. It transmits an ultrasonic signal into the fluid, which is reflected off suspended particles or air bubbles. The frequency shift of the reflected signal is proportional to the fluid's velocity. more information about dopper flow meter :Doppler ultrasonic flowmeter
Technical Advantages & Applications:
· Non-Invasive Measurement: Clamp-on sensors are mounted on the outside of the pipe, causing no pressure drop and allowing for installation without shutting down the process. This makes them ideal for large-diameter pipes and high-flow applications. More technical information about non-invasive measurement: Non invasive water flow meter.
· Transit-Time: Offers high accuracy but is best for clean liquids, as particulates or bubbles can interfere with the signal.
· Doppler: Excellent for measuring two-phase flows (liquids with suspended solids or bubbles) where transit-time meters would fail.
Typical Velocity Range:
· General (Liquids & Gases): Extremely versatile, capable of measuring from very low to very high velocities, often in the range of 0.03 to 35 m/s (0.1 to 115 ft/s).

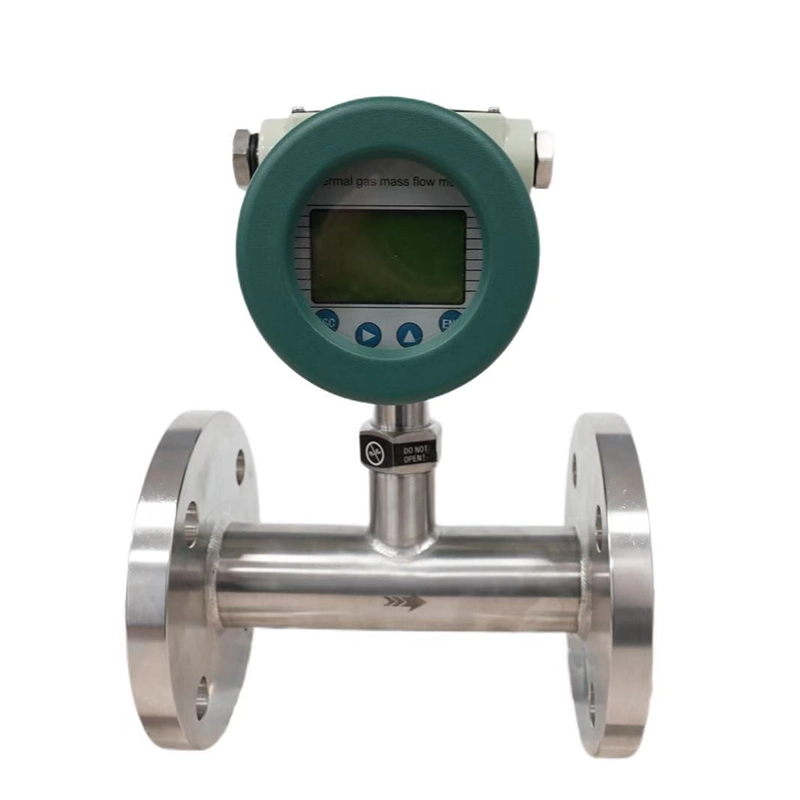

Thermal mass flowmeters operate based on the principles of heat transfer. A heated sensing element is placed in the flow stream, and the rate of heat dissipation is measured to determine the flow.
Principle of Operation: Two main modes exist:
1. Constant Temperature Anemometry (CTA): The sensor is kept at a constant temperature, and the heating current required to maintain it is measured. Higher flow requires more current.
2. Constant Current Anemometry (CCA): A constant current is applied to the sensor, and the resulting temperature variation is measured. Higher flow results in a lower sensor temperature.
Types & Applications:
· Hot-Wire Anemometer: This is a true velocity meter known for its extremely high-frequency response and small probe size. It is widely used in fluid dynamics research to measure instantaneous velocity at specific points in a flow field.
· Thermal Mass Flowmeters: Most industrial thermal meters are designed this way. Their output signal correlates directly to the fluid's mass flow rate, not its volumetric flow rate, which is a key distinction. They are exceptionally good for low-flow gas measurement.
Typical Velocity Range (for industrial gas applications):
· Gases: Excellent for low-velocity applications, with a very wide range typically from 0.1 to 120 m/s (0.3 to 400 ft/s).
