CO2 Gas Flow Meter: Complete Guide to Carbon Dioxide Flow Measurement (2025)

CO2 gas flow meters are critical flow mesurement instruments for accurate carbon dioxide measurement across industries from beverage production to semiconductor manufacturing. This comprehensive guide covers everything you need to know about CO2 flow measurement, including meter types, selection criteria, applications, and installation best practices to optimize your process control and regulatory compliance.

Understanding CO2 Gas and Why Accurate Flow Measurement Matters

Carbon dioxide (CO2) is a ubiquitous and essential component of the Earth's atmosphere, constituting approximately 0.04% (400 ppm) of the total volume. As a colorless and odorless gas, it plays a significant role in various industries, from carbonated beverages to chemical processing. Effective monitoring and measurement of CO2 gas flow have become imperative, not only for environmental considerations due to its status as a greenhouse gas but also for optimizing industrial processes that rely on its usage.

Physical Properties of CO2 Gas Affecting Flow Measurement

Understanding the unique characteristics of carbon dioxide is essential for accurate CO2 flow meter selection:

• Molecular Weight: 44.01 g/mol (heavier than air at 28.97 g/mol)
• Density at STP: 1.977 kg/m³ (approximately 1.5 times denser than air)
• Boiling Point: -78.5°C at atmospheric pressure (sublimes directly to solid dry ice)
• Critical Pressure: 7.38 MPa (73.8 bar / 1,070 psi)
• Critical Temperature: 31.1°C
• Specific Heat Ratio (k): 1.30
• Viscosity: 14.8 μPa·s at 20°C

These properties significantly influence CO2 gas flow meter selection, calibration, and accuracy. For instance, CO2's high density compared to air means volumetric flow rates will differ significantly from mass flow rates, making proper meter selection critical.

Critical Applications Requiring CO2 Flow Measurement

CO2 flow meters are essential in:

• Beverage Carbonation: Precise CO2 dosing for soft drinks, beer, and sparkling water (typically 0.5-4 volumes CO2)
• Food Preservation: Modified atmosphere packaging (MAP) extending shelf life by 50-400%
• Greenhouse Agriculture: CO2 enrichment increasing crop yields by 20-30%
• Welding and Metal Fabrication: Shielding gas for MIG/MAG welding processes
• Chemical Processing: Inert atmosphere protection and pH control
• Semiconductor Manufacturing: Ultra-high purity CO2 for cleaning and etching
• Medical Applications: Respiratory gas mixtures and laparoscopic insufflation
• Oil and Gas: Enhanced oil recovery (EOR) and supercritical CO2 extraction
• Carbon Capture and Storage (CCS): Monitoring CO2 sequestration for climate initiatives

Types of CO2 Gas Flow Meters: Technology Comparison

Selecting the right carbon dioxide flow meter depends on your application requirements, including accuracy needs, flow range, pressure and temperature conditions, and budget. Here's a comprehensive comparison of available technologies:

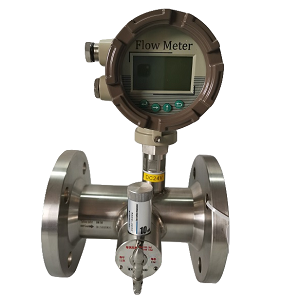

1. Gas Turbine Flow Meters for CO2 Measurement

↘ Gas Turbine Flow Meters utilize the principle of fluid dynamics to measure the flow of CO2 gas. The gas passes through a turbine, causing it to rotate at a speed proportional to the gas flow rate.

Technical Specifications:

• Accuracy: ±1.0% of reading (±0.5% for calibrated systems)
• Repeatability: ±0.2%
• Flow Range: 10:1 to 20:1 turndown ratio
• Pressure Range: Up to 100 bar (1,450 psi)
• Temperature Range: -25°C to +55°C
• Response Time: <1 second

Advantages for CO2 Applications:

• ✅ Excellent accuracy across wide flow ranges
• ✅ Low pressure drop (typically <0.5 bar)
• ✅ Suitable for high-pressure CO2 cylinders and bulk delivery
• ✅ Direct volumetric measurement
• ✅ Minimal maintenance requirements
• ✅ Option with temperature and pressure compensation


Ideal Applications:

• Beverage carbonation systems
• High-pressure CO2 cylinder filling
• Bulk CO2 transfer and custody transfer
• Chemical processing inert protection

Limitations:

• ❌ Requires clean, filtered gas (>25 micron filtration recommended)
• ❌ Sensitive to vibration and pulsating flow
• ❌ Moving parts require periodic inspection
• ❌ lubricated regularly with lubricating oil
• Below is a video to tell you how to do lubrate procedure.
•

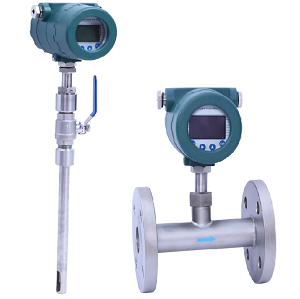

2. Thermal Mass Flow Meters for CO2

↘ Thermal Mass Flow Meters operate on the heat transfer principle, measuring the convective heat transfer from a heated surface to the flowing gas. The flow rate is directly proportional to the heat transfer, enabling accurate mass flow measurement without pressure and temperature compensation.

Technical Specifications:

• Accuracy: ±1.0% to ±2.0% of reading
• Repeatability: ±0.5%
• Turndown Ratio: 100:1
• Pressure Range: Vacuum to 25 bar
• Temperature Range: -40°C to +300°C
• Response Time: 1-3 seconds

Advantages for CO2 Measurement:

• ✅ Direct mass flow measurement (no density compensation needed)
• ✅ Excellent for low-flow applications (down to 0.1 NLPM)
• ✅ No moving parts - extremely reliable
• ✅ Wide turndown ratio ideal for varying processes
• ✅ Works well in low-pressure applications
• ✅ Minimal pressure drop
• ✅ Low price choice when measuring large pipe line size gas
• Below is a video to show more details of thermal mass flow meter

Ideal Applications:

• Greenhouse CO2 enrichment systems
• Laboratory CO2 incubators
• Food packaging MAP systems
• pH control in water treatment
• Low-flow semiconductor processes

Limitations:

• ❌ Slower response time than turbine meters
• ❌ Gas-specific calibration required (CO2 calibration essential)
• ❌ Can be affected by ambient temperature changes

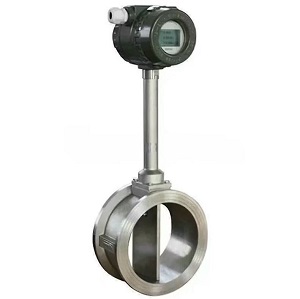

3. Vortex Flow Meters for CO2 Gas

↘ Vortex Flow Meters utilize the Karman vortex street principle, where vortices are shed from a bluff body placed in the path of the fluid. The frequency of vortices is proportional to the flow velocity, providing accurate flow measurement.

Technical Specifications:

• Accuracy: ±1.0~1.5% of reading
• Repeatability: ±0.2%
• Turndown Ratio: 10:1
• Pressure Range: Up to 40 bar (580 psi) standard, 100 bar special
• Temperature Range: -40°C to +350°C
• Minimum Reynolds Number: 10,000 (limits low-flow applications)

Advantages for CO2 Applications:

• ✅ No moving parts - exceptional reliability
• ✅ Virtually maintenance-free
• ✅ Handles high temperatures and pressures
• ✅ Long-term stability
• ✅ Cost-effective for medium to large pipe sizes

Ideal Applications:

• Chemical processing CO2 feed lines
• Welding gas distribution systems
• Large-scale beverage production
• CO2 recovery and purification plants
• Power plant CO2 capture systems

Limitations:

• ❌ Not suitable for low-flow or small pipe sizes CO2
• ❌ Requires minimum flow velocity (typically >1 m/s)
• ❌ Sensitive to upstream piping conditions (10D upstream, 5D downstream required)
• ❌ Pressure drop higher than thermal mass meters

4. Coriolis Mass Flow Meters for CO2

Coriolis flow meter

Coriolis mass flow meters are the gold standard for high-accuracy CO2 measurement, particularly for custody transfer and critical processes requiring ±0.1% accuracy.

Technical Specifications:

• Accuracy: ±0.1% to ±0.5% of reading
• Repeatability: ±0.05%
• Turndown Ratio: 10:1
• Pressure Range: Up to 1000bar (14,500 psi)
• Temperature Range: -240°C to +350°C
• Additional Measurement: Direct density (liquid only) and temperature

Advantages:

• ✅ Highest accuracy available for CO2 measurement
• ✅ Direct mass flow measurement independent of gas properties
• ✅ Simultaneous density measurement (useful for liquid/supercritical CO2 or Cryogenic  carbon dioxide )
• ✅ Not affected by pressure, temperature, or viscosity changes
• ✅ Bidirectional flow measurement

Ideal Applications:

• Custody transfer and billing applications
• Supercritical CO2 extraction or cryogenic applications
• High-purity CO2 for semiconductor manufacturing
• Pharmaceutical CO2 processing
• Critical research and development applications

Limitations:

• ❌ Higher initial cost (3-5× turbine or vortex meters)
• ❌ Larger pressure drop
• ❌ Sensitive to external vibration

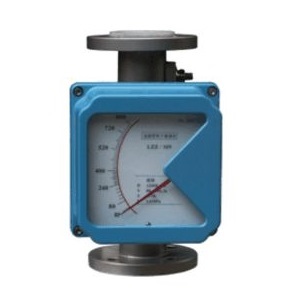

5. Rotameters for CO2 Measurement

↘ Rotameters, also known as variable area flow meters, employ a tapered tube through which the gas flows. The position of a float inside the tube indicates the flow rate.

Technical Specifications:

• Accuracy: ±2% to ±5% of full scale
• Repeatability: ±1%
• Turndown Ratio: 10:1
• Pressure Range: Up to 25 bar typical,option with high pressure ,such as 100 bar.

Advantages:

• ✅ Simple, cost-effective solution
• ✅ Visual flow indication
• ✅ No external power required
• ✅ Minimal maintenance

Ideal Applications:

• Plant growth stimulation in small greenhouses
• Laboratory benchtop applications
• Aquarium CO2 dosing
• Simple purge and vent applications

Limitations:

• ❌ Lower accuracy than other technologies
• ❌ No digital output (unless equipped with transmitter)
• ❌ Limited to low-pressure applications

CO2 Flow Meter Selection Guide: Choosing the Right Technology

Selecting the optimal CO2 gas flow meter requires careful consideration of multiple factors:

Key Selection Criteria

1. Accuracy Requirements

• ±0.1-0.5%: Coriolis mass flow meters (custody transfer, critical processes)
• ±1.0%: Turbine, thermal mass, or vortex meters (most industrial applications)
• ±2-5%: Rotameters (non-critical monitoring)

2. Flow Rate Range

Determine your minimum, normal, and maximum CO2 flow rates:

• Low flow (<10 SLPM): Thermal mass flow meters excel
• Medium flow (10-1000 SLPM): Turbine or thermal mass
• High flow (>1000 SLPM): Vortex or turbine meters are cost-effective

3. Pressure and Temperature Conditions

Application	Pressure Range	Temperature Range	Recommended Meter
Low-pressure greenhouse	0-2 bar	5-35°C	Thermal mass or rotameter
Beverage carbonation	2-10 bar	0-25°C	Turbine or thermal mass
High-pressure cylinder	50-200 bar	-20-50°C	Turbine or Coriolis
Supercritical CO2	75-300 bar	31-80°C	Coriolis mass flow meter
Liquid CO2	15-25 bar	-20-0°C	Coriolis

4. Pipe Size Considerations

• Small bore (DN15-DN50 / 0.5-2 inch): Thermal mass flow meter or flow controller or turbine
• Medium bore (DN50-DN150 / 2-6 inch): Vortex or turbine
• Large bore (DN150+ / 6+ inch): Vortex or insertion thermal mass

5. Output and Communication Requirements

• 4-20mA analog output: Universal standard for process control
• Pulse output: For totalizing and flow rate indication
• HART protocol: Digital communication over analog wires
• MODBUS RTU/TCP: Direct connection to PLCs and SCADA systems
• Profibus/Foundation Fieldbus: Industrial automation networks

Application-Specific Recommendations

Application	Primary Requirement	Recommended Technology	Typical Size
Beverage carbonation	Accuracy, repeatability	Turbine or thermal mass	1-2 inch
Greenhouse CO2 enrichment	Low-flow accuracy, cost	Thermal mass	0.5-1 inch
Welding gas distribution	Reliability, low maintenance	Vortex or thermal mass	1-3 inch
Chemical processing	Wide range, stability	Vortex or turbine	2-6 inch
Food packaging (MAP)	Precise dosing, repeatability	Thermal mass	0.5-2 inch
Semiconductor manufacturing	Highest accuracy, purity	Coriolis or thermal mass	0.5-1 inch
CO2 cylinder filling	High pressure, accuracy	Turbine or Coriolis	1-3 inch
Carbon capture systems	Large volume, cost-effectiveness	Vortex	4-12 inch

Advanced Features of Digital CO2 Gas Flow Meters

↘ Modern digital CO2 gas flow meters come equipped with a range of features designed to enhance accuracy and usability:

Real-Time Data Display and Monitoring

↘ Instant Data Display: Digital CO2 gas flow meters provide real-time display of carbon dioxide flow rates (in SCFM, SLPM, Nm³/h), instantaneous velocity, total consumption, and process conditions including temperature and pressure.

Communication Protocols

↘ Output Options: These gas flow transmitters offer versatile output options such as 4-20mA or pulse output, MODBUS (RTU and TCP), and HART communication protocols, allowing seamless integration into various control systems including DCS, PLC, and SCADA platforms.

Temperature and Pressure Compensation

↘ Automatic Compensation: Some CO2 gas flow meter models offer integrated temperature and pressure compensation, ensuring precise measurement even under varying process conditions. This is particularly important for CO2 measurement since gas density changes significantly with temperature and pressure.

For example, at 20°C and 1 bar, CO2 density is 1.977 kg/m³, but at 50 bar it increases to approximately 98.8 kg/m³. Without proper compensation, volumetric measurements would be off by nearly 50×.

Flexible Installation Options

↘ Process Connection: The gas flow meters are designed with different process connection types, such as wafer, flange, insertion, or thread connections, enhancing flexibility in installation. Common thread standards include NPT, BSP, and metric threads.

Superior Accuracy

↘ High Accuracy: Digital CO2 gas flow meters can achieve high accuracy levels, reaching up to ±0.1% of reading for Coriolis meters and ±1.0% for turbine and thermal mass meters, crucial for applications demanding stringent control such as pharmaceutical processing and custody transfer.

Technology Options

↘ Diverse Technologies: These gas flow meters are available in various technologies, including thermal mass, gas turbine, vortex, and Coriolis mass flow meters, enabling selection based on specific application requirements.

Wide Size Range

↘ Range of Sizes: Sizes ranging from DN15 to DN2000 (0.5 inch to 80 inch) cater to a wide array of flow rate demands. Common requests include 1-inch, 2-inch, 3-inch, and 4-inch CO2 flow meters, with larger sizes used in industrial CO2 capture and distribution systems.

Industrial Applications of CO2 Gas Flow Meters

CO2 gas finds its place in a plethora of applications, ranging from carbonated beverage production to chemical processing. CO2 gas flow meters play a crucial role in optimizing these processes, ensuring accurate measurement and control.

1. Beverage Industry: Carbonation Control

In carbonated soft drink manufacturing, beer production, and sparkling water bottling, precise CO2 measurement guarantees the desired level of fizziness and product consistency.

Critical Parameters:

• CO2 Volumes: Soft drinks (3.5-4.0 volumes), beer (2.2-2.6 volumes), sparkling water (5-7 volumes)
• Pressure: Typically 2-10 bar
• Temperature: 0-15°C (chilled)
• Flow Rates: 10-500 SLPM depending on production scale

Measurement Challenges:

• Precise dosing required (±2% accuracy minimum)
• Varying production rates requiring wide turndown
• Food-grade materials and sanitary connections
• Integration with filling line automation

Recommended Solution:

Thermal mass flow meters or turbine flow meters with 316L stainless steel construction, food-grade certifications, and 4-20mA output for PLC integration.

2. Food Preservation: Modified Atmosphere Packaging (MAP)

CO2 is used extensively in food packaging to extend shelf life by inhibiting microbial growth and oxidation. Accurate CO2 dosing is critical for product quality and regulatory compliance.

Typical MAP Gas Mixtures:

• Red meat: 70-80% O₂, 20-30% CO₂
• Poultry: 25-35% CO₂, 65-75% N₂
• Cheese: 100% CO₂ or 20-40% CO₂ + N₂
• Fresh produce: 5-10% CO₂, 2-5% O₂, balance N₂

Recommended Solution:

Thermal mass flow meters for precise low-flow control (typically 0.1-10 SLPM per package line) with integrated gas blending capability.

3. Greenhouse Agriculture: CO2 Enrichment

Controlled environment agriculture uses CO2 enrichment to boost photosynthesis and increase crop yields. Optimal CO2 levels are 800-1200 ppm (2-3× atmospheric concentration).

Application Requirements:

• Dosing accuracy: ±5-10% acceptable
• Flow rates: 0.5-50 SLPM depending on greenhouse size
• Integration: Environmental control systems monitoring light, temperature, humidity
• Cost sensitivity: Budget-friendly solutions preferred

Recommended Solution:

Thermal mass flow meters or rotameters for cost-effective CO2 dosing with adequate accuracy.

4. Welding and Metal Fabrication: Shielding Gas

CO2 is widely used as a shielding gas in MIG/MAG welding, either pure or blended with argon (e.g., 75% Ar / 25% CO₂).

Application Requirements:

• Flow rates: 10-25 LPM per welding station
• Pressure: 2-4 bar at torch
• Reliability: Continuous operation essential
• Cost control: Monitoring to prevent gas waste

Recommended Solution:

Vortex flow meters or thermal mass flow meters for distribution monitoring, with individual rotameters at welding stations.

5. Chemical Processing: Inert Atmosphere and pH Control

In chemical processing, CO2 gas flow meters help maintain inert atmospheres necessary for protecting sensitive materials and controlling pH in aqueous systems.

Applications Include:

• Reactor blanketing: Preventing oxidation and explosions
• pH control: Water treatment and chemical synthesis
• Precipitation reactions: Calcium carbonate production
• Solvent extraction: Supercritical CO₂ extraction

Recommended Solution:

Vortex flow meters for large-volume applications or Coriolis meters for high-accuracy critical processes.

6. Semiconductor Manufacturing: Ultra-High Purity CO2

Semiconductor fabrication requires ultra-high purity CO2 (99.9999%+) for critical cleaning, etching, and deposition processes.

Critical Requirements:

• Purity maintenance: Materials must not contaminate gas
• Accuracy: ±1% or better for precise process control
• Cleanliness: Electropolished stainless steel construction
• Traceability: Full calibration documentation

Recommended Solution:

Thermal mass flow meters or Coriolis mass flow meters with high-purity construction and SEMI S2 compliance.

7. Medical and Healthcare: Respiratory Gas Mixtures

Medical-grade CO2 is used in respiratory gas mixtures, laparoscopic insufflation, and incubators.

Applications:

• Respiratory therapy: Capnography and CO₂ monitoring
• Laparoscopy: Abdominal insufflation during surgery
• Cell culture incubators: 5% CO₂ atmosphere
• Lung function testing: CO₂ breath analysis

Recommended Solution:

Thermal mass flow meters with medical-grade certifications and low-flow capability (0.1-10 SLPM).

8. Carbon Capture and Storage (CCS): Climate Change Mitigation

Large-scale CO2 capture from power plants and industrial facilities requires accurate flow measurement for monitoring, reporting, and verification (MRV) of sequestered carbon.

Application Scale:

• Flow rates: Thousands to millions of SCFM
• Pressure: 1-150 bar (compression stages)
• Accuracy requirements: ±1-2% for carbon credit compliance
• Long-term reliability: 20-30 year operational life

Recommended Solution:

Vortex flow meters for large pipes (DN200-DN2000) or ultrasonic flow meters for non-invasive measurement.

CO2 Flow Meter Installation Best Practices

Proper installation is critical for accurate and reliable CO2 gas flow measurement. Follow these guidelines:

Upstream and Downstream Piping Requirements

Most flow meters require straight pipe runs to ensure fully developed flow:

Meter Type	Upstream Straight Pipe	Downstream Straight Pipe
Turbine	10-20D	5D
Thermal Mass	5-10D	3D
Vortex	10-15D	5D
Coriolis	0	0
Rotameter	5D	2D

D = Pipe diameter. For example, 10D for a 2-inch pipe = 20 inches of straight pipe.

Flow Conditioner Recommendations

When adequate straight pipe runs are not available, install flow conditioners to eliminate swirl and ensure uniform velocity profile:

• Tube bundle flow conditioners: 19-element or 20-element designs
• Vane-type flow straighteners: For applications with space constraints
• Perforated plate: Simple, cost-effective option

Filtration Requirements

Protect flow meters from particulate contamination:

• Turbine meters: 25-micron filtration minimum (10-micron recommended)
• Thermal mass meters: 40-micron filtration
• Vortex meters: 100-micron filtration sufficient
• Coriolis meters: 40-micron recommended

Install filters with pressure differential indicators to monitor filter condition.

Pressure and Temperature Considerations

• Pressure taps: Install upstream and downstream pressure taps for flow verification and troubleshooting
• Temperature wells: Use thermowells for accurate temperature measurement without exposing sensors to full flow
• Safety relief valves: Required for high-pressure CO2 systems (>20 bar)
• Pressure regulators: Maintain stable pressure for optimal meter performance

Orientation and Mounting

• Horizontal installation: Preferred for most gas flow meters
• Vertical installation: Acceptable for most technologies; required for rotameters (upward flow)
• Avoid low points: Prevent condensate accumulation in gas lines
• Vibration isolation: Use flexible hoses or vibration dampeners if necessary
• Accessibility: Ensure adequate clearance for maintenance and calibration

Electrical Connections

• Power supply: Verify voltage (typically 24 VDC or 100-240 VAC)
• Signal cables: Use shielded cables for 4-20mA and HART signals
• Grounding: Proper grounding prevents electrical noise and ensures safety
• Intrinsic safety: Use IS barriers for hazardous area installations
• Cable routing: Separate signal cables from high-voltage power lines

Calibration and Maintenance of CO2 Flow Meters

Initial Calibration

For critical applications, request factory calibration with CO2 gas rather than air or nitrogen. CO2's different molecular weight and heat transfer properties affect meter performance.

Calibration Certificates Should Include:

• Calibration gas used (should be CO2)
• Pressure and temperature conditions
• Multiple flow points across operating range
• Traceability to national standards (NIST, PTB, etc.)
• Uncertainty statements

Periodic Verification

Establish a verification schedule based on application criticality:

Application Type	Verification Frequency
Custody transfer	Quarterly to semi-annually
Critical process control	Semi-annually to annually
General industrial	Annually to biennially
Non-critical monitoring	Every 2-3 years

In-Situ Verification Methods

When removing meters for calibration is impractical:

• Clamp-on ultrasonic meters: Temporary installation for comparison
• Portable thermal mass meters: Insertion probe comparison
• Master meter comparison: Series installation of calibrated reference meter
• Gravimetric method: Weigh CO2 cylinders before and after timed flow

Preventive Maintenance

Turbine Meters:

• Inspect bearings annually
• Check for debris accumulation
• Verify rotor spins freely
• Replace bearings every 3-5 years

Thermal Mass Meters:

• Clean sensor probes annually (if accessible)
• Verify zero reading with no flow
• Check electrical connections
• No moving parts - minimal maintenance

Vortex Meters:

• Inspect bluff body and sensor
• Check for erosion or coating buildup
• Verify electronics function
• Virtually maintenance-free

Coriolis Meters:

• Verify zero and span periodically
• Check for coating buildup (rare in gas service)
• Monitor diagnostics for tube integrity
• Professional calibration every 2-3 years

Troubleshooting Common CO2 Flow Meter Issues

Problem	Possible Causes	Solutions
Reading too high	Incorrect gas calibration, temperature/pressure not compensated, contamination	Verify calibration gas, enable T/P compensation, clean/replace filter
Reading too low	Bypass leakage, meter undersized for flow, restriction downstream	Check for leaks, verify meter sizing, inspect downstream piping
Erratic readings	Pulsating flow, insufficient straight pipe, two-phase flow	Install pulsation dampener, add flow conditioner, check for liquid CO2
No reading	Power supply failure, sensor failure, flow too low	Check power supply and wiring, test sensor, verify minimum flow exceeded
Drift over time	Sensor aging, coating buildup, ambient temperature changes	Recalibrate meter, clean sensor, improve temperature stability

CO2 Flow Measurement: Frequently Asked Questions

What is the difference between mass flow and volumetric flow for CO2?

Volumetric flow (SCFM, SLPM, Nm³/h) measures the volume of gas passing through the meter, which varies with pressure and temperature. Mass flow (kg/h, lb/h) measures the actual mass of CO2, which remains constant regardless of conditions. For most process control applications, mass flow is preferred as it directly relates to the amount of CO2 molecules delivered. More details: Flow meter volumetric and mass flow rate?

Do I need temperature and pressure compensation for CO2 measurement?

If you're measuring volumetric flow and need to report mass flow or standard volumetric flow, yes. Thermal mass flow meters and Coriolis meters measure mass directly and don't require compensation. Turbine and vortex meters measure actual volumetric flow and require compensation if reporting in standard conditions.

Can the same meter measure both liquid and gaseous CO2?

Some meters can, but performance differs. Coriolis mass flow meters excel at both phases and can detect phase changes. Vortex meters can also measure both with reduced accuracy in gas service. Most other technologies are optimized for either liquid or gas, not both.

What is the typical accuracy of CO2 flow meters?

Accuracy varies by technology: Coriolis meters (±0.1-0.5%), Turbine meters (±1.0%), Thermal mass meters (±1.0-2.0% of reading), Vortex meters (±1.0-1.5%), and Rotameters (±2-5% of full scale).

How often should I calibrate my CO2 flow meter?

Calibration frequency depends on application criticality and regulatory requirements. For custody transfer applications, quarterly to semi-annual calibration is common. For general industrial use, annual or biennial calibration is typical. Always follow applicable standards such as ISO 9001 or industry-specific regulations.

Can I use a nitrogen-calibrated meter for CO2 measurement?

It's not recommended for high-accuracy applications. CO2 has different density, molecular weight, and thermal properties than nitrogen. For thermal mass flow meters especially, CO2-specific calibration is essential for accuracy <±2%. Turbine and vortex meters are less sensitive but still benefit from CO2 calibration.

What size CO2 flow meter do I need?

Meter sizing depends on your flow rate range. As a rule of thumb, select a meter where your normal flow rate falls in the middle 50% of the meter's range. For example, if your typical flow is 100 SLPM, select a meter with a range of 50-200 SLPM. Avoid oversizing, which reduces accuracy at low flows.

How do I convert between different CO2 flow units?

Common conversions (at standard conditions 0°C, 1 bar):

• 1 kg/h CO2 = 0.509 Nm³/h = 18.0 SCFH = 8.47 SLPM
• 1 SCFM CO2 = 1.977 kg/h = 28.3 SLPM
• 1 Nm³/h CO2 = 1.977 kg/h = 0.589 SCFM

What causes measurement errors in CO2 flow meters?

Common error sources include: incorrect gas calibration, lack of temperature/pressure compensation, insufficient straight pipe runs, pulsating flow, contamination or moisture, two-phase flow (liquid/gas mixture), and meter wear over time. Proper installation and maintenance minimize these issues.

Regulatory and Safety Considerations for CO2 Flow Measurement

Safety Standards

• OSHA 1910.134: Respiratory protection standards
• CGA P-1: Safe Handling of Compressed Gases
• ISO 5145: Cylinder valve outlet connections for gases
• ASME B31.3: Process piping design

Hazardous Area Classifications

If your CO2 system is located in a hazardous area with flammable materials:

• Intrinsically safe (IS) meters: Cannot provide enough energy to cause ignition
• Explosion-proof enclosures: Contain any internal explosions
• ATEX/IECEx certifications: Required for European and international installations
• FM/CSA approvals: North American standards

Environmental Monitoring and Reporting

For carbon capture and climate initiatives:

• EPA Greenhouse Gas Reporting: Facilities emitting >25,000 tons CO2e/year
• ISO 14064: GHG quantification and reporting
• Carbon credit verification: Accurate measurement for trading

Future Trends in CO2 Flow Measurement Technology

Digitalization and IIoT Integration

Next-generation CO2 flow meters feature:

• Cloud connectivity: Real-time data upload for remote monitoring
• Predictive maintenance: AI algorithms predict failure before it occurs
• Digital twins: Virtual meter models for optimization
• Blockchain verification: Tamper-proof measurement records for carbon credits

Advanced Materials

• Graphene sensors: Higher sensitivity and faster response
• Ceramic composites: Corrosion resistance for impure CO2
• MEMS technology: Miniaturized sensors for lab-on-chip applications

Multi-Parameter Measurement

Modern meters increasingly measure multiple parameters simultaneously:

• Flow rate + density + temperature + pressure
• Real-time gas composition analysis
• Moisture content monitoring
• Contaminant detection

Conclusion: Optimizing Your CO2 Flow Measurement Strategy

CO2 gas flow meters are indispensable tools for accurately measuring and controlling carbon dioxide flow across a range of industries. Their diverse technologies, coupled with advanced features, enable precise measurement and optimization of processes that rely on CO2 gas. From carbonated beverages to chemical processing, from greenhouse agriculture to semiconductor manufacturing, these CO2 flow meters contribute to efficiency, precision, and sustainability in various applications.

Key Takeaways for Selecting CO2 Flow Meters:

1. Match technology to application: Thermal mass for low flows and wide turndown, turbine for high accuracy and mid-range flows, vortex for large pipes and harsh conditions, Coriolis for highest accuracy and custody transfer
2. Consider total cost of ownership: Initial price is only part of the equation—factor in calibration costs, maintenance requirements, and measurement accuracy impact on process efficiency
3. Proper installation is critical: Follow manufacturer guidelines for straight pipe runs, filtration, and orientation to achieve rated accuracy
4. Calibrate with CO2: For critical applications, insist on CO2-specific calibration rather than surrogate gases
5. Plan for verification: Establish a calibration and verification schedule appropriate for your application criticality
6. Leverage digital features: Modern communication protocols enable better process control, diagnostics, and predictive maintenance
7. Think long-term: Select meters with proven reliability and vendor support for your application lifecycle (10-20 years typical)

Next Steps

Should you have a need for CO2 flow meters, reaching out to experts in the field will help you obtain the best-suited solution for your specific requirements. Consider these questions when contacting suppliers:

• What are my minimum, normal, and maximum CO2 flow rates?
• What are my operating pressure and temperature conditions?
• What accuracy do I need for my application?
• What are my pipe size and connection requirements?
• Do I need digital communication (HART, MODBUS, etc.)?
• Are there any space constraints or installation limitations?
• What is my budget for initial purchase and ongoing maintenance?

By carefully considering these factors and selecting the appropriate CO2 flow measurement technology, you can achieve optimal process control, cost savings, and regulatory compliance for years to come.

Ready to optimize your CO2 measurement system? Contact our flow measurement experts today for application-specific recommendations, technical specifications, and competitive pricing on CO2 gas flow meters tailored to your exact needs.

Author: Silver Automation Instruments — Engineering Team

Practical instrumentation specialists with 10+ years of field experience in flow, pressure, and level measurement. Expertise in gas turbine, Coriolis, magnetic, and ultrasonic meters. CE & ISO 9001 processes.

Website: silverinstruments.com |  Email: technician@silverinstruments.com
