SILVER AUTOMATION INSTRUMENTS LTD.

By Media
Flow Meter

Low flow meters for oil


Silver Instruments is specialist in micro to low flow rate measurement for oil, we supply volumetric or mass flow meters for the oil, and we often choose turbine flow meter, oval gear flow meter and Coriolis flow meter for the micro oil flow rate.

Low flow turbine flow meter for oil measurement

Turbine flow meter is a volumetric flow sense device, when the oil passes the turbine sensor, it will make the rotor to rotate, and the rotor rotating speed has direct linearity with the oil flow rate. Turbine flow meter is a suitable choice for oil measurement with the viscosity within 50 cp.
Features
In-line oil flow sensor or oil flow transmitter
Miniature flow meter sensor size can be 1.1mm, 1.2mm, 1.4mm,1.5mm, 4mm, 6mm
Micro oil flow sensor can detect oil flow as low as 2.1-90 L/h
High accuracy, low flow meter can reach to 1%

Micro oval gear flow meter for oil flow metering

Oval gear flow meter is a kind of positive displacement flow meter; it is a kind of economical and rugged flow meter device. Oval gear flow meter can be used to measure lube oils, glycols, heavy oil, and diesel; it can detect high viscosity oil with viscosity within 2000cp.
Features
Micro gear driven flow meter sensor size is 2mm, can detect oil flow as low as 0.5 ml/min
Various sensor size available : 2mm, 3mm,5mm,6mm,9mm, 10mm, 15mm
High accuracy flow meter
Ideal solution for high viscosity oil flow rate measurement
Wide material choice for optimal chemical compatibility
Mechanical flow meter or flow meter with transmitter
No requirement for straight pipe lines when mounting the gear flow meter

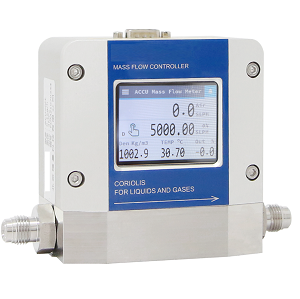

Coriolis flow meter for low flow oil measurement

Coriolis flow meter is based on Coriolis principle, it is a kind direct mass flow measurement with high accuracy , the min size we can make is 3mm, the low oil flow it can detect is 0~4 kg/h.
Features
Multi-parameters can be detect: mass flow, oil density, concentration and temperature
High viscosity flow meter
All stainless steel 316L material
Direct mass flow rate measurement
Small Coriolis flow meter sensor size is 3mm, 6mm,8 mm,10mm.,etc
