Flow Meter

Corrosive liquid flow meter


In the industrial production process, many media are slightly or strong corrosive. We need to measure the flow rate of these aggressive fluids. How to choose the flow instrumentation for measuring corrosive media? Commonly used corrosive medium flowmeters include electromagnetic flowmeters, rotameters, and so on.

Magnetic flowmeter for measuring corrosive media

Mag flowmeters can be selected with PTFE lining or PFA lining. The Teflon and PFA linings are very resistant to corrosion. The electrode materials can be selected from hastelloy alloy, platinum rhodium, Tan ,titanium, etc. These metals can meet most corrosive properties. Mag flow meter can take flow measurement of hydrochloric acid, sulfuric acid, hydrofluoric acid, chlorine water, hydrogen peroxide, caustic soda, etc. The flowmeter housing can be selected from stainless steel 304 or 316 to accommodate flow measurements in corrosive environments.
Electromagnetic flowmeter advantages:
✔   In-line volumetric flowmeter
✔    Suitable selection of mag flow sensor lining and electrode materials for aggressive liquid measurement
✔    There is no obstruction in the measuring pipe, so there is no additional pressure loss
✔    There are no moving parts in the measuring pipe, so the sensor has a very long life
✔    Can be used as slurry flowmeter
✔    Bi-directional measurement system for measuring forward flow and reverse flow
✔    Electronic flow meter with current output, pulse output, digital communication, HART,Profibus-DP
✔    Digital flow meter for acid or alkali flow measurement
✔    The measurement accuracy is not affected by changes in fluid density, viscosity, temperature, pressure, and conductivity. accuracy is high.

Rotameter to measure corrosive liquids

The metal tube rotor is a traditional flow measuring device, which is kind of variable area flow meter; we provide a PTFE-lined rotameter that can measure corrosive liquids. The rotameter can be an analog flowmeter, showing the instantaneous flow of the pipe without any power supply. We also have a rotor flowmeter with a transmitter that not only displays the instantaneous flow of corrosive media, but also shows the cumulative total. This kind of rotameter also has 4-20mA, pulse, Hart, Modbus, etc.

  • Metal tube rotameter for corrosive liquidMetal tube rotameter for corrosive liquid2019/06/08Teflon (PTFE) lined metal tube rotameter/ variable area flow meter is suitable for aggressive fluids measurement. It is a traditional and classic flow metering technology which is used in many applica...view
  • Acid resistant flow metersAcid resistant flow meters2019/01/13Flow meters recommended for use with acids or chemically aggressive liquids. Silver Automation Instruments supplies acid resistant flow meters to measure the flow of strong hot corrosive acids like su...view

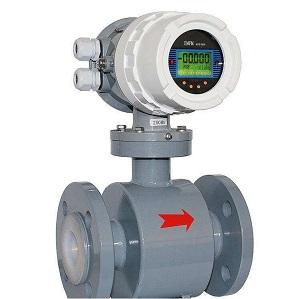

  • In-line Magnetic flow meterIn-line Magnetic flow meter2019/06/27In-line mag flow meter takes measurement the whole pipeline section flow velocity where the mag sensor is mounted. It measure the conductive liquid volume flow rate, it has little effects on fluids de...view
  • Sanitary Magnetic flow meterSanitary Magnetic flow meter2018/11/21SHD-SE13 Magmeter sensor is a type sanitary type flow measuring device.It can measure tap water, tomato paste, liquid egg, molasses, juice, vinegar and so on which are widely used in food-processing, beer and pharmaceutical industries.view
  • Metal Tube Rotameter with TransmitterMetal Tube Rotameter with Transmitter2019/05/30Rotameter with transmitter offers 4-20mA(loop powered) also digital display for different control purposes and field monitors.HH series metal tube rotameter is suitable for high temperature( 300°C,572°F...view

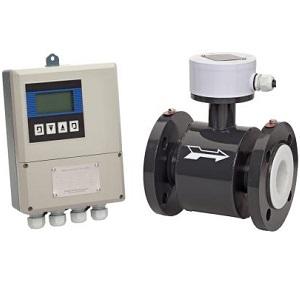

  • Remote style Electromagnetic flowmeterRemote style Electromagnetic flowmeter2019/06/24Compact style mag meter has integral display together with magnetic flow sensors which is easy for flow rate reading and parameter configurations. It is usually used when the operation environment is ...view
