Tri clamp (tri-clover) flow meter

2026/03/10 2019/07/10

Tri clamp fitting flow meter is mainly with stainless steel wet parts material also tri-clamp process connection for sanitary and hygienic purpose, in-line type flow sensor is widely used in food industry, such as dairy, food-processing, soft drinking industry and so on. Frequent request size including 1”, 1-1/2", 2.5 inch or even 3 inch sanitary flow meter sensor.

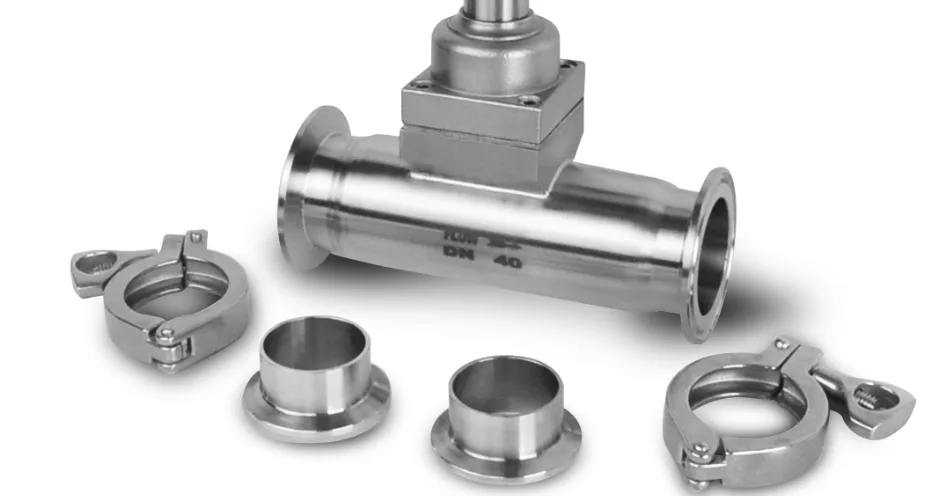

Tri-clamp connection for quick installation

Why use tri-clamp connection for flow meter?

1.Quick installation and disassembly:

Core advantage: This is the biggest advantage of tri-clamp connections. Simply loosen a few clamp bolts (usually single or double bolts) to quickly remove or install the flowmeter from the pipeline. This is much faster than tightening multiple bolts for flange connections, greatly saving time on installation, maintenance, cleaning, and calibration.

2.Easy to clean and free from dead corners:

Sanitary design: Tri-clamp connections typically comply with sanitary standards. Its inner surface is smooth and continuous (flush with the inner wall of the pipeline), with no protruding bolts or deep concave threads at the connection, reducing dead corners where bacteria, residues, or pollution may breed.

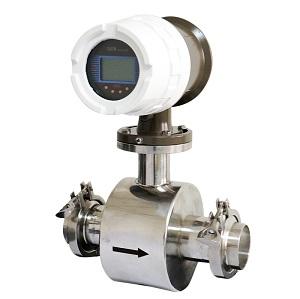

Electromagnetic flow meter with tri-clover process connection

Based on Faraday’s Law, Mag meters measure fluids with conductivity, such as juice, milk, vinegar, tap water.,etc. 1.5” tri-clover compatible sanitary and flexible process connections for easy mounting and CIP system. 1”,1-1/2" , 2 inch sanitary mag flow meter is often requested.

Turbine flow meter with tri-clover process connection

Volumetric digital flow meter for clean and low viscosity liquid measurement, such as wine, milk, beer, clean water, vegetable oil, edible oil, palm oil, fish oil. etc.It is constructed of stainless steel for a durable and economic flow metering in sanitary environments. 1” 1.5”, 2” and 3” tri clamp turbine flow meter is available here.

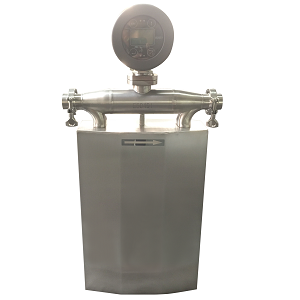

Coriolis mass flow meter and oval gear flow meter with tri clamp fitting

Coriolis meter and Oval meter is mainly used for high viscosity fluids measurement, such as sweeteners, edible oil, palm oil, honey, grease, tallow, fats and oil, syrup, chocolate, and molasses.,etc. Coriolis flow meter is a directly mass measurements instrument with high accuracy; it can show liquid temperature, pressure, mass flow rate, total mass flow, even concentration information.

Metal tube Rotameter with tri-clover process connection

Metal tube Rotameter with tri-clover connection is a kind of variable area flow meter, It is a reliable and stable technology flow meter indicator , can be used to measure gas or liquid, it can be made into simple mechanical pointer type or rotameter with flow transmitter. It is a kind of versatile flow meter for water, juice, milk, beer. etc

Vortex flow meter with tri clamp flow meter

1.5 inch vortex shedding flow meter with tri-clover fitting can be used to measure high temperature fluids, such as hot water, hot oil.,etc , besides, It is also a economical solution for milk, water ,drinking water . All stainless steel construction make is a reliable choice for the industry where sanitary and hygienic purpose is needed. Customer often request 25mm, 40mm, 50mm.65mm tri-clamp vortex flow meter.
