Oval Gear Flow Meter Working Principle

Accurately measuring liquid flow is a crucial task in the fields of fluid dynamics and industrial process control. Among the many technologies on the market, the oval gear flow meter is a particularly strong, accurate, and dependable option, particularly for difficult viscous fluid applications. Its working principle, as a kind of Positive Displacement (PD) flow meter, is elegant in its mechanical simplicity but powerful in its performance.

This thorough article explores the oval gear flow meter's construction, the mechanism that converts mechanical motion into accurate data, its main benefits, and its most popular industrial uses.

What is a Positive Displacement Flow Meter?

Before exploring the specifics of the oval gear design, it's essential to understand the category it belongs to. Positive Displacement flow meters are volumetric instruments that measure flow by repeatedly trapping a fixed, known volume of fluid and passing it from the inlet to the outlet. The total volume of fluid passed is the sum of these discrete parcels.

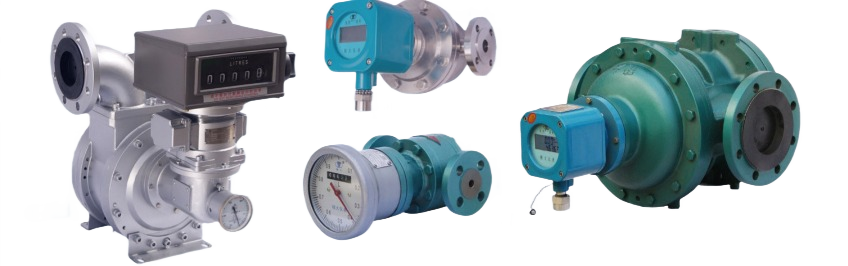

Unlike inferential meters that derive flow rate from velocity (like turbine flow meter or vortex flow meters), PD meters directly measure the volume. This fundamental difference is why they excel in accuracy and are often less affected by the fluid's properties, such as viscosity and density. The oval gear meter is one of the most popular and effective designs within the PD family.

Working Principle: A Mechanical Heartbeat

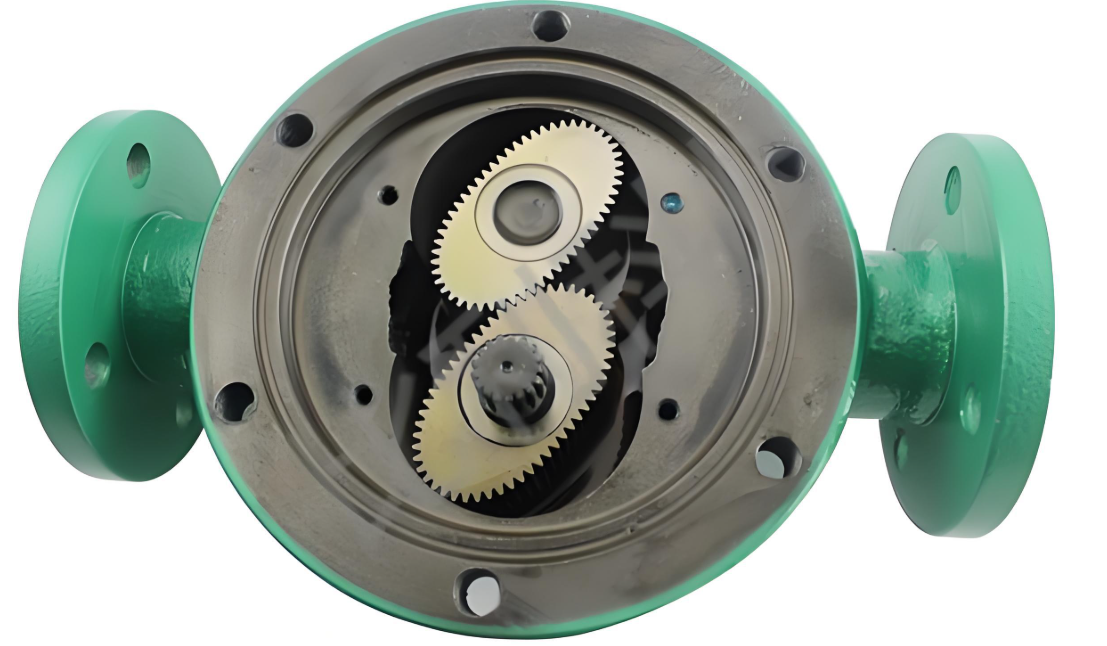

The "heart" of the oval gear flow meter consists of two precisely machined, interlocking oval-shaped gears (also called rotors) that are fitted into a close-tolerance measuring chamber. The operation is a continuous, four-step cycle that ensures a smooth and uninterrupted measurement process.

Here is a step-by-step breakdown of how it works:

Step 1: Fluid Entry and Initial Trapping

As the liquid enters the meter's inlet, the force of the flowing fluid creates a pressure differential that acts upon the gears. This pressure causes the first oval gear to rotate. As it rotates, a small, precisely known volume of liquid is trapped in the crescent-shaped space between the gear's outer edge and the inner wall of the measuring chamber.

Step 2: Rotation and Transfer

The first gear, now in motion, drives the second gear. As the first gear continues its rotation, it moves past the inlet port, sealing it off momentarily, and begins to sweep the trapped parcel of fluid towards the outlet port of the meter.

Step 3: Simultaneous Trapping by the Second Gear

While the first gear is discharging its fluid, the second gear is simultaneously performing the same trapping action on the opposite side of the chamber. It traps an identical, fixed volume of fluid in its own crescent-shaped space, ensuring the measurement process is continuous.

Step 4: Discharge and Cycle Repetition

The second gear then rotates and discharges its trapped volume of fluid, while the first gear begins a new trapping cycle. This synchronized, meshing motion of the two oval gears ensures that there is always a fluid seal between the inlet and outlet ports, preventing any unmeasured liquid from bypassing the system. The process repeats seamlessly, creating a smooth and continuous flow measurement.

For every full 360-degree rotation of the gear pair, a specific, fixed volume of liquid is displaced. Because this volume is known and constant, the meter's total volumetric throughput is simply the sum of these discrete volumes. The flow rate is therefore directly and linearly proportional to the rotational speed of the gears.

From Mechanical Motion to Digital Data

While the mechanical principle is straightforward, this motion must be converted into a usable electronic signal for modern control systems. This is achieved through a sophisticated sensor and transmitter system.

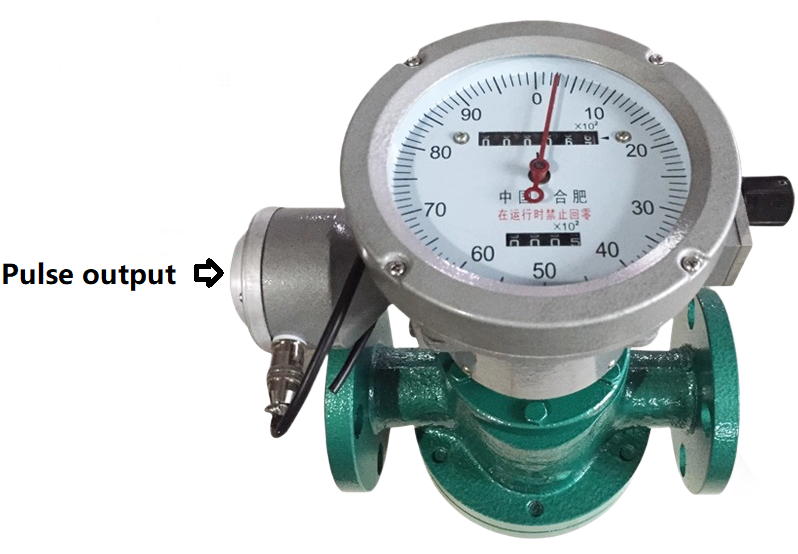

Embedded within one or both of the oval gears are powerful, permanent magnets. A sensor, typically a Hall effect sensor or a Reed switch, is mounted on the exterior of the meter's body, in close proximity to the rotating gears.

As the gears turn, the embedded magnets sweep past the sensor. Each time a magnet passes, it generates an electrical pulse. The design ensures that a precise number of pulses are generated for each full rotation of the gear pair.

A microprocessor-based transmitter or display then performs the final step. It counts these high-resolution pulses over a specific time interval. By knowing the exact volume displaced per pulse, the instrument can accurately calculate:

Flow Rate: The volume of liquid passing through the meter per unit of time (e.g., Liters per Minute or m3/h).
Totalized Volume: A cumulative count of the total volume of liquid that has passed through the meter since the last reset.

Key Advantages of the Oval Gear Flow Meter

The unique working principle of the oval gear meter provides several significant advantages:

* High Accuracy and Repeatability: Frequently attaining an accuracy of ±0.5% or higher, they are among the most accurate meters on the market. Excellent repeatability is ensured by their positive displacement nature.
* Ideal for Viscous Fluids: This is arguably their greatest strength. Unlike many other technologies (such as TUF flow meter or vortex flow meter )that falter with thick liquids, oval gear meters can accurately measure oils, fuels, grease, resins, and syrups with ease.



* Insensitivity to Flow Profile: They do not require straight pipe runs upstream or downstream, making them easy to install in tight spaces where other flow meters would be unsuitable.
* Excellent Low-Flow Measurement: They can maintain high accuracy even at very low flow rates.
* No Power Required (for Mechanical type oval gear flow meter): Simple models can be equipped with a purely mechanical register and display, making them perfect for remote or hazardous locations where power is unavailable.

Common Applications and Industries

The versatility and robustness of oval gear flow meters make them a preferred choice across numerous industries:

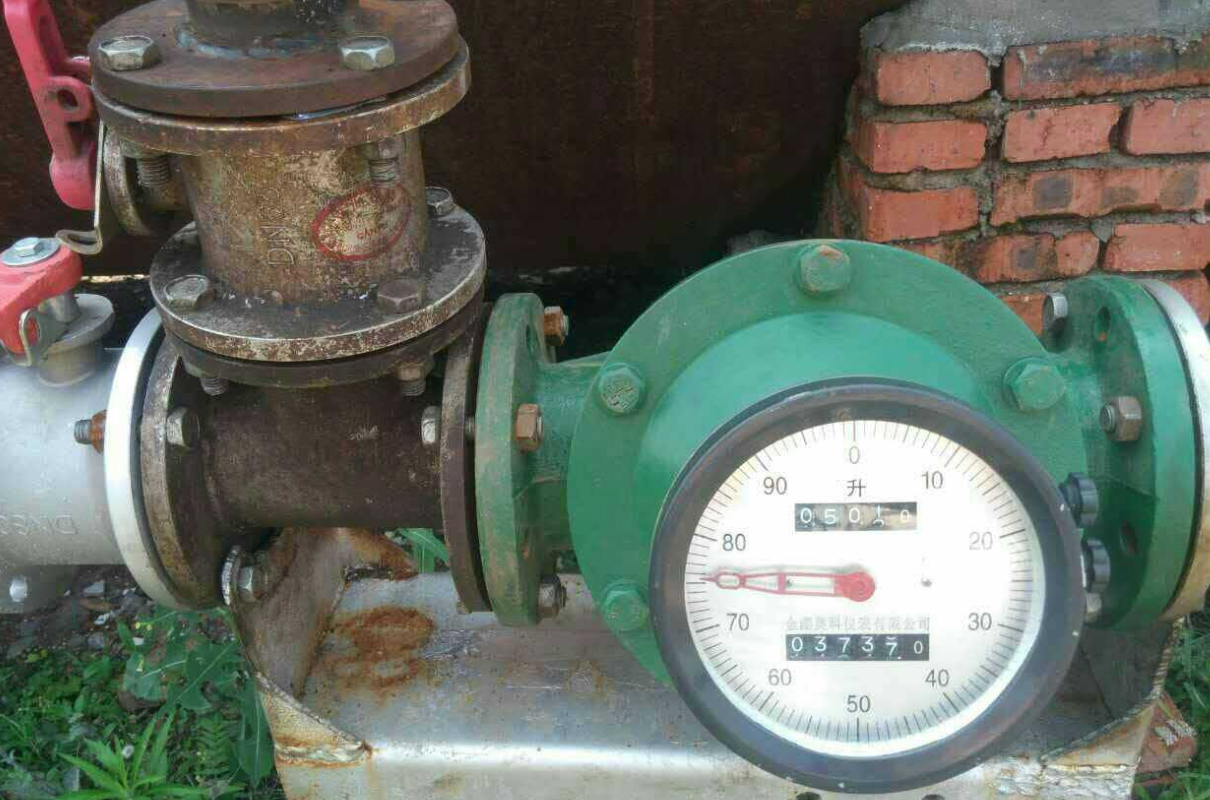

* Fuel and Oil: Dispensing of gasoline, diesel, and kerosene; fuel consumption monitoring for boilers and generators; measurement of lubricating oils.
* Chemicals: Accurate dosing and injection of additives, catalysts, and polymers.

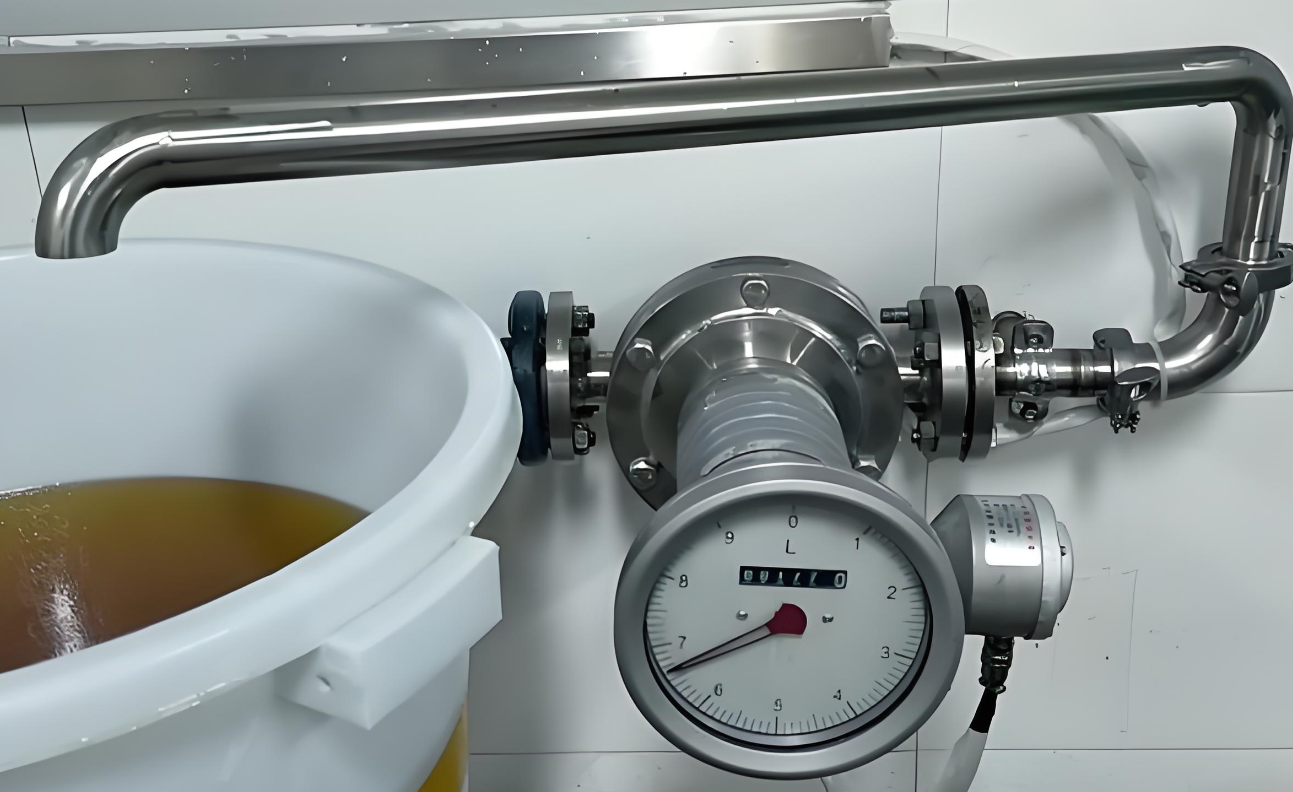

* Food and Beverage: Measuring viscous ingredients like syrups, chocolate, and vegetable oils.
* Pulp and Paper: Handling chemical additives and coatings.
* Custody Transfer: High-accuracy measurement for billing and inventory control of valuable liquids.

Limitations to Consider

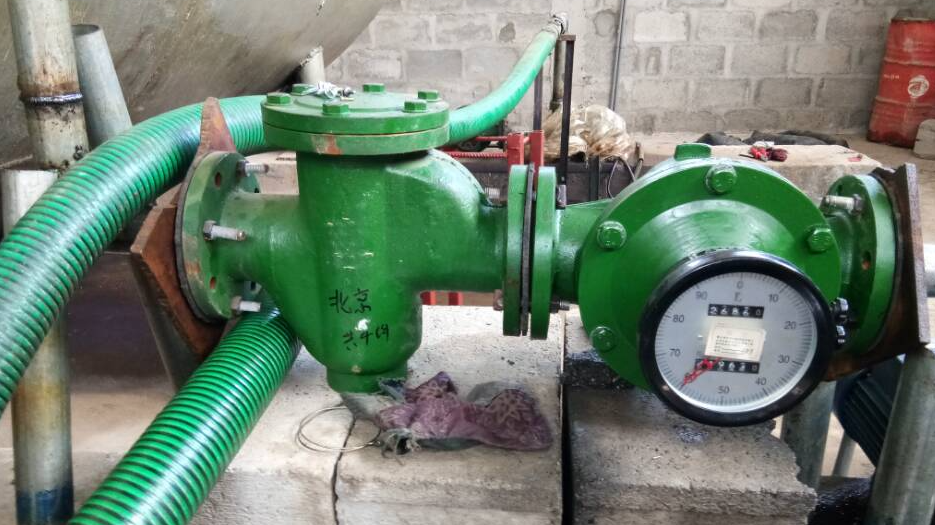

While incredibly effective, oval gear meters have two main limitations. First, they are intended for clean liquids only. Abrasive particles or solids can cause wear and damage to the precision-machined gears, compromising accuracy. Proper filtration is often a prerequisite. Second, they introduce a higher pressure drop compared to non-intrusive meters like magnetic or ultrasonic types.

Conclusion

The oval gear flow meter's operation is proof of the strength of creative mechanical engineering. Its interlocking rotors allow it to measure discrete volumes of fluid directly, offering a level of accuracy and dependability that is hard to match, especially for difficult and viscous liquids. Its straightforward, sturdy design offers outstanding value and confidence in crucial flow measurement applications while guaranteeing a long service life with little maintenance. The oval gear flow meter continues to be a top choice for any process that requires accuracy, reliability, and adaptability.
Below video can clearly see how oval gear flow meter work
