Why Gas Flow Measurement Matters in Today's Economy
Gas flow measurement is an important part of almost every part of the modern economy. The precise measurement of gases is very important for a number of reasons, including keeping costs down in natural gas distribution, making sure chemicals are safe to handle, and making sure products are of high quality in manufacturing. But gases are different from liquids in that their volume changes a lot with changes in temperature and pressure. This means that choosing the right
gas flow meter is a very important choice that will have a big effect on safety, efficiency, and profits.
The first step to making any industrial process that uses gas work better is to
learn about gas flow meters and why they are important. This complete guide will be your go-to source for everything you need to know about gas measurement. It will cover the basic principles, the different technologies available, how to solve specific application problems, and how to choose the best gas flow instrument for your needs.
Why is it important to measure gas flow accurately?
Many industrial tasks depend on accurate gas flow data. The main advantages of precise flow measurement are:
• Cost Control and Energy Management: Gas is an expensive utility for things like compressed air systems or natural gas use. Accurate measurement helps find leaks, allocate costs correctly, and make the best use of energy to cut down on waste.
• Process Efficiency & Product Quality: Many processes, such as combustion control, gas blending, or chemical reactions, depend on the precise flow rate of specific gases to ensure optimal performance and consistent end-product quality.
• Safety: Keeping an eye on the flow of flammable or toxic gases is important to keep dangerous situations from happening. This includes
gas monitoring, scrubber balancing, and nitrogen balancing in various industrial settings.
• Environmental Compliance: Laws about greenhouse gas emissions say that flue gases and other exhausts must be measured and reported correctly.
The Core Principle: Actual vs. Standard Flow (Volumetric vs. Mass)
The most critical concept in
what is a gas flow meter and gas flow meter types is understanding the difference between measuring volume and measuring mass. This is one of the
4 factors to consider when choosing a gas flow meter.
Actual (Volumetric) Flow
Volumetric flow meters measure the amount of gas that is going through the meter at the temperature and pressure that it is actually operating at (for example, in ACFM or m³/hr). The issue is that this reading can't be compared. A cubic meter of gas at 1 bar of pressure has a lot fewer molecules (less mass) than a cubic meter of gas at 10 bar.
Standard Flow (like Nm3/h, SCFM , SCCM)
Because of this, gas flow is almost always changed to a standard temperature and pressure (STP or NTP). This standardized volumetric flow rate (in SCFM,

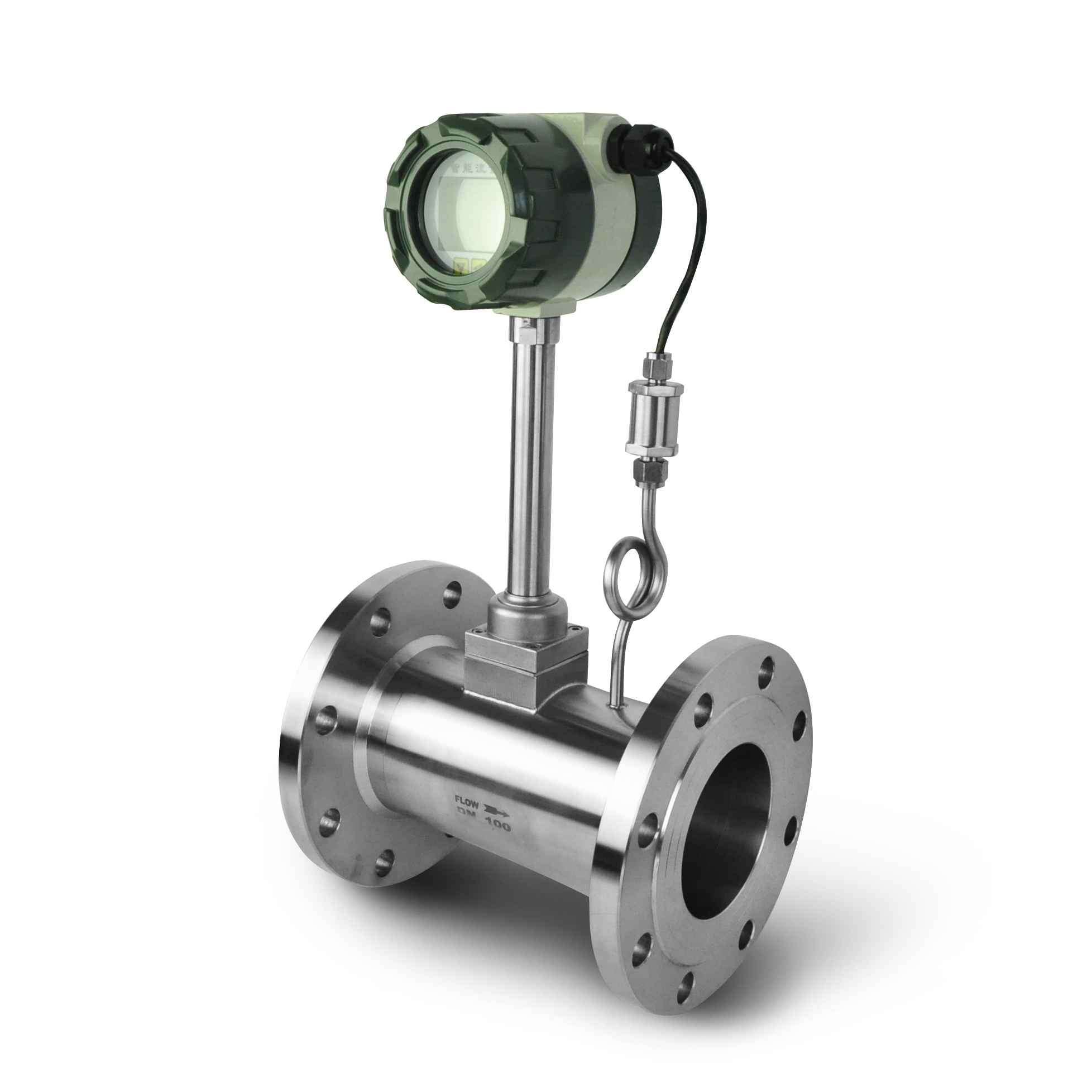

SCCM or Nm³/hr, for example) shows how much gas is flowing in terms of mass. Thermal mass meters ,turbine flow meter with temperature and pressure compensation, or vortex flow meter with temperature and pressure compensation can have the function to measure standard flow. Their readings are not affected by changes in process conditions. Volumetric meters can also give a mass flow reading, but they need extra sensors for pressure and temperature, as well as a flow computer to do the math.
Related products
For more insights on flow unit conversions like
m³/h, Nm³/h, and Sm³/h, read our Ultimate Guide to Gas Flow Rate Units
A Complete Guide to Gas Flow Meter Technologies
Choosing the right technology is key. There are many
gas flow meter types & gas flow measurement techniques, each with its own
pros and cons.

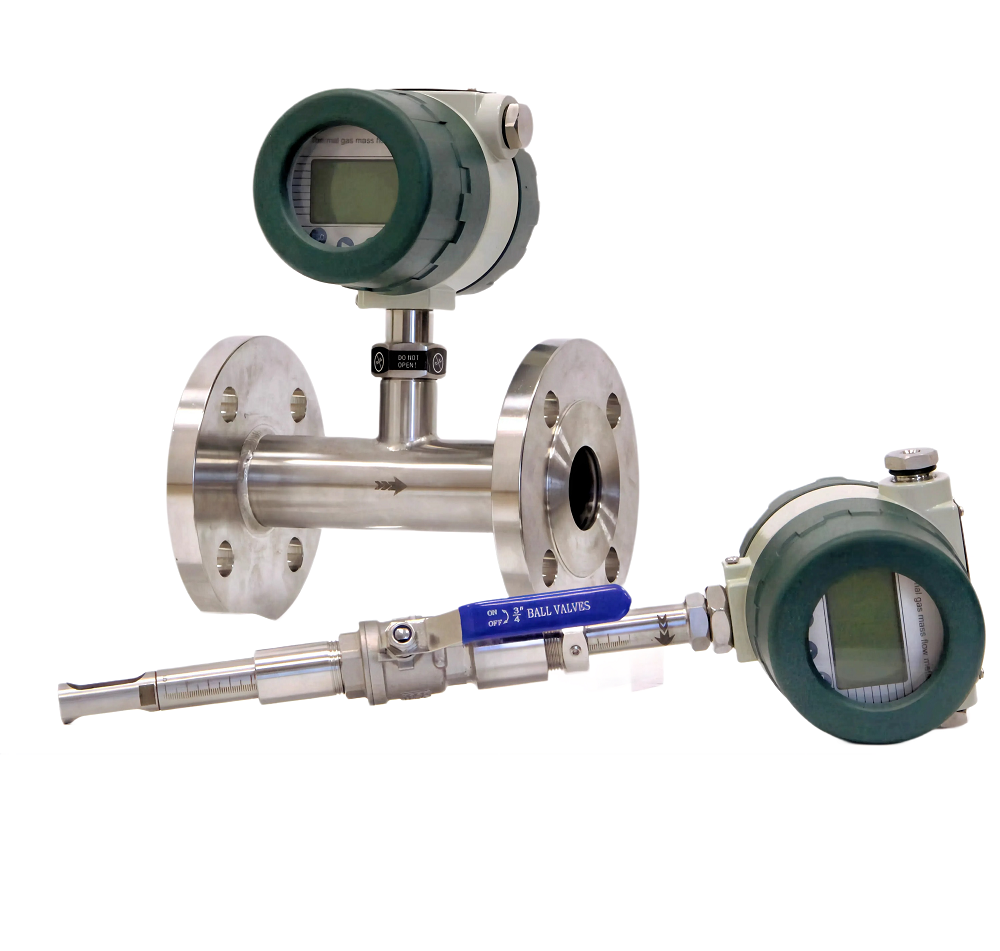

1. Flow Meters for Thermal Mass
The industry standard for measuring the direct mass flow of different type gases is thermal mass flow meters.
• The meter works by using two temperature sensors. One is kept at a constant temperature difference above the other. The gas flow cools things down, and the amount of power needed to keep this temperature difference is directly related to the mass flow rate of the gas.
•
Advantages: Measures mass flow directly without needing P&T compensation, high accuracy at low flow rates, and low-pressure drop, a key consideration explored
in the comparison of gas turbine and thermal mass flow meter pressure loss.
• Disadvantages: Better suitable for clean, dry gases, as moisture or dirt can affect the gas flow sensor.
• Best For: This technology is ideal for a wide range of
thermal mass flow meter applications, including
natural gas sub-metering, compressed air monitoring, and measuring specific gases like
CO₂, nitrogen, argon, and
biogas. They can also be configured as a
thermal mass flow controller.

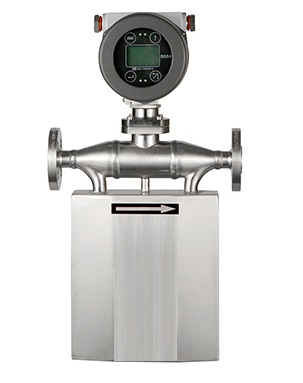

2. Corioli Mass Flow Meters for Gas
The Coriolis meter is the often the good choice for the most accurate results and for measuring valuable or hard-to-measure gases.
• Principle: It measures mass flow directly by sensing the fluid's twisting force (Coriolis effect) as it moves through vibrating tubes.
• Pros: Most accurate, measures mass flow directly, not affected by gas composition, very suitable for high pressure gas measurement .
• Disadvantages: They cost the most at first and can have a bigger pressure drop than thermal meters, also not good for low pressure or low density gas measurement.
•
Best For: A Coriolis gas flow meter is perfect for custody transfer of gases like natural gas and
CNG, and for safely measuring challenging, toxic gases like
chlorine. It's also a leading choice in
nitrogen and helium flow measurement applications.

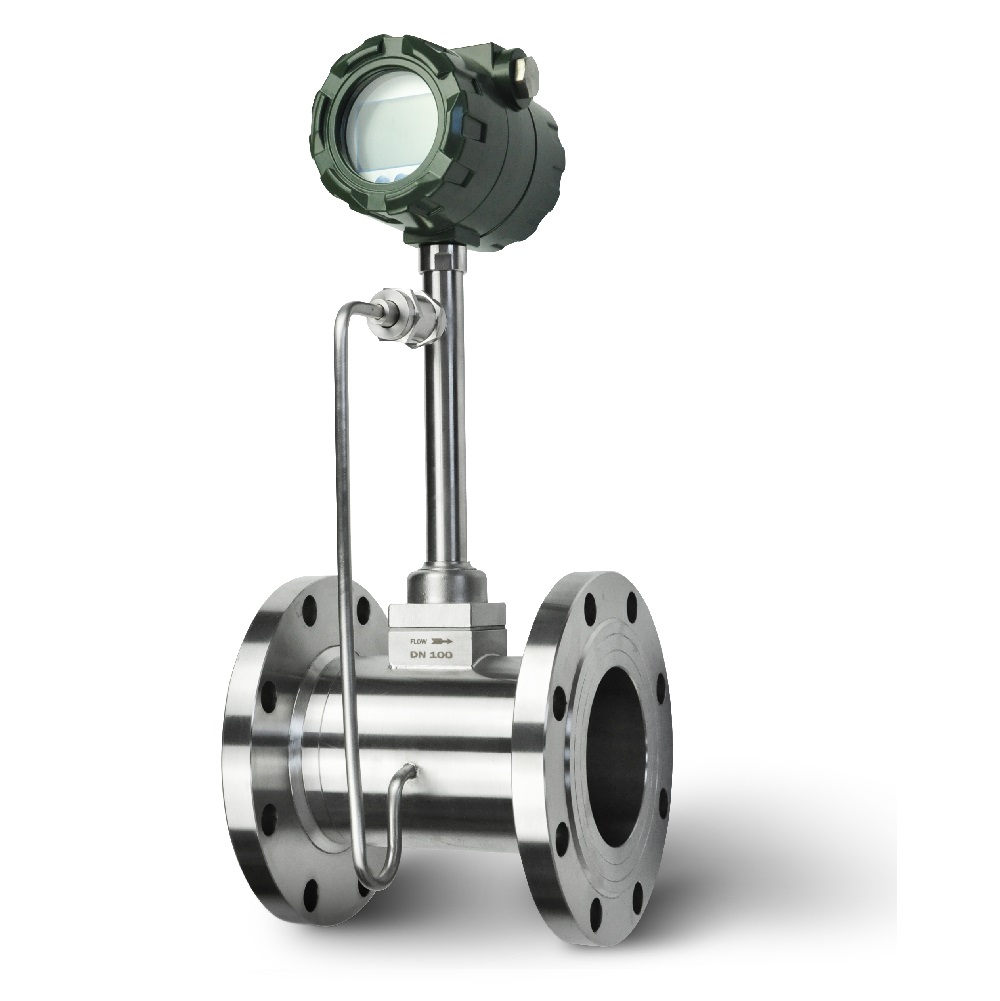

3. Vortex Flow Meters For Gas
Vortex flow meters are extremely robust and versatile, making them a popular choice for general-purpose gas and steam measurement.
• Principle: A bluff body in the flow path makes vortices (eddies) at a rate that is directly related to the speed of the gas.
• Pros: It doesn't have any moving parts, it's very durable, it can handle high temperatures and pressures well, and it can measure a wide range of gases. A vortex gas flow meter is a plant favorite because of
many advantages of vortex gas flow meter.
• Drawbacks: It needs a minimum flow velocity to work and long, straight pipe runs, not suitable for low flow gas measurement.
• Best For: Utility uses like a
vortex air flow meter or measuring steam and other process gases where accuracy isn't the most important thing.

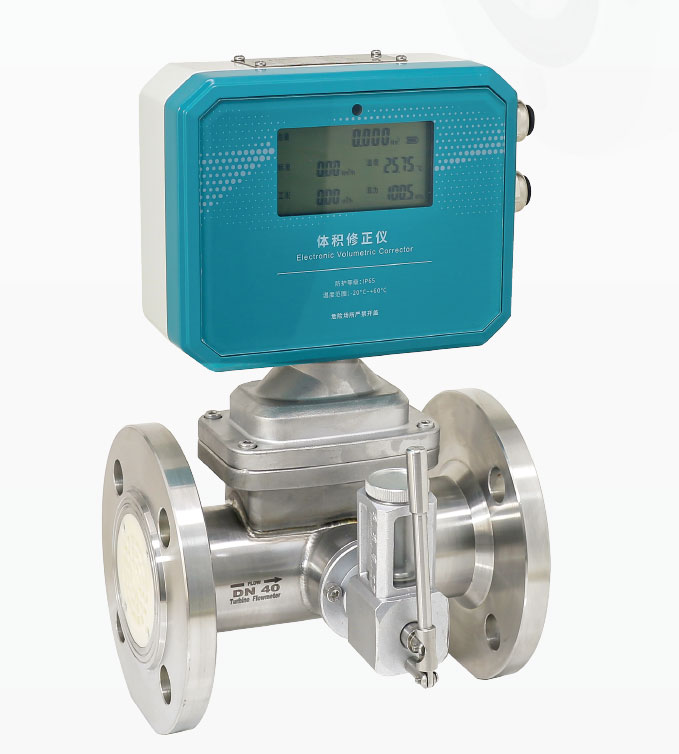

4. Gas Turbine Flow Meters
Turbine meters are the traditional choice for high-accuracy custody transfer of natural gas. For an overview, it's helpful to
know something about gas turbine flow meters.
• Principle: The gas flow spins a multi-bladed rotor (turbine). The rotational speed is proportional to the gas velocity.
• Advantages: High accuracy and repeatability, well-understood technology, often required by contractual standards for gas billing.
• Disadvantages: Moving parts require maintenance, can be damaged by dirty or wet gas, and performance is affected by pressure/temperature changes if not compensated.
• Best For: Custody transfer of clean, dry natural gas. For specific models, see our
SGW-D series gas turbine flow meter with temp and pressure correction.

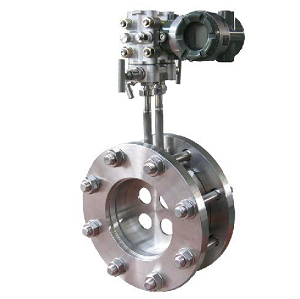

5. Flow Meters for Differential Pressure (DP)
DP meters are a tried-and-true way that works well in very harsh conditions.
• Principle: A blockage, like an orifice plate or Annubar, causes a drop in pressure. A transmitter measures this drop and compares it to a flow rate.
• Pros: It can handle very high temperatures and pressures, works with any gas, and is good for very large pipes.
• Cons: Less accurate, a limited turndown ratio, and it causes a permanent drop in pressure in the line.
• Best For: Measuring dirty or hard-to-reach gas streams, like wet biogas or raw
flue gas, often in big ducts.

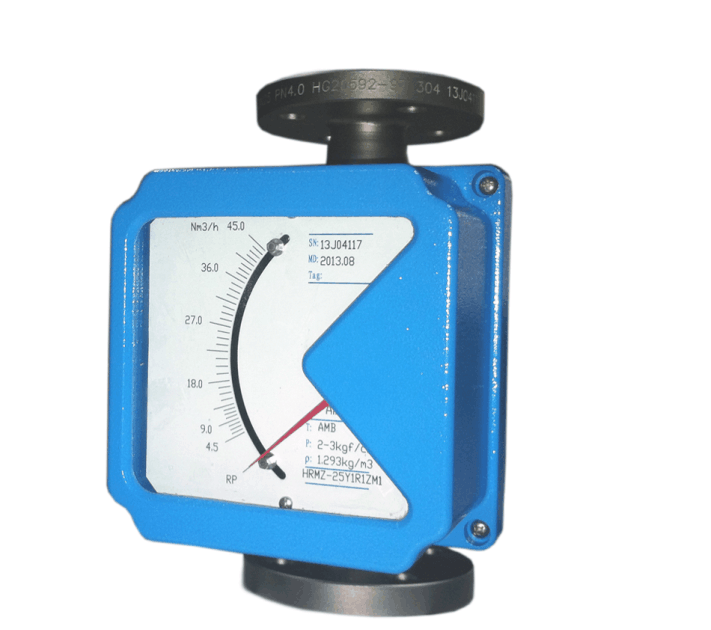

6. Metal Tubes Rotameter for Gas (Variable Area)
If you just need a simple, local indication of gas flow rate and don't need an electronic signal, a rotameter is a good choice. However,silverinstruments.com also develops rotameter with transmtiters.
• The idea is that gas moving up through a tapered tube lifts a float. The float's height is the same as the flow rate.
• Pros: It's easy to use, doesn't need any outside power, and is made of all metal, so it's strong.
• Disadvantages: less accurate and only shows local flow rate information (unless a transmitter is added), needs gas fixed temperature and pressure value to produce .
• Best for: Purging gas applications, monitoring equipment skids locally, and showing general gas flow with a gas flow rotameter.
7. Flow Meters that use sound waves
Ultrasonic meters are a high-tech way to measure things, especially in big pipes.
• How it works: It measures how long it takes for an ultrasonic pulse to move with and against the flow of gas. You can figure out the gas velocity by looking at the time difference.
• Pros: No blockage or pressure drop, can be very precise, and works best with big pipes.
• Cons: It costs a lot and is sensitive to dirt and moisture in the gas.
• Best For: Custody transfer of large-diameter natural gas pipelines.
Finding Solutions to Specific Problems in Gas Measurement
Gases that eat away at things
To measure corrosive gases like wet chlorine, hydrogen sulfide (H₂S), or ozone, you need to choose the right materials very carefully. A thermal mass flow meter with a Hastelloy sensor is a common choice. A Coriolis meter made of rare alloys is the best choice for very extreme situations.
High and Low Pressure
Most standard applications use low pressure, but some processes, like dispensing compressed natural gas (CNG) or moving hydrogen, use very high pressure. The meter's mechanical construction and pressure rating are very important in these cases.
Big Ducts and Low Flow Rates
An insertion gas flowmeter is often the best and cheapest way to measure flow in big pipes or ducts. On the other hand, a specialized low flow gas flow meter is needed to accurately measure very small amounts of gas in a laboratory gas flow meter used for research and development.
Installation: Close vs. Far
Most technologies come in a small, all-in-one package. For applications with high temperatures or places that are hard to get to, though, a remote read gas meter with a separate sensor and transmitter is the best choice.
Gas Flow Meter Uses in Different Fields
Almost any business can fix problems with the right electronic gas flow meter.
Natural Gas and Fuel Gases
This is the biggest application, from the wellhead to the end user. For custody transfer, you should use turbine or ultrasonic natural gas flow meters. For sub-metering, thermal mass meters are best. If you need to measure CNG and LPG gas, Coriolis meters are the best option. We have a range of sizes, from a 2-inch natural gas meter to an 8-inch gas turbine flow meter and bigger.
Gases for Industry and Special Purposes
For manufacturing to work, industrial gases like nitrogen, argon, and carbon dioxide must be measured very accurately. This is a common use for thermal flow meters in measuring gas flow, like keeping an eye on argon gas flow.
Monitoring Compressed Air
Using compressed air costs a lot of money. Thermal mass flow meters are the best way to keep an eye on how much energy is being used, find leaks, and divide up costs in a building.
Biogas and the environment
It is necessary to measure flare gas and flue gas in order to follow environmental rules. This is a good job for thermal mass meters. They are also the standard for measuring how much biogas flow meters put out in digesters.
